- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
250A-2 TL 3/4 FB

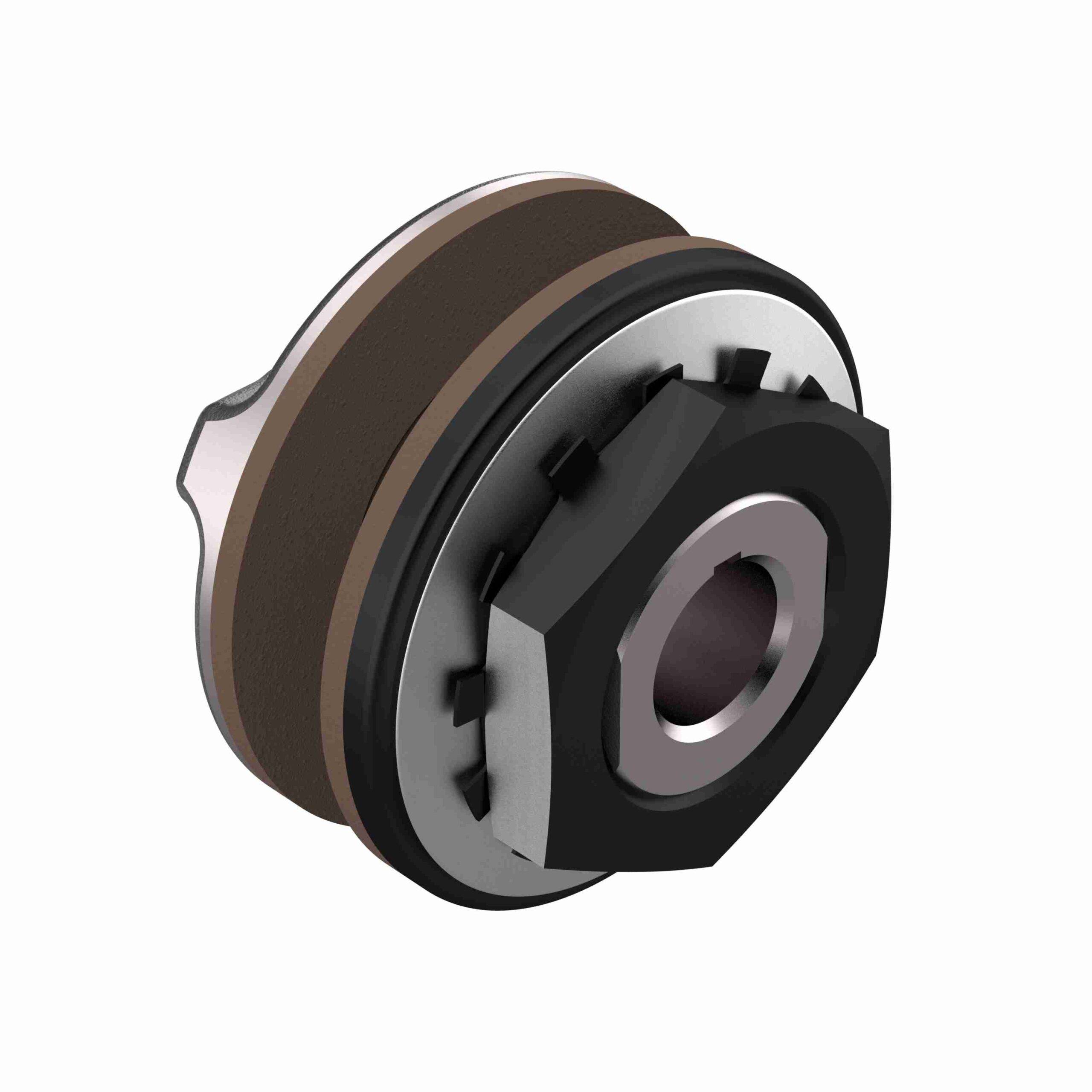

Morse Torque Limiter Model – 250A – 250A-2 TL 3/4 FB
$315.86
Out of stock
Out of stock
| Outside Diameter (mm): | 63.5 mm | Recovery Style: | Automatic |
|---|---|---|---|
| Bore Shape: | Straight Bore | Total Length (in): | 1.875 in |
| Sensor Plate: | No | Reset Type: | Automatic |
| Torque [Min] (N-m): | 13.6 | Outside Diameter (in): | 2.5 in |
| Backlash: | Zero | Bore Size (in): | 0.75 in |
| Detection Method: | Friction Pad | Type: | Torque Overload Devices |
| Maximum Bore w/ Key, Setscrew: | 0.875 | Series / Model: | 250A |
| Disconnect Method: | Friction Pad | Sprocket Bore Diameter: | 1.627/1.629 |
| Trip Torque [Min]: | 10 | Unit Accuracy: | 0.25 |
| Total Length (mm): | 47.625 mm | Torque Capacity [Max] (lb-ft): | 40 |
| Torque Capacity [Min] (lb-ft): | 10 | Torque [Max] (N-m): | 74.8 |
| Product Type: | Torque Limiter | Max RPM: | 1, 400 |
| Bore (Max) (in): | 0.75 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Finished w/ Keyway | Minimum Sprocket Teeth: | #35 (25 Teeth) |
| #50 (16 Teeth) | 1 | 662288478836 | 1 |
| 1.00 LB | 1 | 2.50 Inches | 1 |
| 1.88 Inches | 1 | 2.45 Inches | 1 |
