- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
50 O/L

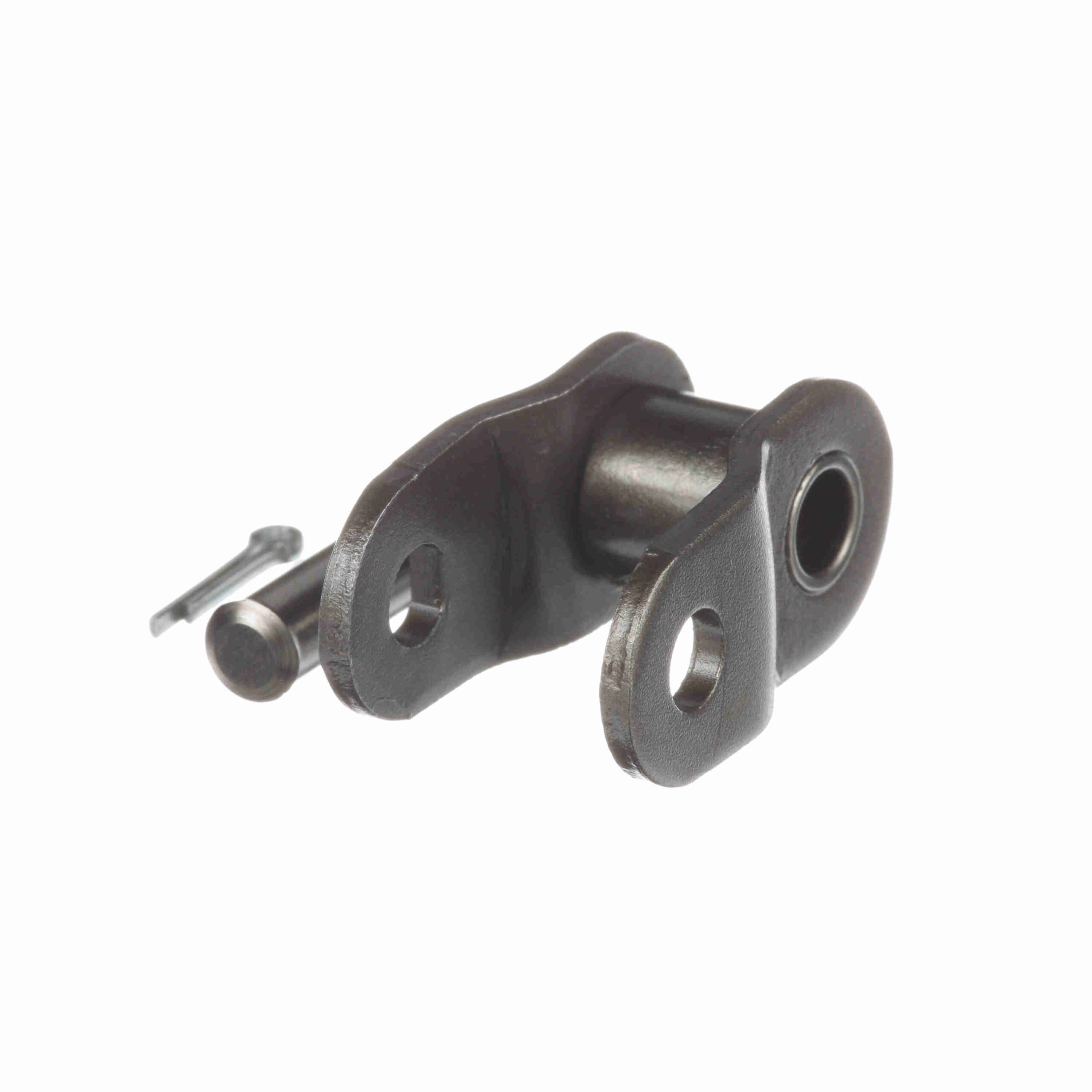

Morse Standard Roller Chain Offset Link – 50 O/L
$5.66
Out of stock
Out of stock
| Single Pitch Offset Link: | Cottered | Plate Thickness: | 0.08 |
|---|---|---|---|
| Material: | Steel | Chain Size: | 50 |
| Side Plate Cfg.: | Hourglass | Number of Strands/Width: | 1 |
| Average Ultimate Tensile Strength (psi): | 6, 100 | Centerline to Outside of cotter Pin: | 0.46 |
| Pin Diameter (in): | 0.2 in | Width Over Pins/Total Width: | 0.79 |
| Roller Diameter (in): | 0.4 in | Centerline to Opposite cotter Pin Side: | 0.395 |
| Inside Plate Height: | 0.584 | Roller Width (in): | 0.375 in |
| Total Length: | 10 FT ft | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 0.625 in |
| Link Type: | Offset Link | UPC: | 662288395515 |
| Weight: | 0.04 LB | Packaged Length: | 1.95 Inches |
| Packaged Width: | 3.00 Inches | Packaged Height: | 0.80 Inches |
| HTC: | 7315.19.0000 | Country of Origin: | Taiwan, Republic of China |
