- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
50-2R 50FT

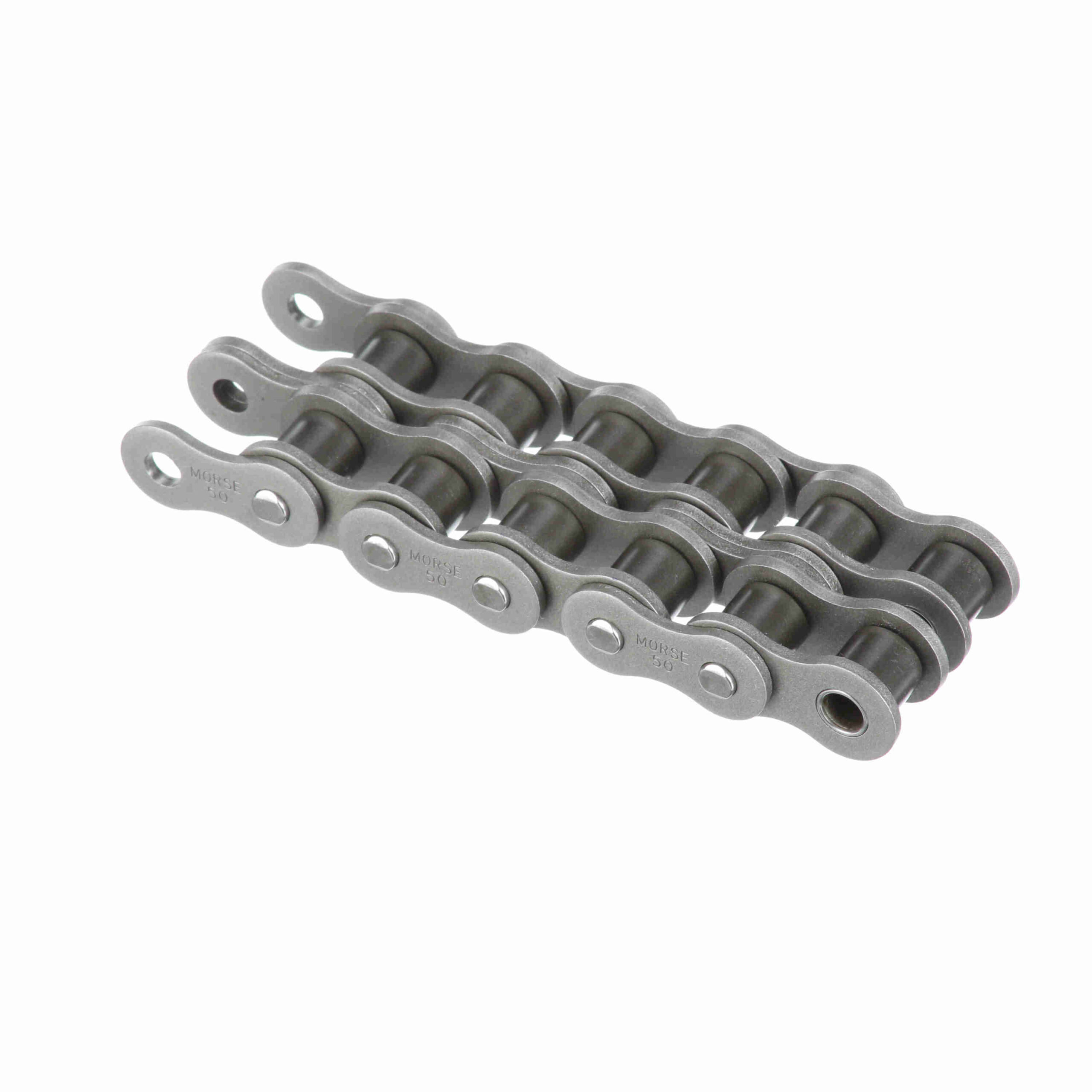

Morse Standard Riveted Roller Chain – 50-2R 50FT
$35.78
Out of stock
Out of stock
| Material: | Steel | Width Over Pins/Total Width: | 1.507 |
|---|---|---|---|
| Number of Strands/Width: | 2 | Chain Size: | 50 |
| Average Ultimate Tensile Strength (psi): | 12, 200 | Pin Diameter (in): | 0.2 in |
| Number of Connecting Links Included: | 5 | Roller Diameter (in): | 0.4 in |
| Centerline to Outside of cotter Pin: | 0.832 | Chain Construction: | Riveted |
| Inside Plate Height: | 0.584 | Centerline to Opposite cotter Pin Side: | 0.753 |
| Plate Thickness: | 0.08 | Roller Width (in): | 0.375 in |
| Center Plates: | Loose Fit, Press Fit Optional | Side Plate Cfg.: | Hourglass |
| Total Length: | 50 FT ft | Product Type: | Roller Chain |
| Chain Pitch (in): | 0.625 in | Chain Type: | Standard |
| Coating: | Uncoated | Measurement System: | Imperial |
| Standard Met: | ANSI B29.1 | Transverse Pitch: | 0.713 |
| Pin Length - Riveted: | 1.507 | UPC: | 662288467915 |
| Weight: | 1.49 LB | Packaged Length: | 14.00 Inches |
| Packaged Width: | 13.90 Inches | Packaged Height: | 14.20 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
