- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4C50SD

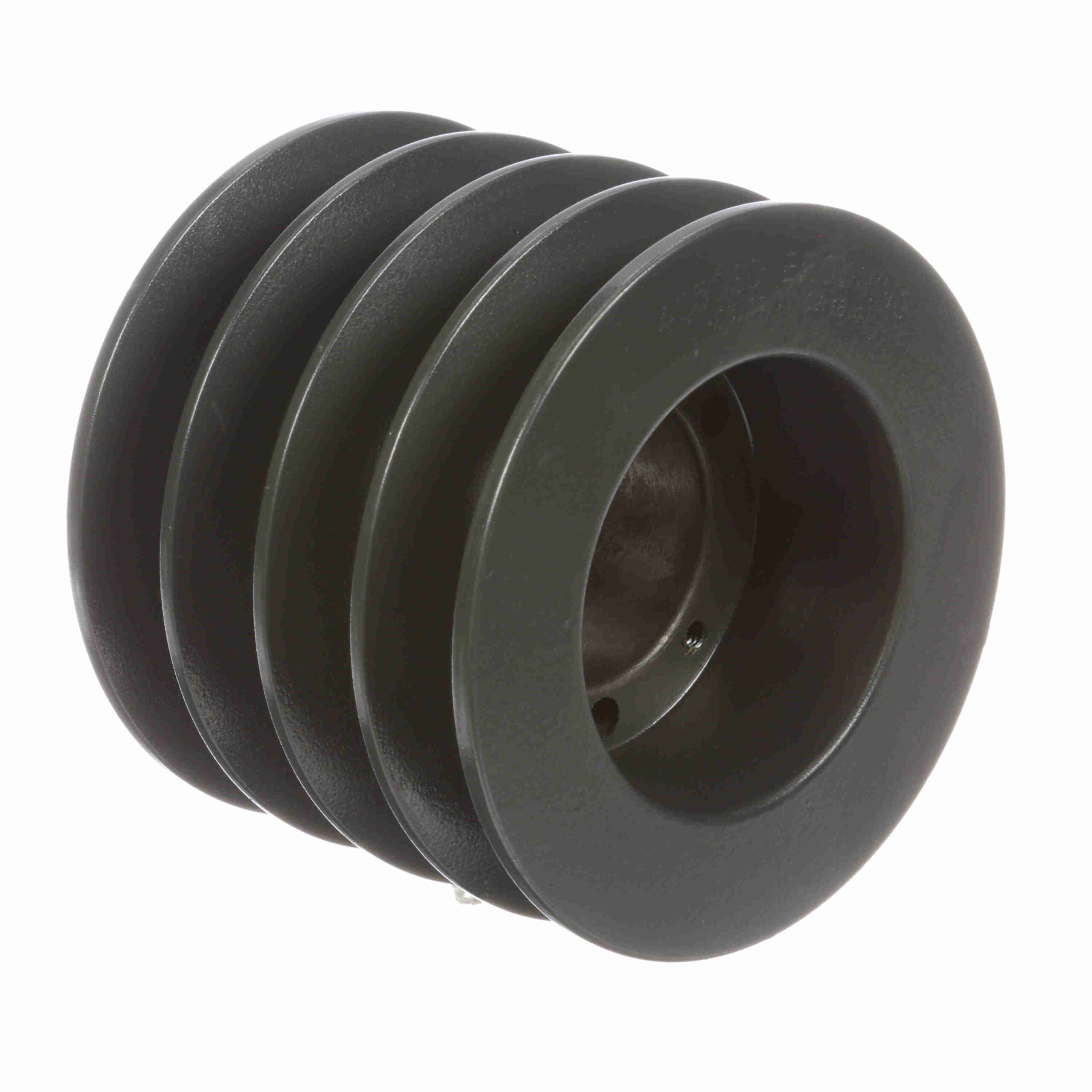

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4C50SD
$1,110.37
Out of stock
Out of stock
| Pitch Diameter (C): | 5.4 | Datum Diameter (C): | 5 |
|---|---|---|---|
| Bushing Used: | SD | Pulley Material: | Cast Iron |
| Model Name: | 4C_LG_Sheavemaster | Number of Grooves: | 4 |
| Outside Diameter (in): | 5.4 in | Material: | Cast Iron |
| Belt Section: | C | Bore (Min) (in): | 0.5 in |
| Product Type: | Multiple Sheaves | Bore Type: | QD Bushed |
| Bushing Bore Range: | 0.500 - 2.000 | UPC: | 662289379347 |
| Weight: | 10.10 LB | Packaged Length: | 6.70 Inches |
| Packaged Width: | 6.80 Inches | Packaged Height: | 5.00 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
