- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Helical Gears are quieter than spur gears and give maximum smoothness on parallel shafts
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS550

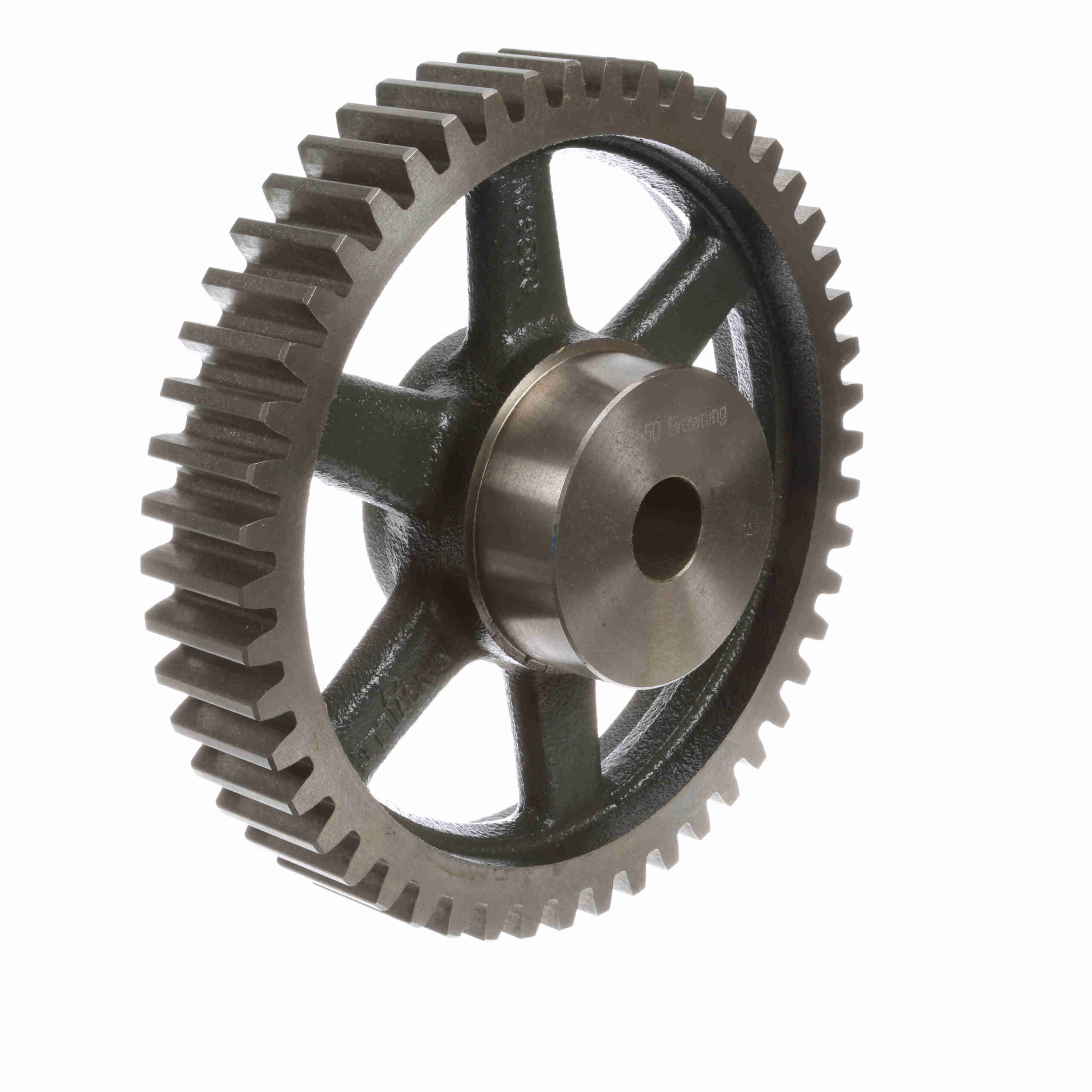

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 5 DP – NCS550
Out of stock
| Outside Diameter (in): | 10.4 in | Number of Teeth/Threads: | 50 |
|---|---|---|---|
| Diametral Pitch: | 5 | Material: | Gray Iron |
| Face Width (in): | 1.75 in | Pitch Diameter (in): | 10 in |
| Hub Diameter (in): | 3.75 in | Pressure Angle: | 14.5 |
| Hub Projection (in): | 1.25 in | Bore (Max) (in): | 2.25 in |
| Bore (Min) (in): | 1.1875 in | Length Through Bore (in): | 3 in |
| Bore Type: | Minimum Plain Bore | Hub Type: | Type B |
| Bushing Bore size (in): | 1.1875 to 2.2500 in | Bore Size (in): | 1.1875 in |
| Product Type: | Spur Gear | Overall Length (in): | 3 in |
| Standard Met: | AGMA | Gear Construction: | Spoked |
| UPC: | 662289042272 | Weight: | 20.67 LB |
| Packaged Length: | 10.75 Inches | Packaged Width: | 10.70 Inches |
| Packaged Height: | 3.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
