- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4B250R

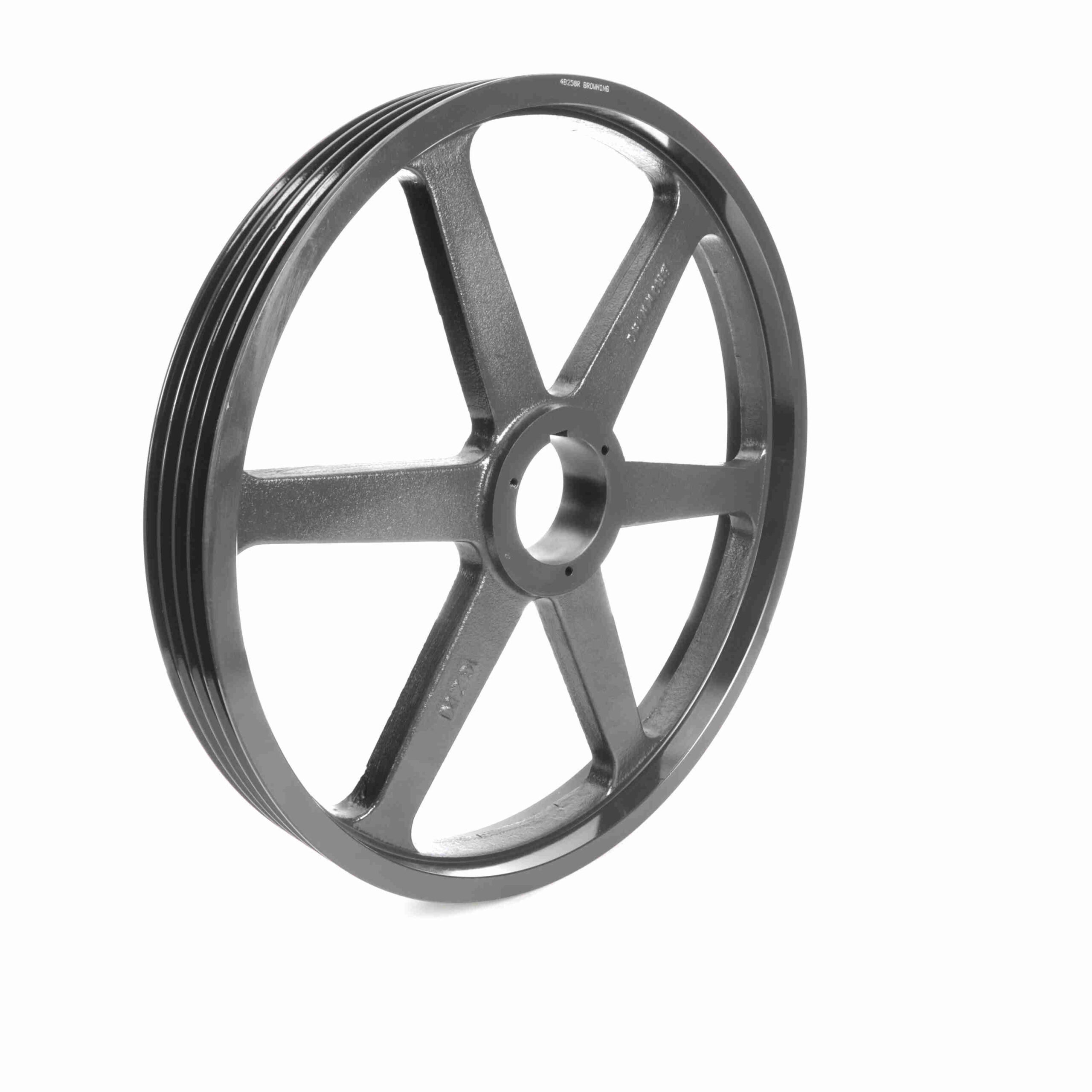

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4B250R
$1,378.67
Out of stock
Out of stock
| Bushing Used: | R1 | Number of Grooves: | 4 |
|---|---|---|---|
| Number of Flanges: | 5 | Pulley Material: | Cast Iron |
| Number of Hubs: | 1 | Datum Diameter (A): | 24.6 |
| Material: | Cast Iron | Datum Diameter (B): | 25 |
| Outside Diameter (in): | 25.35 in | Overall Length (in): | 3.796875 in |
| Belt Type: | Classic or 358 | Pitch Diameter (A): | 24.8 |
| Pitch Diameter (B): | 25.3 | Product Type: | Multiple Sheaves |
| Belt Section: | A, B | Bore (Min) (in): | 1.125 in |
| Bore Type: | Split Taper Bushed | Keyway Size: | .750 |
| Bushing Bore Range: | 1.125 - 3.750 | Face Width (in): | 3.25 |
| UPC: | 662289115488 | Weight: | 71.00 LB |
| Packaged Length: | 25.35 Inches | Packaged Width: | 25.35 Inches |
| Packaged Height: | 3.25 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
