- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3Q5V52

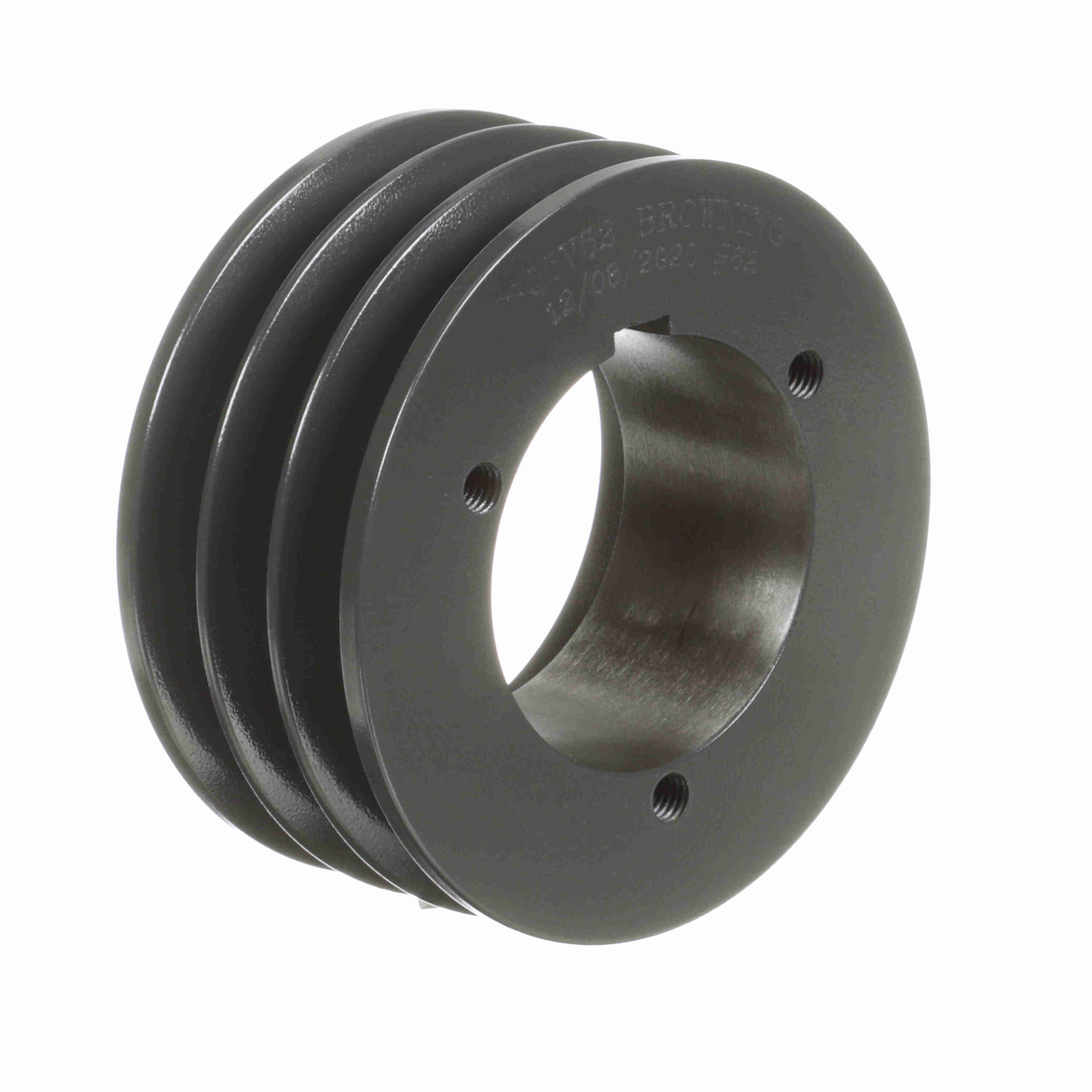

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3Q5V52
Out of stock
| Pitch Diameter (5V): | 5.1 | Material: | Cast Iron |
|---|---|---|---|
| Number of Grooves: | 3 | Overall Length (in): | 3.453125 in |
| Outside Diameter (in): | 5.2 in | Bushing Used: | Q1 |
| Pulley Material: | Cast Iron | Bore (Min) (in): | 0.75 in |
| Product Type: | Multiple Sheaves | Belt Section: | 5V |
| Bore Type: | Split Taper Bushed | Face Width (in): | 2.375 |
| Pulley Construction: | Plain | Bushing Bore Range: | 2.6875 - 2.6875 |
| Overall Width (in): | 3.40625 | Keyway Size: | .500 |
| UPC: | 662289546299 | Weight: | 6.10 LB |
| Packaged Length: | 6.06 Inches | Packaged Width: | 6.06 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
