- Unmatched Quality and Performance in Morse Brand Chain
- 304 Series Stainless Steel for the most corrosive environments
- Available from Stock
40SS O/L

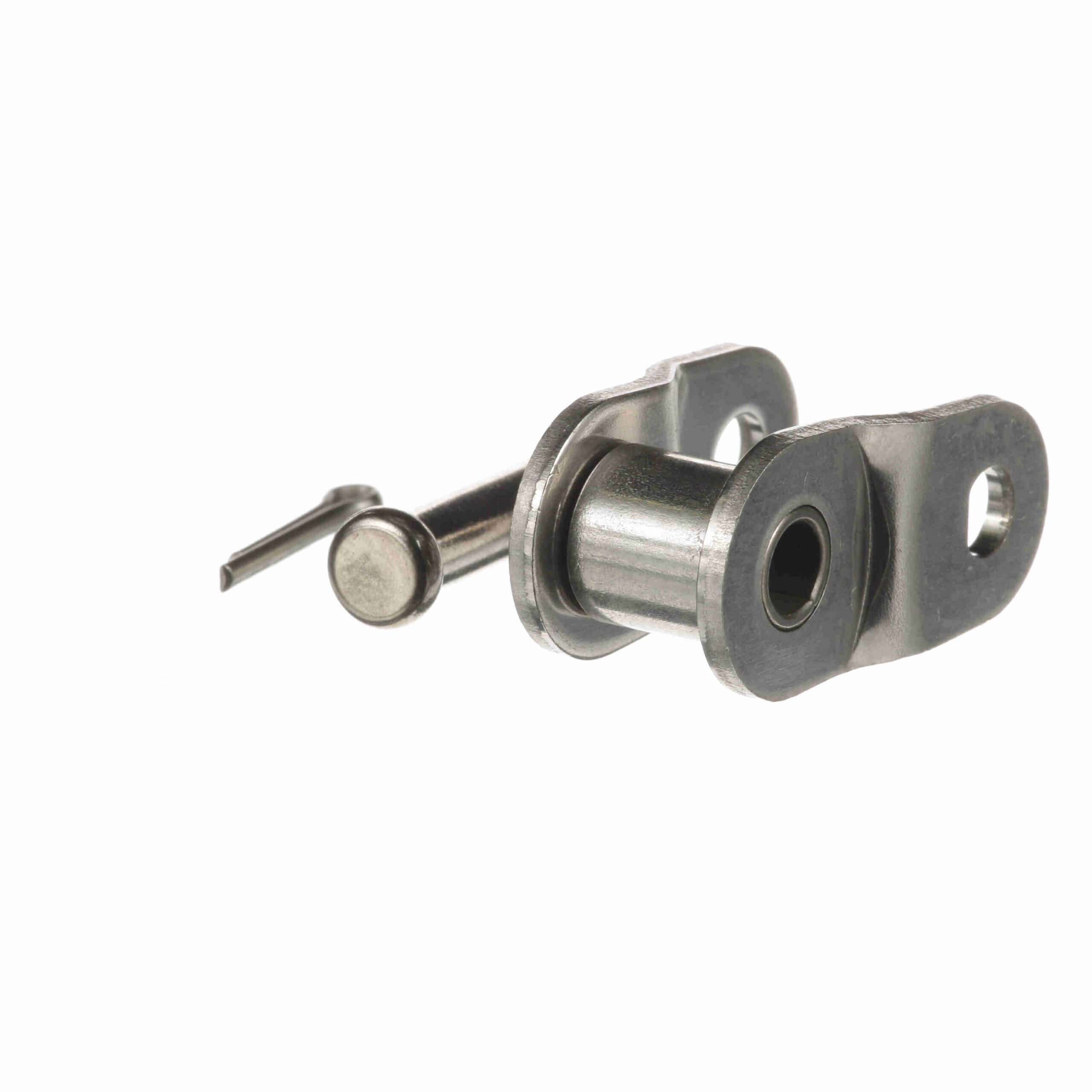

Morse Stainless Steel Roller Chain Offset Link – 40SS O/L
$25.32
Out of stock
Out of stock
| Pin Diameter (in): | 0.156 in | Plate Thickness: | 0.06 |
|---|---|---|---|
| Side Plate Cfg.: | Hourglass | Number of Strands/Width: | 1 |
| Centerline to Outside of cotter Pin: | 0.38 | Roller Diameter (in): | 0.312 in |
| Width Over Pins/Total Width: | 0.63 | Roller Width (in): | 0.3125 in |
| Material: | Stainless Steel | Single Pitch Offset Link: | Cottered |
| Centerline to Opposite cotter Pin Side: | 0.315 | Chain Size: | 40 |
| Inside Plate Height: | 0.466 | Average Ultimate Tensile Strength (psi): | 2, 700 |
| Chain Pitch (in): | 0.5 in | Chain Type: | Stainless Steel |
| Product Type: | Roller Chain | Link Type: | Offset Link |
| UPC: | 662288801795 | Weight: | 0.45 LB |
| Packaged Length: | 2.95 Inches | Packaged Width: | 1.10 Inches |
| Packaged Height: | 0.65 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Japan |
