- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
140-2R 10.21FT

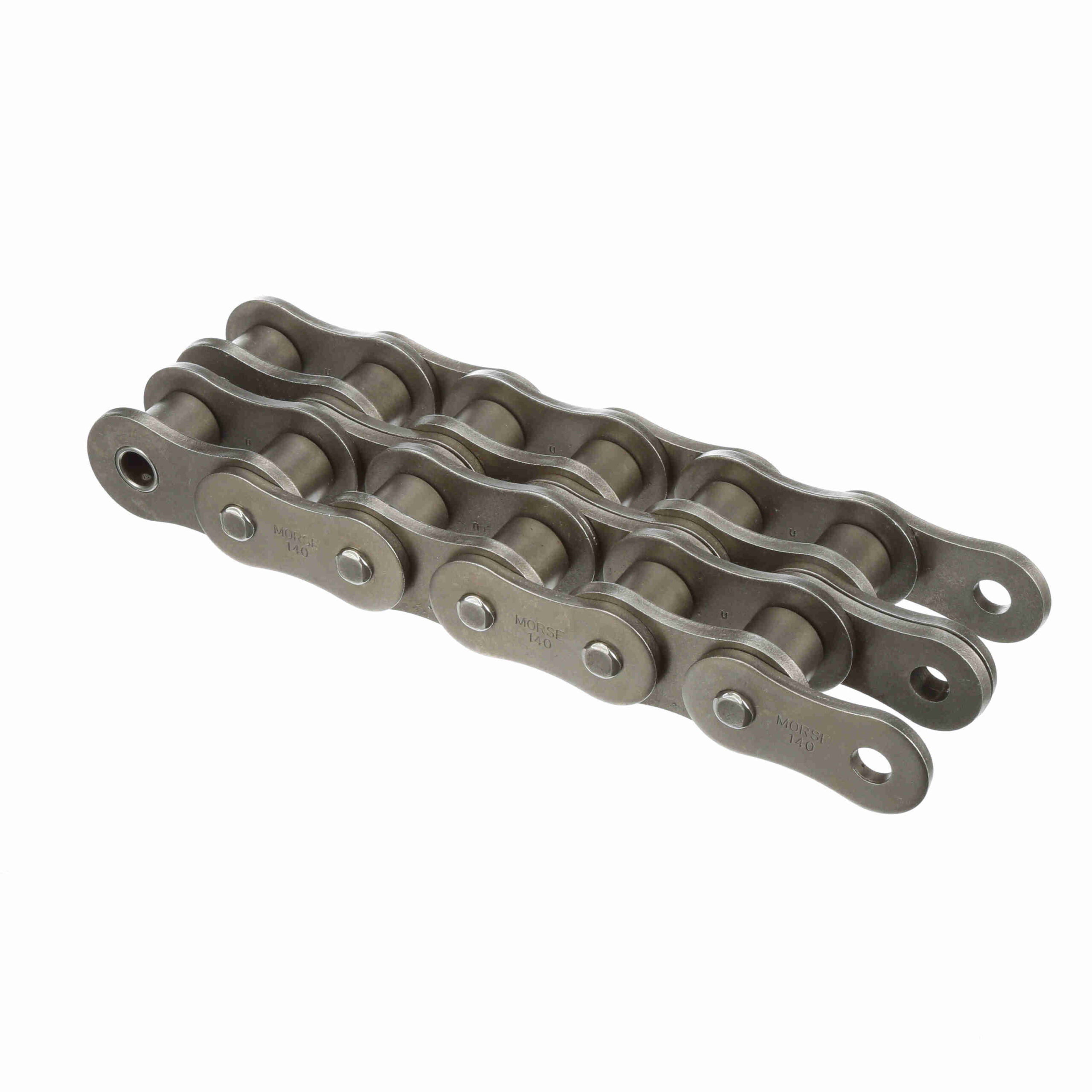

Morse Standard Riveted Roller Chain – 140-2R 10.21FT
$186.38
Out of stock
Out of stock
| Material: | Steel | Number of Strands/Width: | 2 |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 92, 000 | Roller Diameter (in): | 1 in |
| Inside Plate Height: | 1.634 | Chain Construction: | Riveted |
| Pin Diameter (in): | 0.5 in | Width Over Pins/Total Width: | 4.041 |
| Centerline to Opposite cotter Pin Side: | 2.02 | Chain Size: | 140 |
| Center Plates: | Loose Fit, Press Fit Optional | Number of Connecting Links Included: | 1 |
| Roller Width (in): | 1 in | Side Plate Cfg.: | Hourglass |
| Centerline to Outside of cotter Pin: | 2.187 | Plate Thickness: | 0.219 |
| Product Type: | Roller Chain | Chain Pitch (in): | 1.75 in |
| Chain Type: | Standard | Total Length: | 10.21 FT ft |
| Coating: | Uncoated | Standard Met: | ANSI B29.1 |
| Transverse Pitch: | 1.924 | Measurement System: | Imperial |
| Pin Length - Riveted: | 4.041 | UPC: | 662288455547 |
| Weight: | 9.80 LB | Packaged Length: | 15.75 Inches |
| Packaged Width: | 19.00 Inches | Packaged Height: | 5.25 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
