- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3TC84

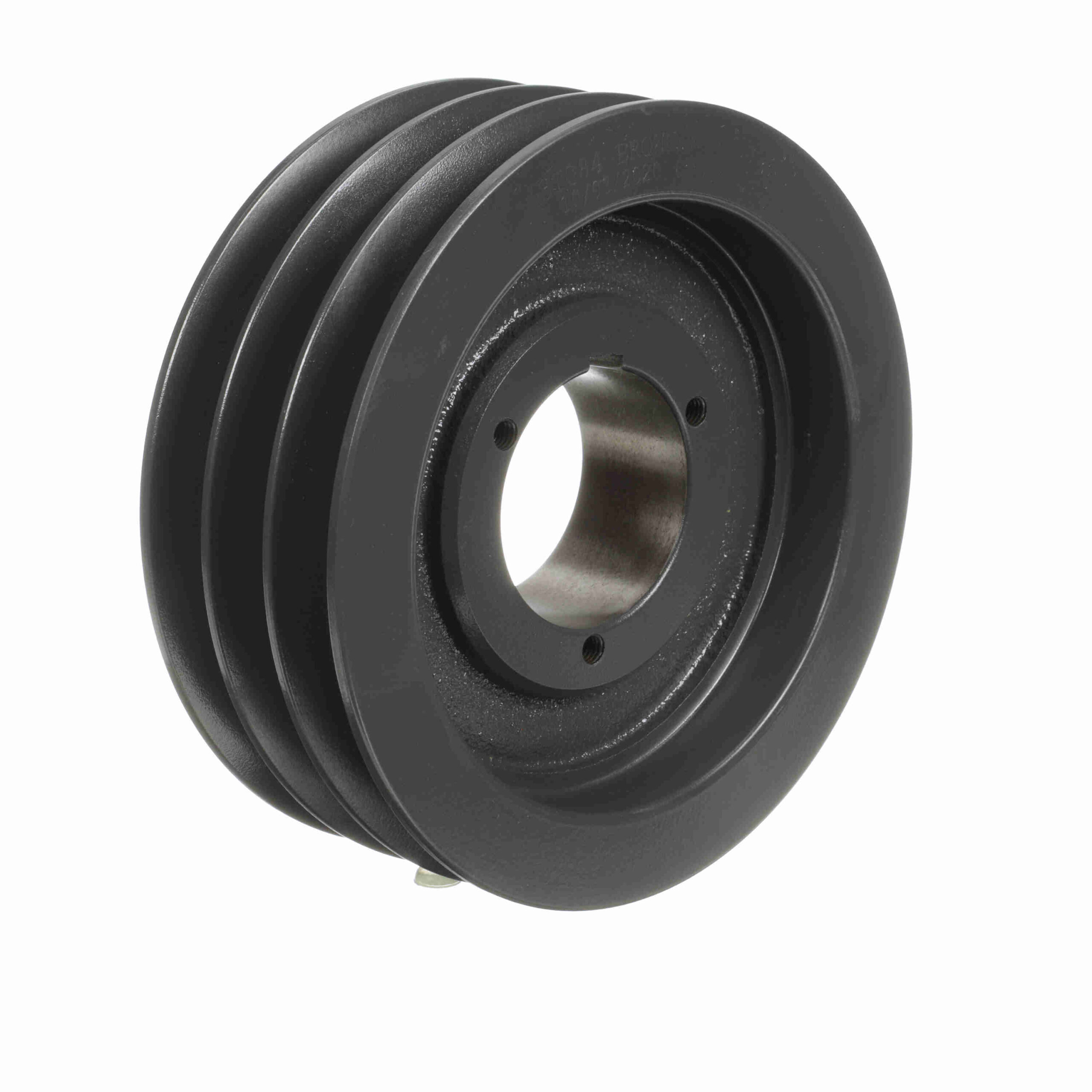

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3TC84
$695.98
Out of stock
Out of stock
| Pitch Diameter (C): | 8.8 | Outside Diameter (in): | 8.8 in |
|---|---|---|---|
| Overall Length (in): | 3.578125 in | Material: | Cast Iron |
| Number of Grooves: | 3 | Bushing Used: | Q1 |
| Pulley Material: | Cast Iron | Model Name: | 3TC-L_Sheave_Master |
| Datum Diameter (C): | 8.4 | Belt Section: | C |
| Bore (Min) (in): | 0.75 in | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Face Width (in): | 3.25 |
| Pulley Construction: | Webbed | Bushing Bore Range: | 2.6875 - 2.6875 |
| Keyway Size: | .500 | Overall Width (in): | 3.53125 |
| UPC: | 662289310586 | Weight: | 20.20 LB |
| Packaged Length: | 9.06 Inches | Packaged Width: | 9.06 Inches |
| Packaged Height: | 3.75 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
