- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3R5V92

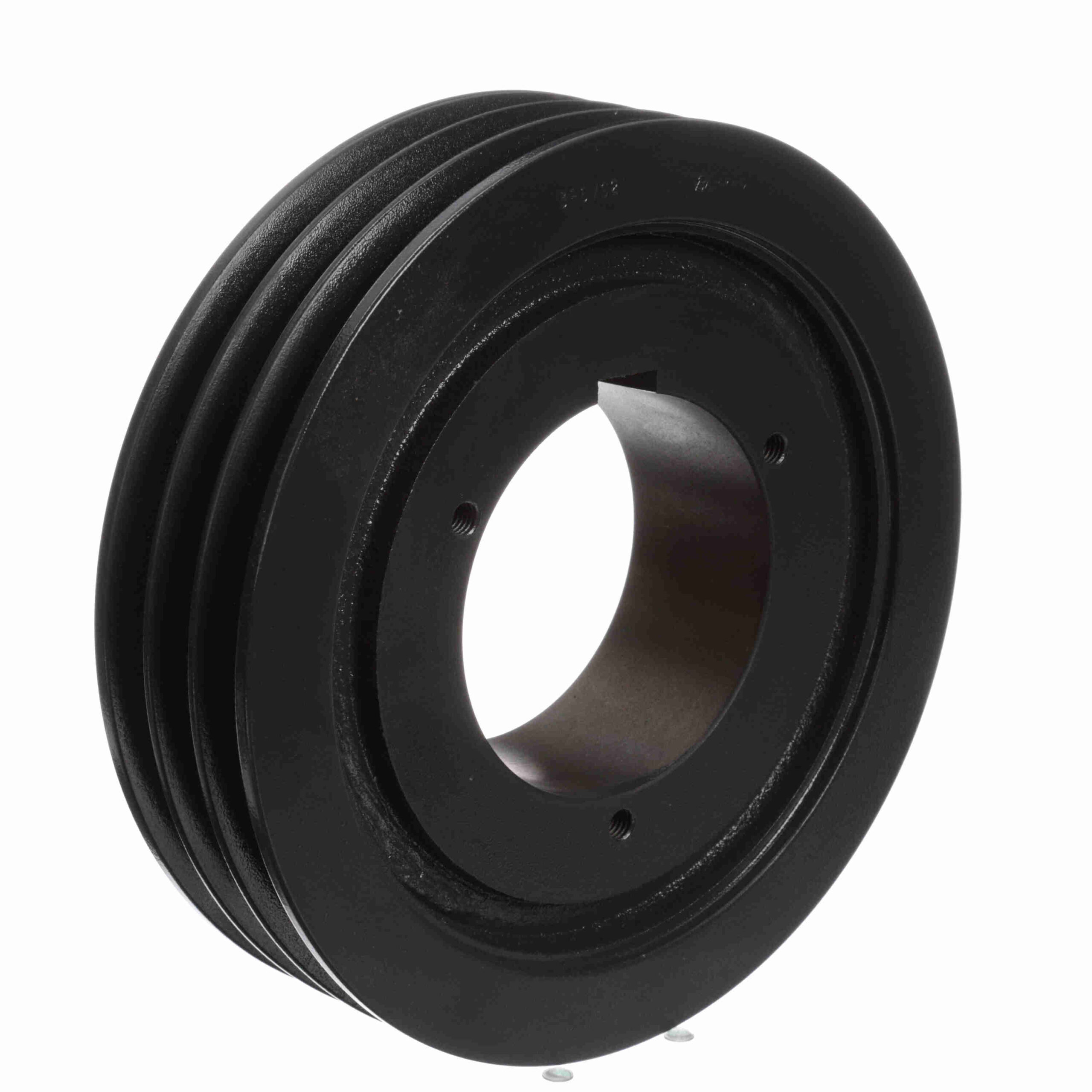

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3R5V92
$265.28
Availability: 3 in stock
Availability: 3 in stock
| Pulley Material: | Cast Iron | Pitch Diameter (5V): | 9.15 |
|---|---|---|---|
| Material: | Cast Iron | Bushing Used: | R1 |
| Number of Grooves: | 3 | Overall Length (in): | 3.359375 in |
| Outside Diameter (in): | 9.25 in | Belt Section: | 5V |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 1.125 in |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Webbed |
| Overall Width (in): | 3.34375 | Face Width (in): | 2.375 |
| Keyway Size: | .750 | Bushing Bore Range: | 1.125 - 3.750 |
| UPC: | 662289210718 | Weight: | 24.53 LB |
| Packaged Length: | 10.30 Inches | Packaged Width: | 10.40 Inches |
| Packaged Height: | 2.80 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
