- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3B36SH

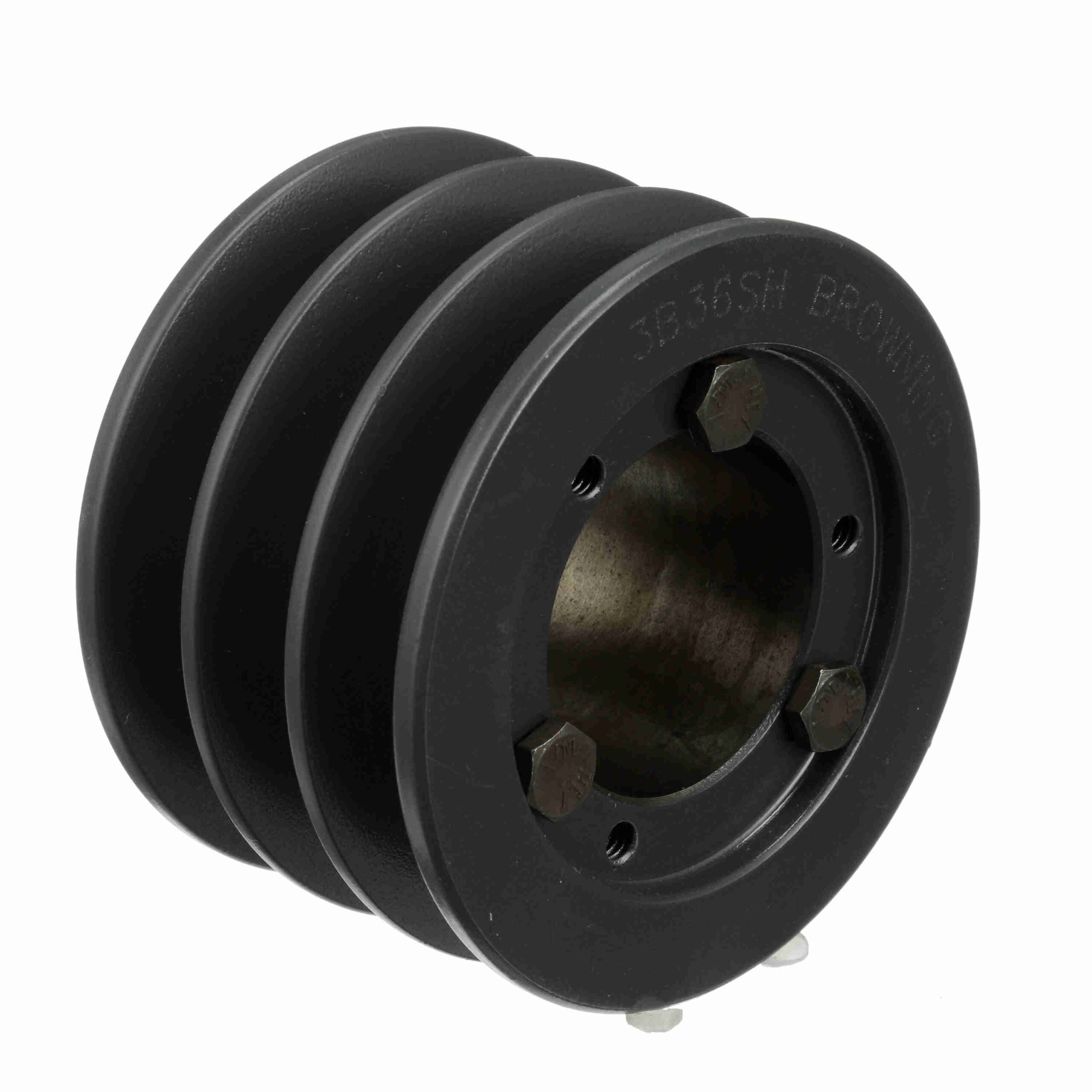

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3B36SH
$152.75
Out of stock
Out of stock
| Datum Diameter (B): | 3.6 | Number of Flanges: | 4 |
|---|---|---|---|
| Number of Grooves: | 3 | Outside Diameter (in): | 3.95 in |
| Belt Type: | Classic or 358 | Material: | Cast Iron |
| Model Name: | 3AB_LG_Sheavemaster | Datum Diameter (A): | 3.2 |
| Bushing Used: | SH | Pulley Material: | Cast Iron |
| Pitch Diameter (B): | 3.9 | Number of Hubs: | 1 |
| Pitch Diameter (A): | 3.4 | Belt Section: | A, B |
| Bore (Min) (in): | 0.5 in | Product Type: | Multiple Sheaves |
| Bore Type: | QD Bushed | Bushing Bore Range: | 0.500 - 1.625 |
| Face Width (in): | 2.5 | Length Through Bore (in): | 1.2 in |
| UPC: | 662289392995 | Weight: | 3.66 LB |
| Packaged Length: | 4.19 Inches | Packaged Width: | 4.19 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
