- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3B64SD

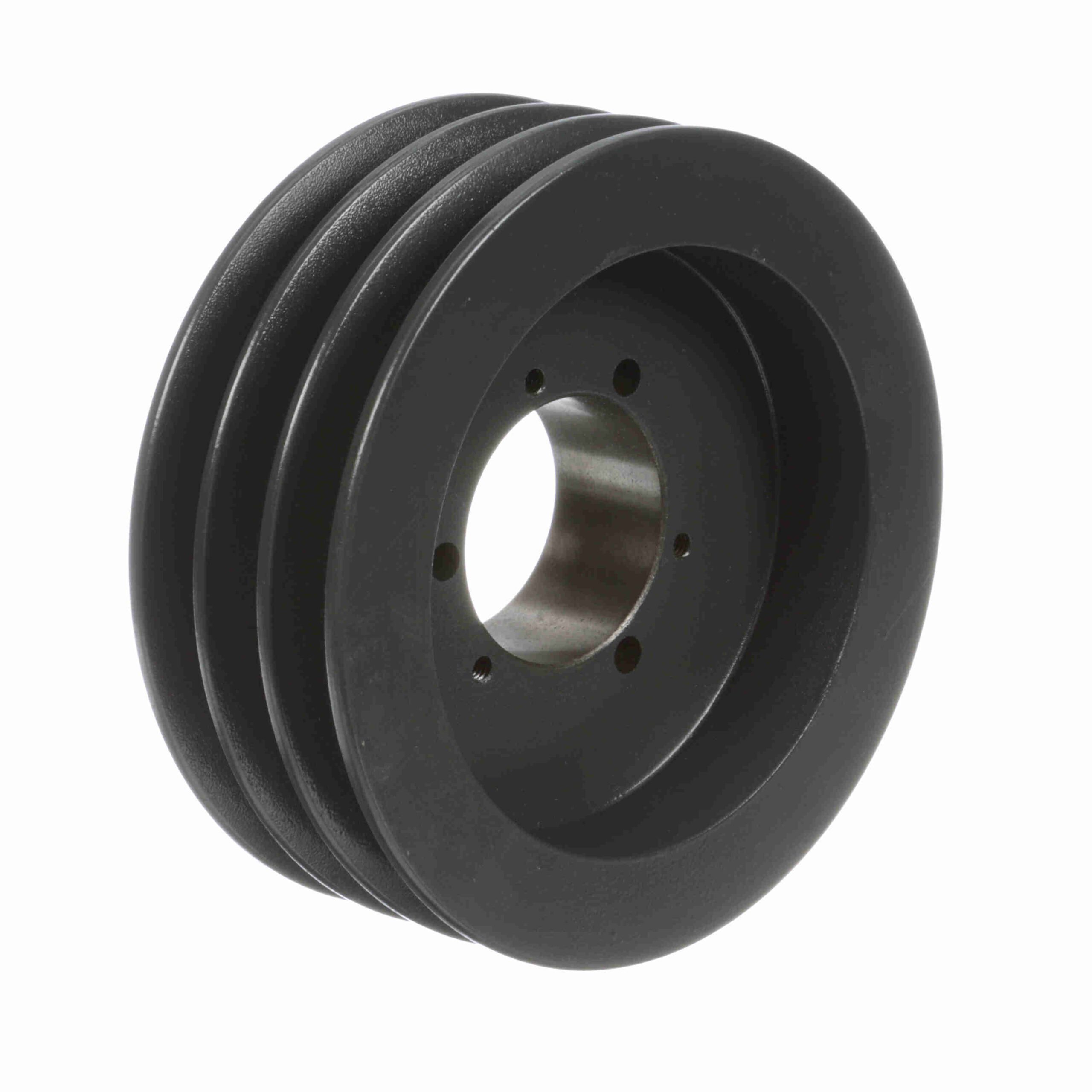

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3B64SD
$362.90
Out of stock
Out of stock
| Pitch Diameter (A): | 6.2 | Model Name: | 3AB_LG_Sheavemaster |
|---|---|---|---|
| Pulley Material: | Cast Iron | Bushing Used: | SD |
| Material: | Cast Iron | Pitch Diameter (B): | 6.7 |
| Number of Grooves: | 3 | Outside Diameter (in): | 6.75 in |
| Datum Diameter (A): | 6 | Datum Diameter (B): | 6.4 |
| Bore (Min) (in): | 0.5 in | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore Type: | QD Bushed |
| Bushing Bore Range: | 0.500 - 2.000 | Pulley Construction: | Plain |
| Overall Width (in): | 2.5 | Face Width (in): | 2.5 |
| Length Through Bore (in): | 1.8125 in | UPC: | 662289403172 |
| Weight: | 11.85 LB | Packaged Length: | 7.19 Inches |
| Packaged Width: | 7.19 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
