- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS432

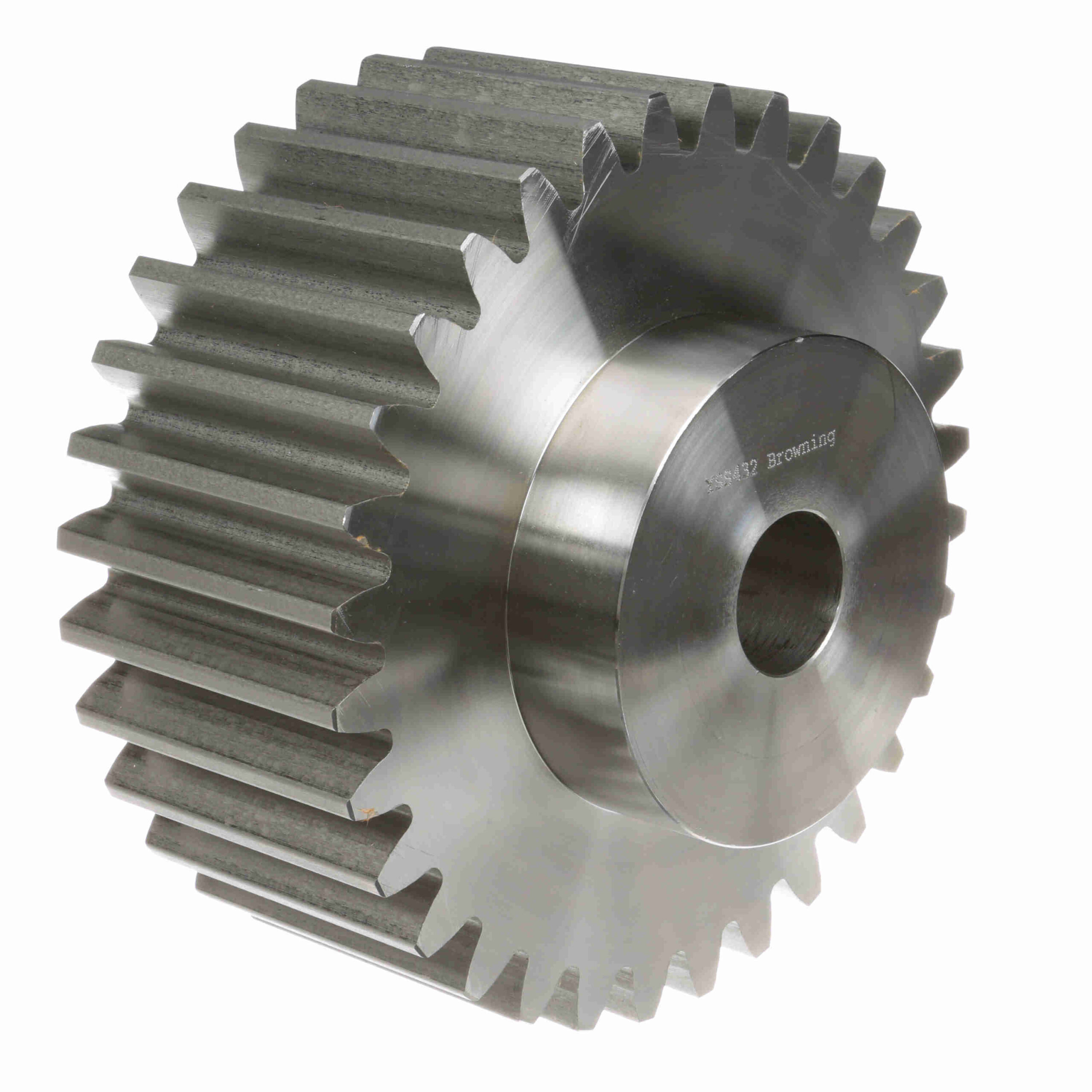

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 4 DP – YSS432
Out of stock
| Hub Diameter (in): | 4.5 in | Material: | Steel |
|---|---|---|---|
| Diametral Pitch: | 4 | Hub Projection (in): | 1.25 in |
| Number of Teeth/Threads: | 32 | Face Width (in): | 3.5 in |
| Pressure Angle: | 20 | Pitch Diameter (in): | 8 in |
| Outside Diameter (in): | 8.5 in | Bore (Min) (in): | 1.4375 in |
| Length Through Bore (in): | 4.75 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 2.75 in | Bore Size (in): | 1.4375 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 4.75 in | Standard Met: | AGMA |
| UPC: | 662289257331 | Weight: | 52.82 LB |
| Packaged Length: | 9.06 Inches | Packaged Width: | 9.06 Inches |
| Packaged Height: | 4.75 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
