- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
35H24

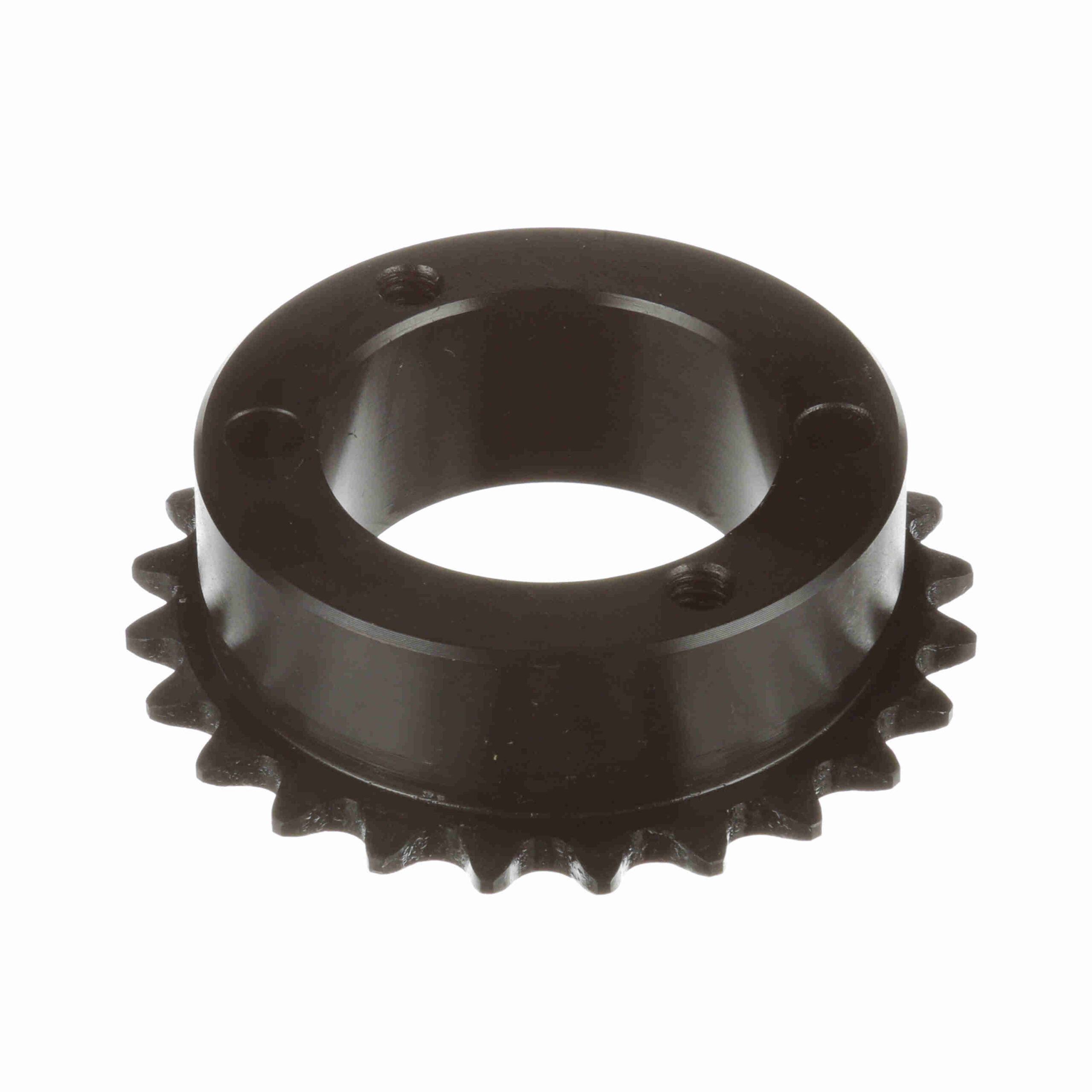

Browning Steel Bushed Bore Roller Chain Sprocket – 35H24
$113.34
Availability: 1 in stock
Availability: 1 in stock
| Bushing Used: | Split Taper | Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain |
|---|---|---|---|
| Pitch Diameter (in): | 2.873 in | Chain Pitch (in): | 0.375 in |
| Material: | Steel | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Max) (in): | 1.5 in | Bore (Min) (in): | 0.375 in |
| Number of teeth: | 24 | Outside Diameter (in): | 3.073 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 1.50625 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Minimum Bore (in): | 0.375 | Maximum Bore (in): | 1.5 |
| Width Across Tooth Sets: | 0.168 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289144037 |
| Weight: | 0.79 LB | Packaged Length: | 4.30 Inches |
| Packaged Width: | 4.30 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
