- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
35-4R 10FT

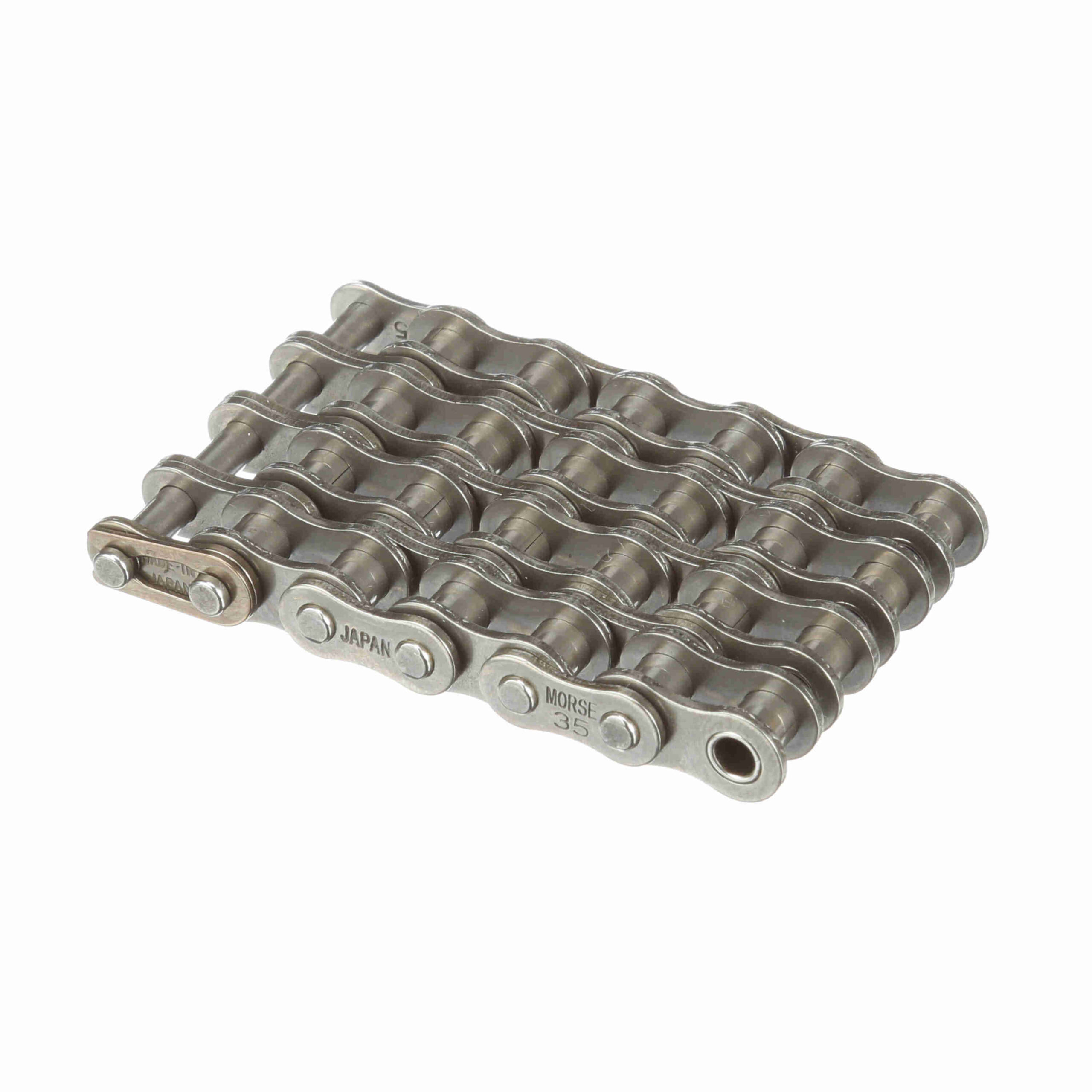

Morse Standard Riveted Roller Chain – 35-4R 10FT
$168.60
Out of stock
Out of stock
| Plate Thickness: | 0.05 | Roller Width (in): | 0.1875 in |
|---|---|---|---|
| Width Over Pins/Total Width: | 1.664 | Chain Construction: | Riveted |
| Pin Diameter (in): | 0.141 in | Centerline to Opposite cotter Pin Side: | 0.832 |
| Centerline to Outside of cotter Pin: | 0.906 | Center Plates: | Loose Fit, Press Fit Optional |
| Material: | Steel | Side Plate Cfg.: | Hourglass |
| Number of Strands/Width: | 4 | Chain Size: | 35 |
| Roller Diameter (in): | 0.2 in | Inside Plate Height: | 0.35 |
| Number of Connecting Links Included: | 1 | Average Ultimate Tensile Strength (psi): | 8, 400 |
| Chain Pitch (in): | 0.375 in | Chain Type: | Standard |
| Product Type: | Roller Chain | Coating: | Uncoated |
| Total Length: | 10 FT ft | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 0.399 |
| Pin Length - Riveted: | 1.664 | UPC: | 662288459736 |
| Weight: | 0.91 LB | Packaged Length: | 9.10 Inches |
| Packaged Width: | 8.90 Inches | Packaged Height: | 2.00 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Japan |
