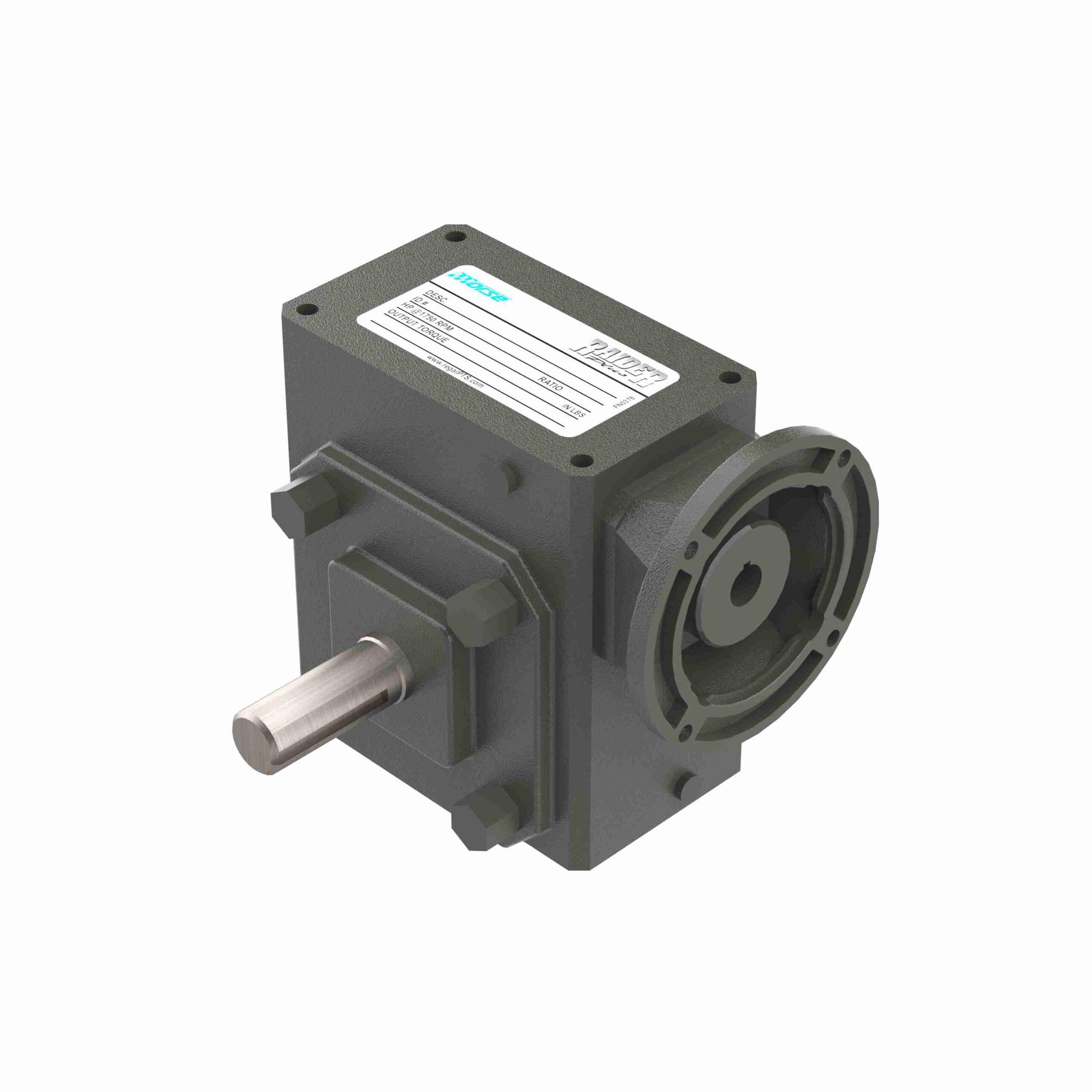

325Q140LR40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Efficiency:	80	Ratio:	40:1
Thrust Rating - output shaft:	3410	Motor Frame Size:	140TC
Shaft Seal Material:	Nitrile	Input Bore (C Face):	0.875
Input Keyway (C Face):	3/16 X 3/32	Input Speed:	1750
Reducer Style:	Standard	Center Distance (in):	3.25
Ratio Range:	40:1	Gear Type:	Worm
Frame Size:	140TC	Input RPM:	1, 750
Input HP @ 1750 RPM:	2.43	Service Factor:	1
Input Diameter (in):	0.875 in	Output Shaft Assembly Code:	D
Input Style:	C-Face Quill	Output Diameter (in):	1.375 in
Output RPM:	43.7	Assembly:	Q-LR
Product Type:	Worm Speed Reducer	Reducer:	Worm - Right Angle
Series Code:	Raider	Model Code:	325Q
Output Shaft Orientation:	LR	No. of Gear Reductions:	Single
Output Key:	5/16 X 2.88	Mounting Style:	No Base
Output Shaft Direction:	Double	Output Shaft:	Solid Shaft
Overhung Load Rating (Output Shaft(lb)):	2, 401 lb	Output Torque Rating (in-lb):	3303 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	75.00 LB	Packaged Length:	19.38 Inches
Packaged Width:	15.11 Inches	Packaged Height:	15 Inches
