- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
CF 3 1/4 B

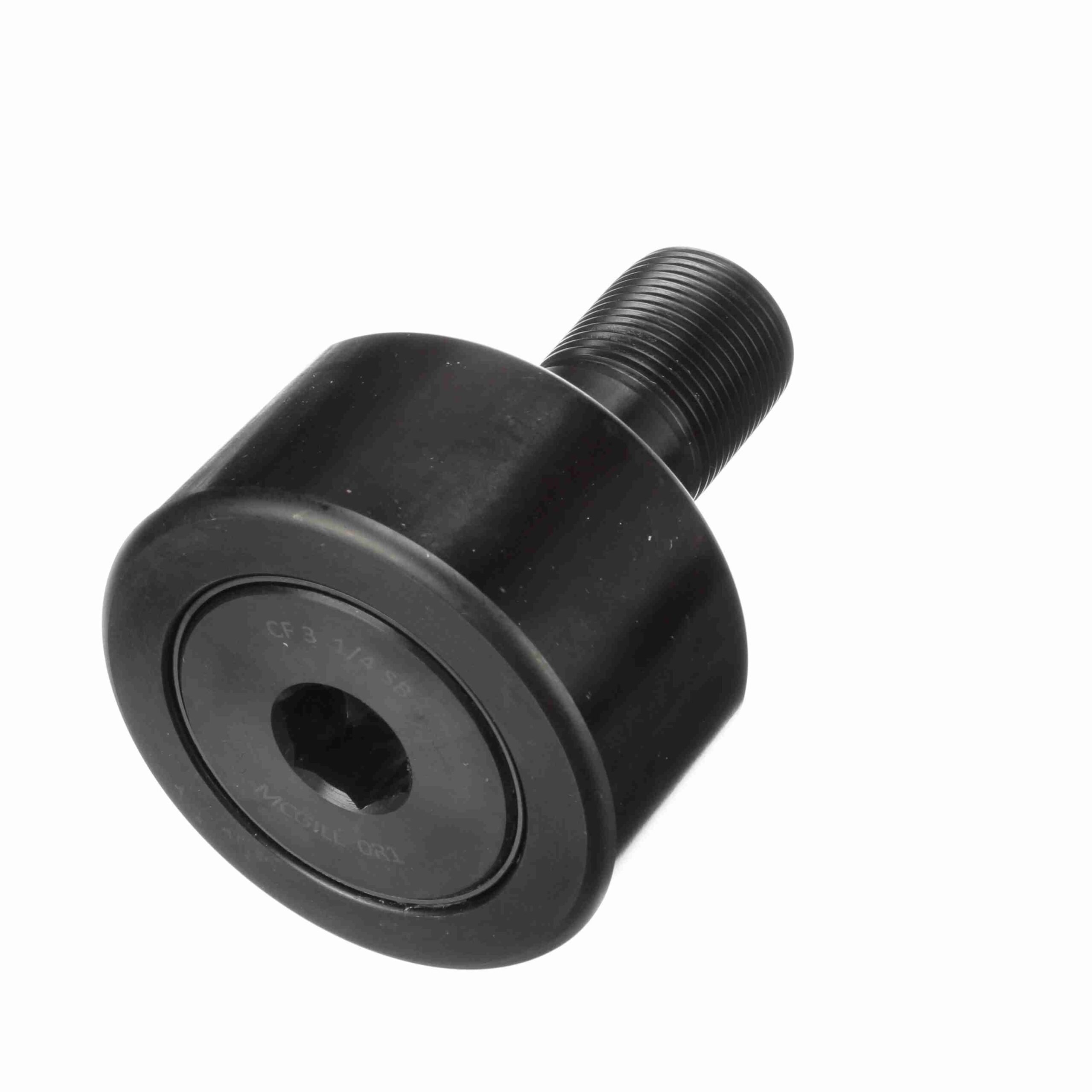

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – CF 3 1/4 B
$273.30
Out of stock
Out of stock
| O.D. Configuration: | Cylindrical | Series: | Inch CAMROL® |
|---|---|---|---|
| Adjustment: | None | Rolling Element: | Needle Roller - Full Complement |
| Sealing: | Unsealed | Limiting Speed: | 880 |
| Hex/Slot: | Hex Hole | Dynamic Radial Rating: | 16 |
| Material: | Bearing Steel, Black Oxide Finish | Static Load Rating: | 18 |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Stud Type: | Standard Stud | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 15, 720 lb | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 3, 450 lbs | UPC: | 726166039547 |
| Weight: | 4.81 LB | Packaged Length: | 3.25 Inches |
| Packaged Width: | 3.25 Inches | Packaged Height: | 4.5 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
