- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- Narrow roller width
CF 1/2 N B

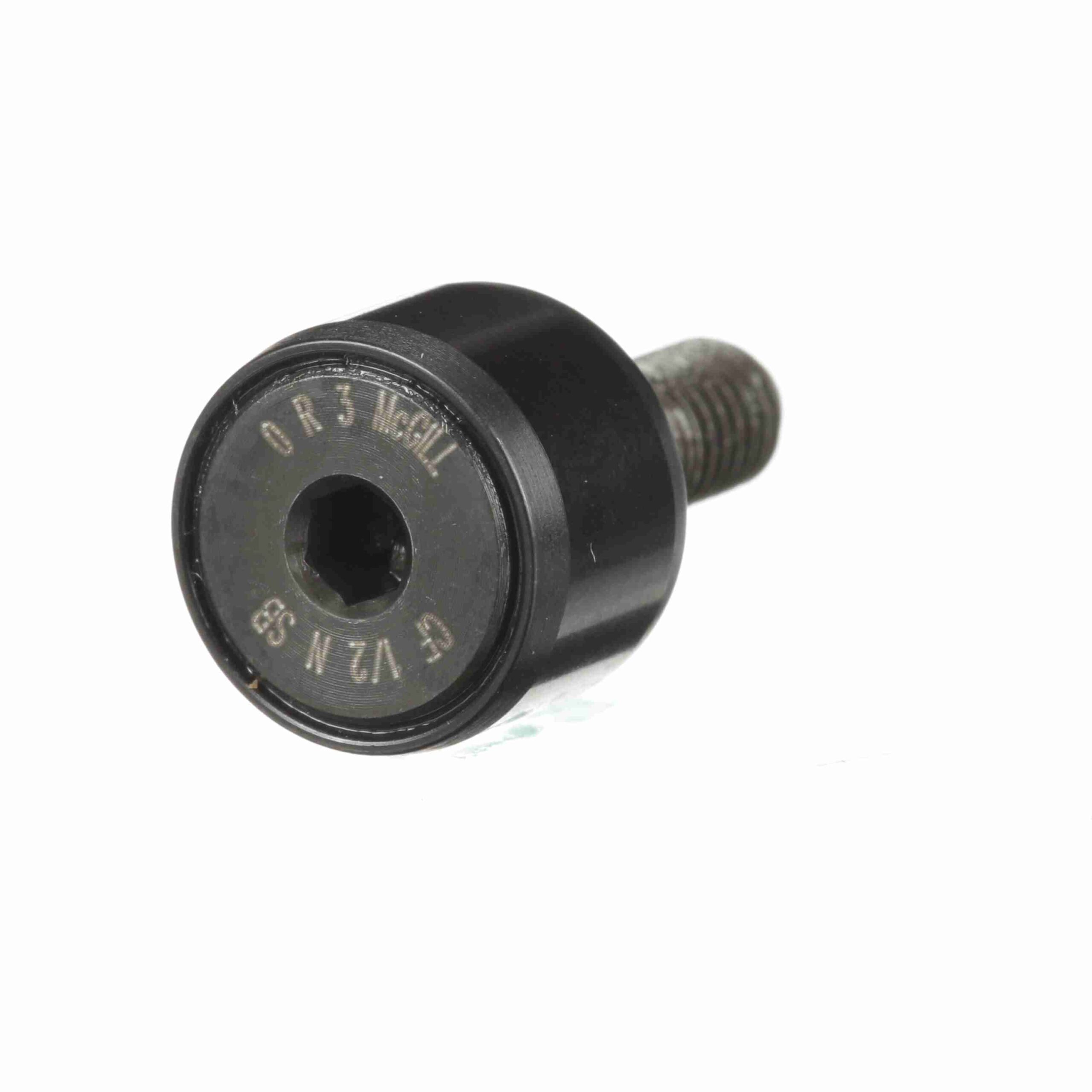

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – CF 1/2 N B
$30.02
Out of stock
Out of stock
| Adjustment: | None | O.D. Configuration: | Cylindrical |
|---|---|---|---|
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| Limiting Speed: | 12 | Dynamic Radial Rating: | 620 |
| Series: | Inch CAMROL® | Sealing: | Unsealed |
| Material: | Bearing Steel, Black Oxide Finish | Roller Shape: | Cylindrical |
| Dynamic Load Rating (lb): | 620 lb | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Stud Type: | Standard Stud |
| Static Load Rating: | 720 | Lubrication Hole Location: | Stud side |
| Ability to Relubricate: | No | Clamping Torque (in-lbf): | 15 lbs |
| UPC: | 726166029623 | Weight: | 0.02 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
