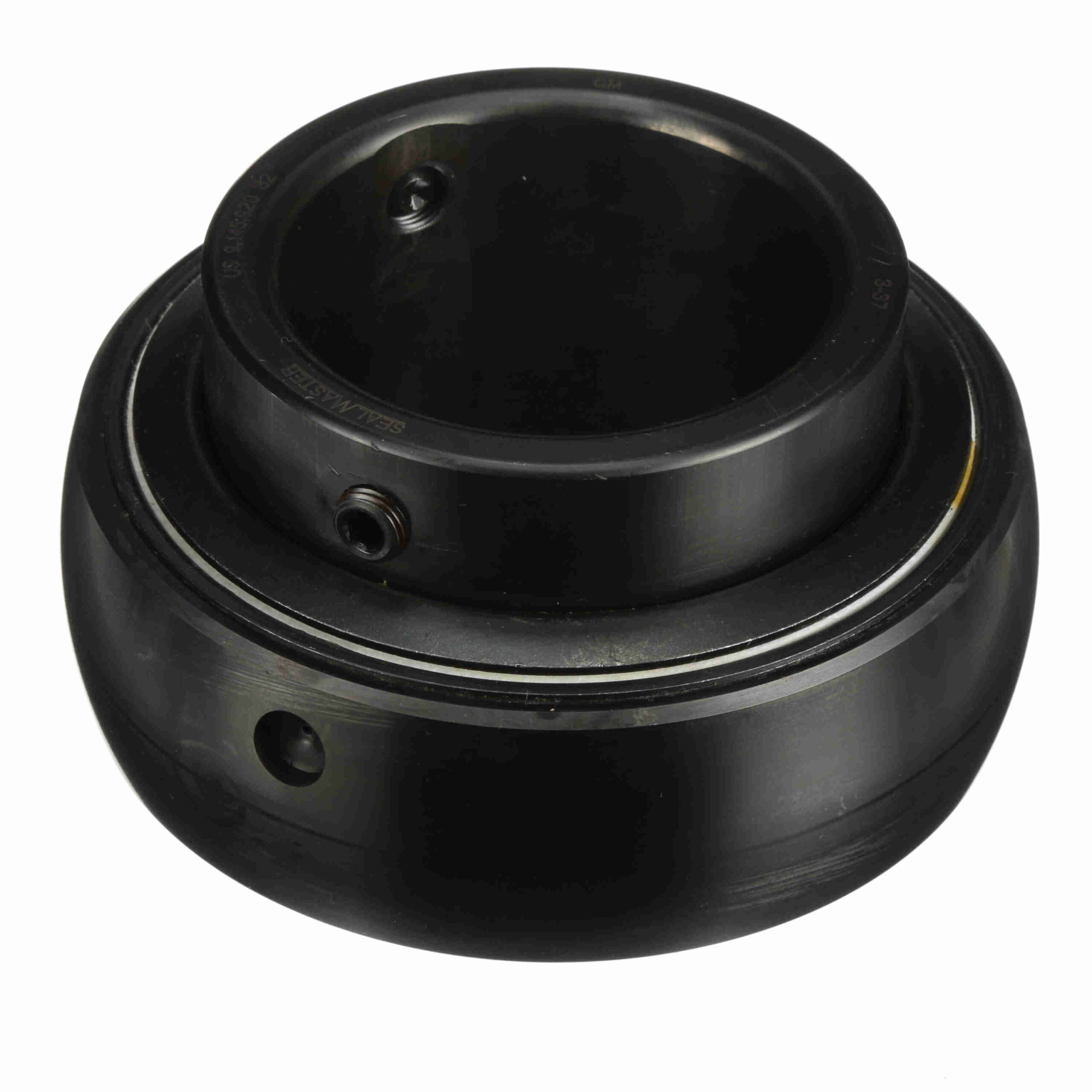

3-37

Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Radius:	0.12	Housing Type:	Insert Only
Maximum Operating Temperature:	220 °F	Seal Type:	Felt Labyrinth Seal
Set Screw Thread:	1/2-20	Retainer Type:	Land Riding Retainer
Duty Series:	Medium	Insert Material:	52100 Bearing Steel; Black Oxided
Measure Units:	Inch	Rolling Element:	Ball Bearing
Inner-Race Heat-Treat Method:	Zone-Hardened	Bore Shape:	Straight
Speed (Max):	2000	Internal Clearance:	Standard
Lubrication:	Lithium Complex NLGI 2 Grease	Misalignment:	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb):	21, 566	Expansion:	No
Locking Type:	Setscrew	Relubricatable:	Yes
Platform:	Gold Line Ball Bearing	Outer Ring Land Profile:	Standard
End Cap:	No	Bearing Insert Coating:	Black Oxide Coated
Misalignment Type:	Static Only	Radial Static Load Capacity (lb):	16, 301
Cage Material:	Brass	Precision Rating:	ABEC 1
Outer Race Profile:	Spherical	Inner Race Profile:	Wide Inner Ring
UPC:	662461000878	Weight:	11.97 LB
Packaged Length:	6.38 Inches	Packaged Width:	6.31 Inches
Packaged Height:	3.88 Inches	HTC:	8482.10.5056
Country of Origin:	United States of America
