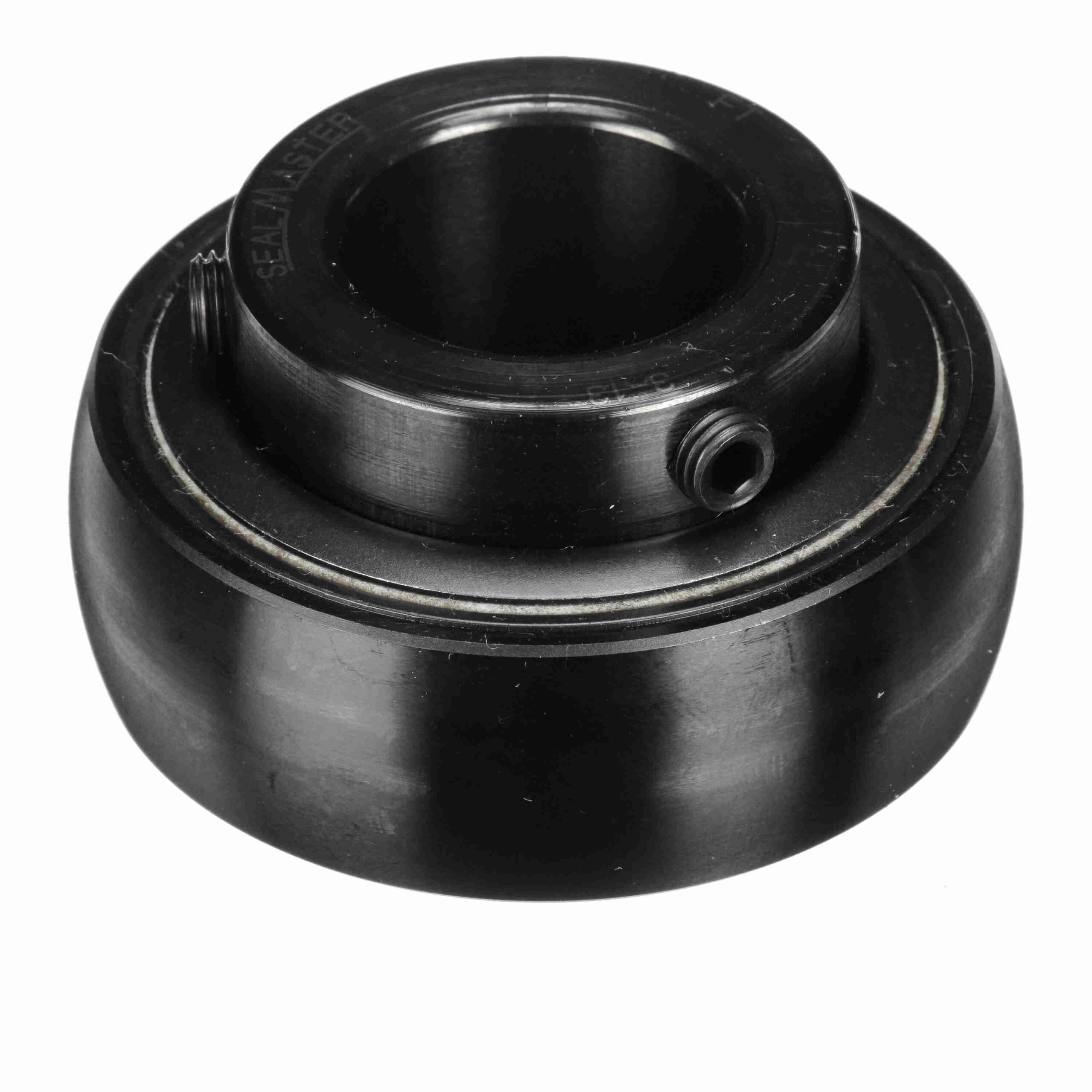

3-13

Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Bore Shape:	Straight	Measure Units:	Inch
Insert Material:	52100 Bearing Steel, Black Oxided	Set Screw Thread:	5/16-24
Radius:	0.04	Inner-Race Heat-Treat Method:	Zone-Hardened
Housing Type:	Insert Only	Seal Type:	Felt Labyrinth Seal
Maximum Operating Temperature:	220 °F	Rolling Element:	Ball Bearing
Duty Series:	Medium	Retainer Type:	Land Riding Retainer
Internal Clearance:	Standard	Expansion:	No
Speed (Max):	4650	Misalignment:	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb):	5, 782	Locking Type:	Setscrew
Lubrication:	Lithium Complex NLGI 2 Grease	Relubricatable:	Yes
End Cap:	No	Misalignment Type:	Static Only
Platform:	Gold Line Ball Bearing	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Radial Static Load Capacity (lb):	3, 493
Precision Rating:	ABEC 1	Cage Material:	PPS
Inner Race Profile:	Wide Inner Ring	Outer Race Profile:	Spherical
UPC:	662461000625	Weight:	1.39 LB
Packaged Length:	3.13 Inches	Packaged Width:	1.75 Inches
Packaged Height:	3.13 Inches	HTC:	8482.10.5052
Country of Origin:	Mexico
