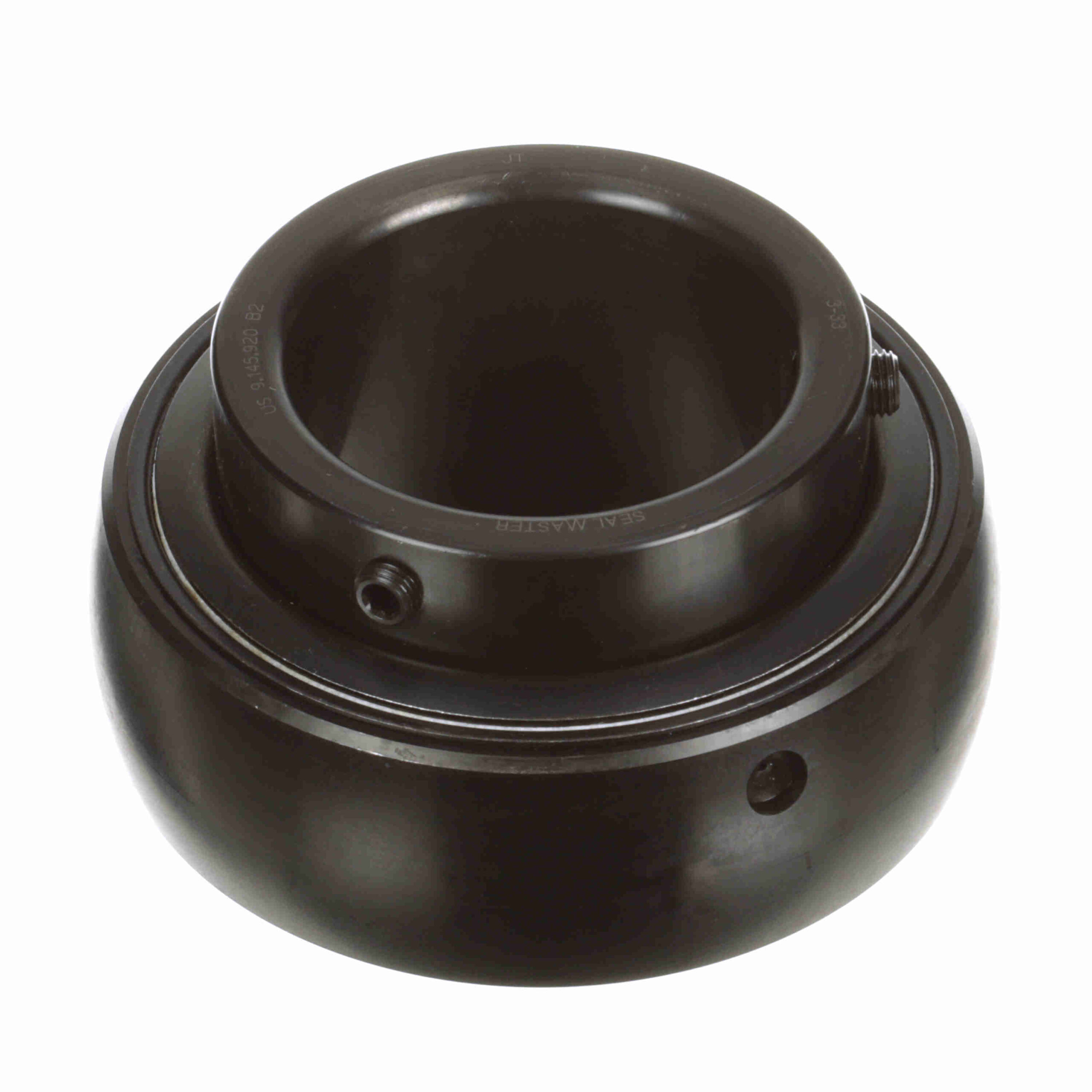

3-33

Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Rolling Element:	Ball Bearing	Housing Type:	Insert Only
Insert Material:	52100 Bearing Steel, Black Oxided	Bore Shape:	Straight
Measure Units:	Inch	Set Screw Thread:	7/16-20
Radius:	0.12	Internal Clearance:	Standard
Radial Dynamic Load Capacity (lb):	18, 681 lb	Misalignment:	±2.0° Misalignment - Static Only
Speed (Max) (RPM):	2125 rpm	End Cap:	No
Outer Ring Land Profile:	Standard	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	Platform:	Gold Line Ball Bearing
Radial Static Load Capacity (lb):	14, 496 lb	Precision Rating:	ABEC 1
Cage Material:	Brass	Outer Race Profile:	Spherical
Inner Race Profile:	Wide Inner Ring	Inner Race Heat Treat Method:	Zone-Hardened
Locking Type:	Setscrew	Duty/Series:	Medium
Fixed vs. Expansion:	No	Maximum Operating Temperature (F):	220 °F
Lubrication Type:	Lithium Complex NLGI 2 Grease	Ability to Relubricate:	Yes
Type of Seal:	Felt Labyrinth Seal	Retainer Type:	Land Riding Retainer
UPC:	662461000861	Weight:	10.15 LB
Packaged Length:	6 Inches	Packaged Width:	6 Inches
Packaged Height:	4 Inches	HTC:	8482.10.5056
Country of Origin:	United States of America
