- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
2-22

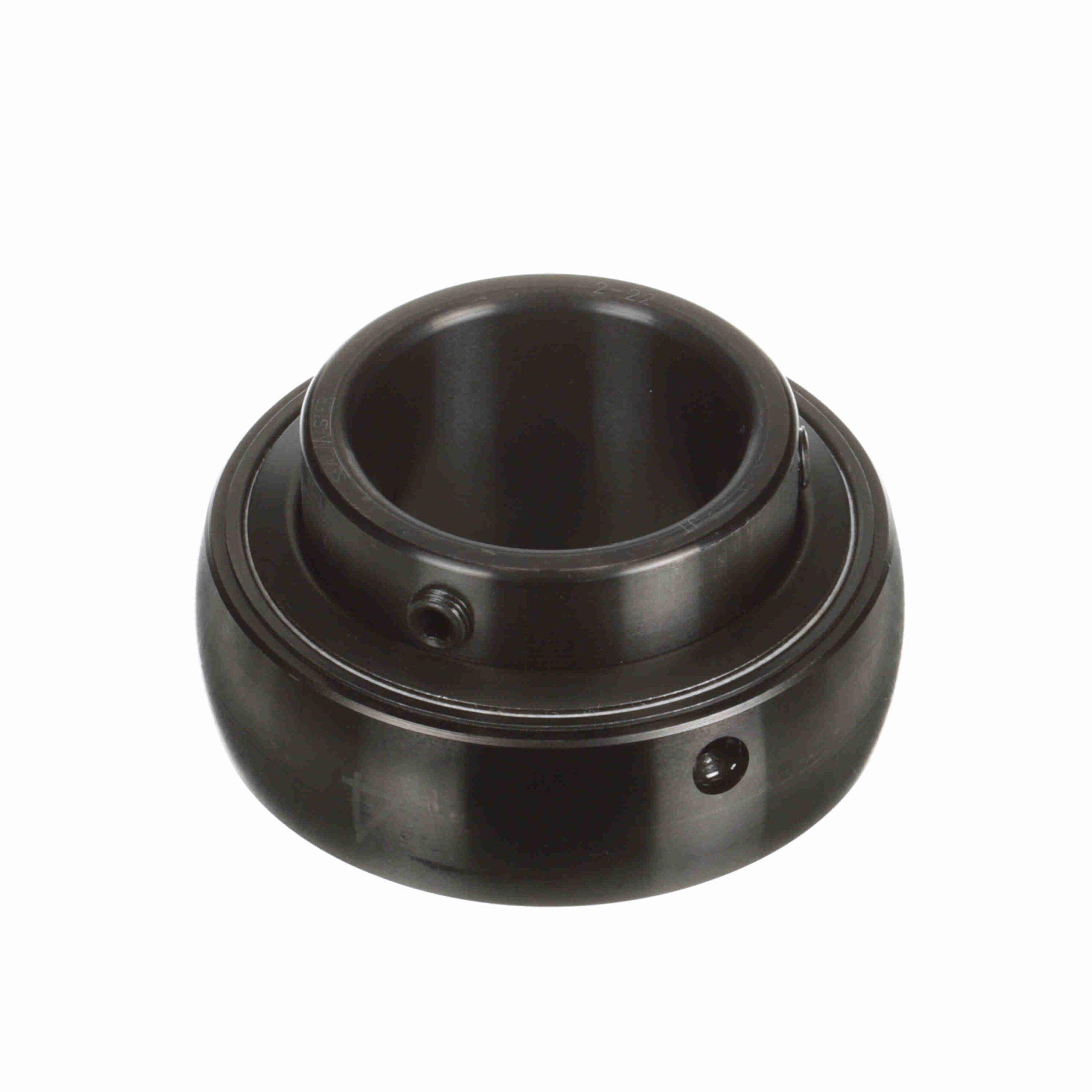

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – 2-22
$230.78
Out of stock
Out of stock
| Retainer Type: | Land Riding Retainer | Set Screw Thread: | 3/8-24 |
|---|---|---|---|
| Housing Type: | Insert Only | Radius: | 0.08 |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Measure Units: | Inch |
| Duty Series: | Standard | Bore Shape: | Straight |
| Maximum Operating Temperature: | 220 °F | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Seal Type: | Felt Labyrinth Seal | Rolling Element: | Ball Bearing |
| Internal Clearance: | Standard | Speed (Max): | 3250 |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Expansion: | No | Misalignment: | ±2.0° Misalignment - Static Only |
| Locking Type: | Setscrew | Radial Dynamic Load Capacity (lb): | 9, 752 |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Radial Static Load Capacity (lb): | 6, 601 |
| Cage Material: | PPS | Precision Rating: | ABEC 1 |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Spherical |
| UPC: | 662461000359 | Weight: | 2.80 LB |
| Packaged Length: | 4.25 Inches | Packaged Width: | 2.25 Inches |
| Packaged Height: | 4.25 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
