- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2TC114

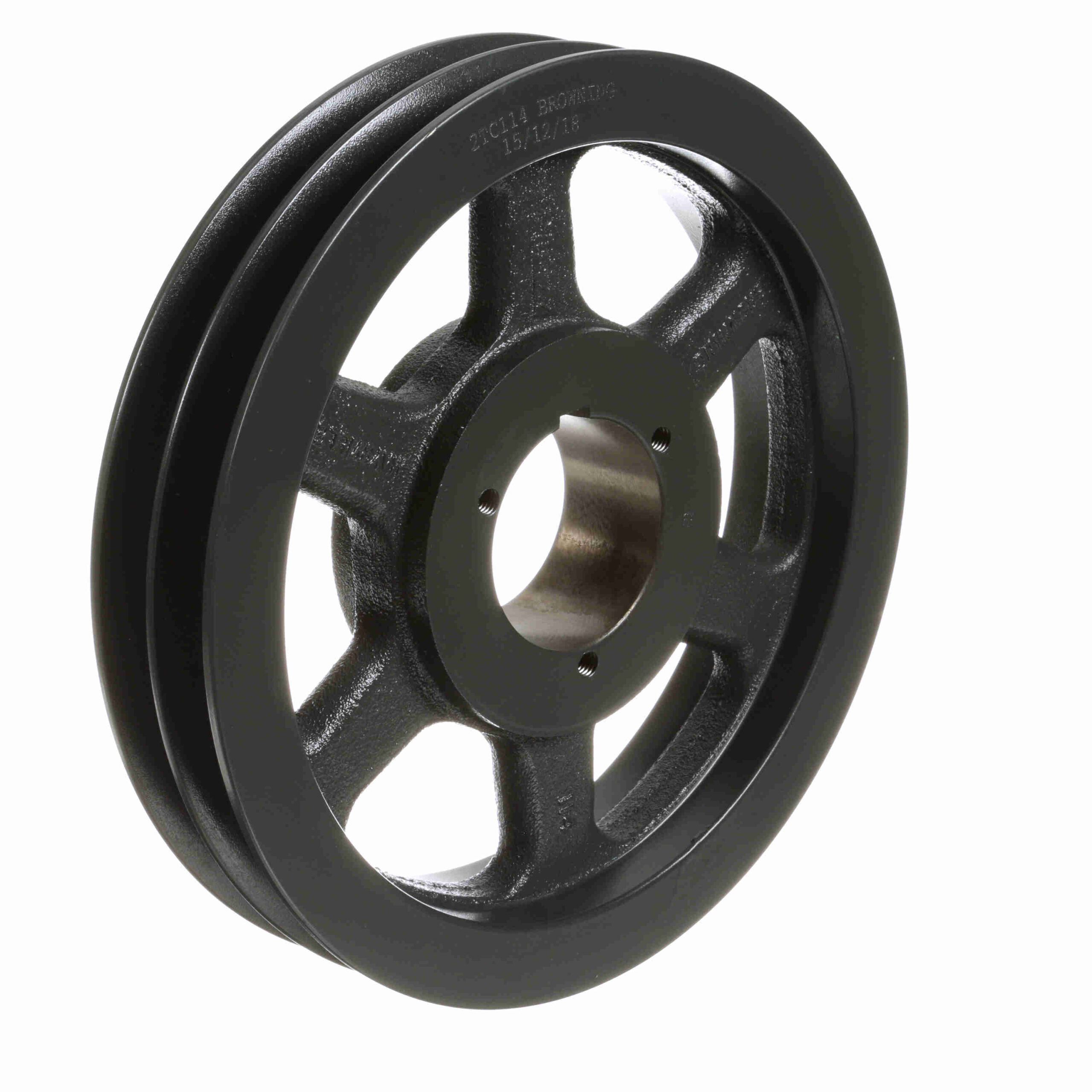

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2TC114
$763.59
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Bushing Used: | Q1 |
|---|---|---|---|
| Material: | Cast Iron | Pitch Diameter (C): | 11.8 |
| Overall Length (in): | 3.078125 in | Outside Diameter (in): | 11.8 in |
| Number of Grooves: | 2 | Model Name: | 2TC-L_Sheave_Master |
| Datum Diameter (C): | 11.4 | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.75 in | Belt Section: | C |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Spoked |
| Overall Width (in): | 3.03125 | Face Width (in): | 2.25 |
| Bushing Bore Range: | 2.6875 - 2.6875 | Keyway Size: | .500 |
| UPC: | 662289273669 | Weight: | 23.98 LB |
| Packaged Length: | 13.10 Inches | Packaged Width: | 13.30 Inches |
| Packaged Height: | 3.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
