- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50H22

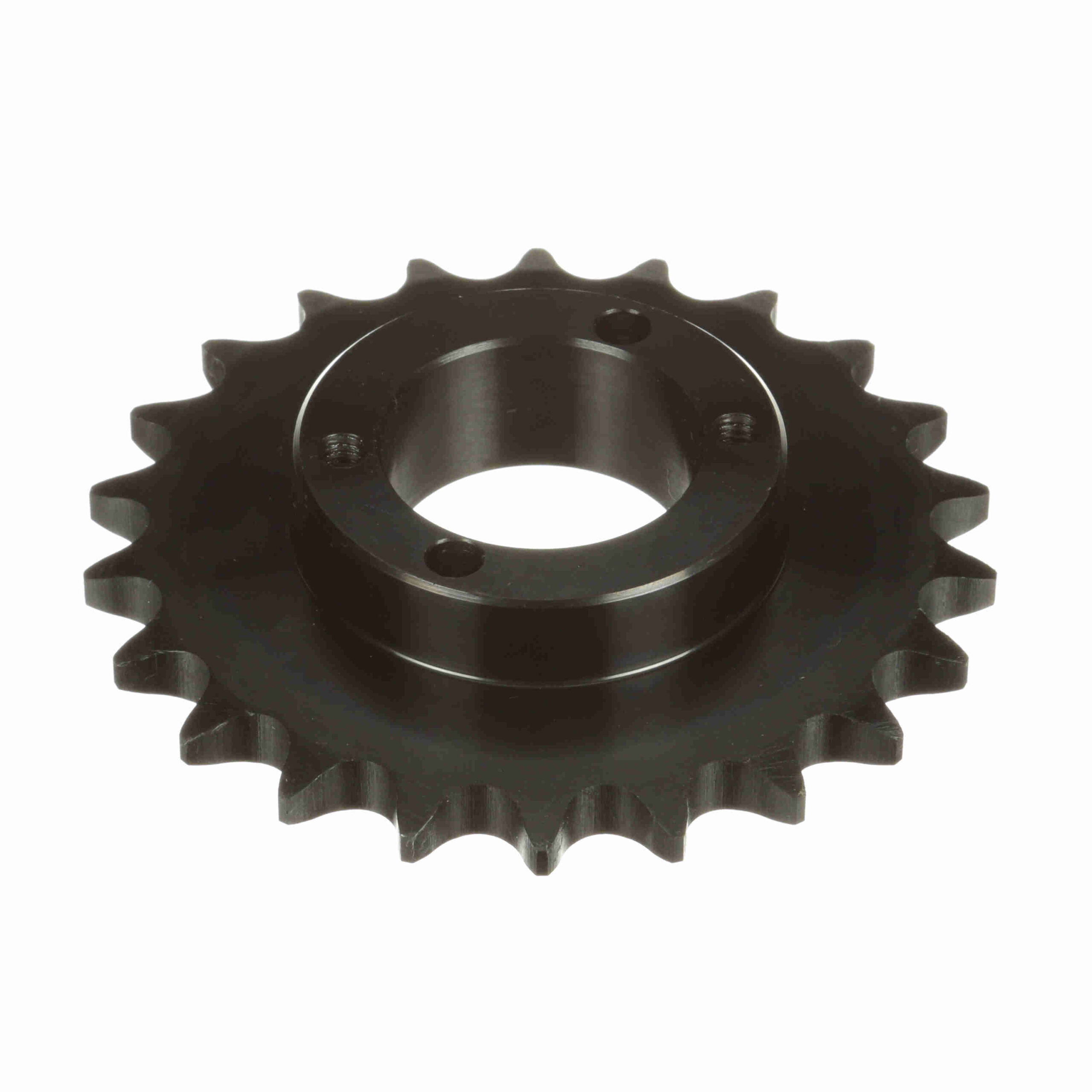

Browning Steel Bushed Bore Roller Chain Sprocket – H50H22
$247.38
Availability: 4 in stock
Availability: 4 in stock
| Material: | Steel, Hardened Teeth | Chain Pitch (in): | 0.625 in |
|---|---|---|---|
| Bore (Min) (in): | 0.375 in | Pitch Diameter (in): | 4.392 in |
| Bore (Max) (in): | 1.5 in | Bushing Used: | Split Taper |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Number of teeth: | 22 |
| Product Type: | Bushed Roller Chain Sprocket | Overall Length (in): | 1.51225 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 4.722 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Maximum Bore (in): | 1.5 | Minimum Bore (in): | 0.375 |
| Width Across Tooth Sets: | 0.343 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289105274 |
| Weight: | 1.62 LB | Packaged Length: | 5.10 Inches |
| Packaged Width: | 4.80 Inches | Packaged Height: | 1.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
