- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4TC200

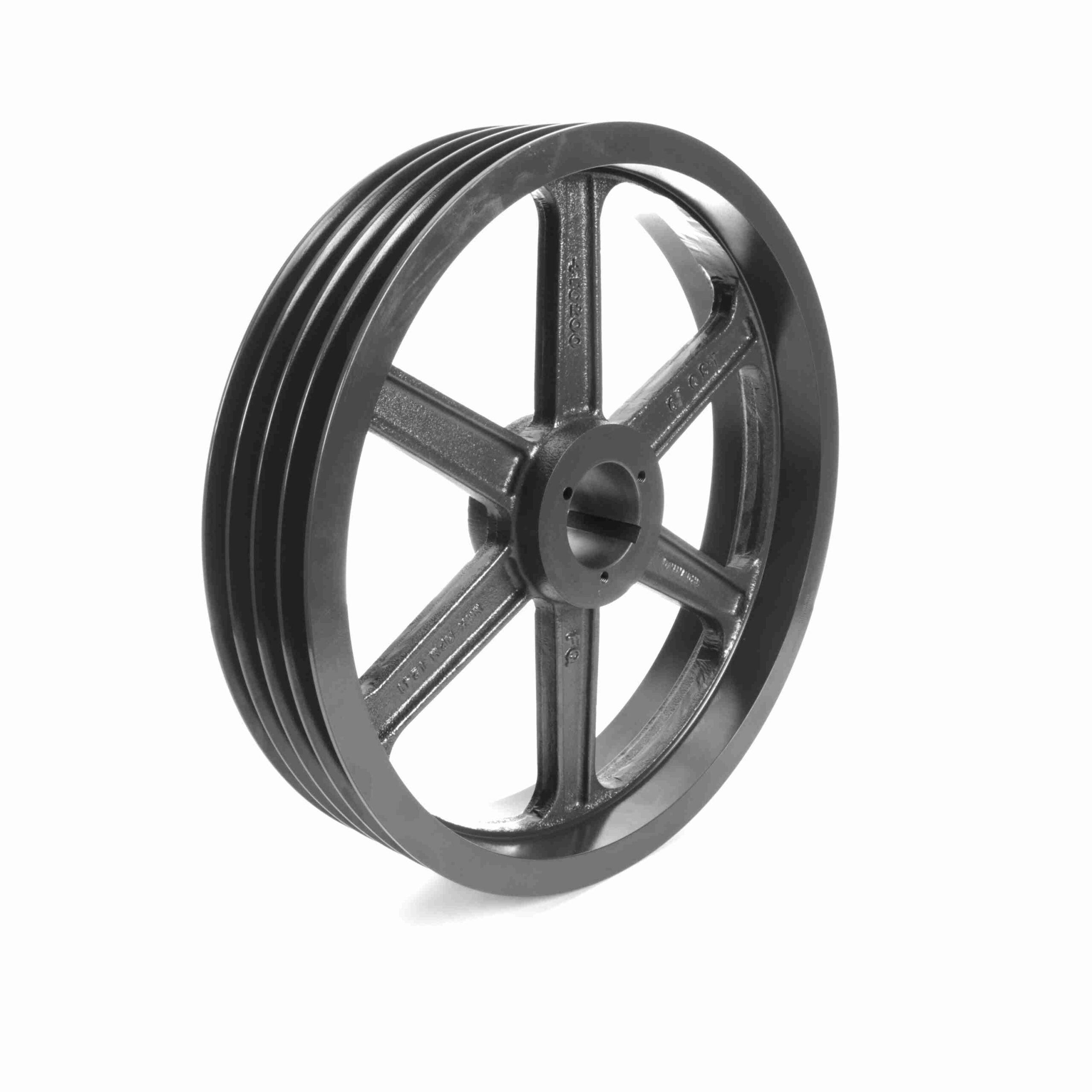

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4TC200
Out of stock
| Bushing Used: | Q2 | Pitch Diameter (C): | 20.4 |
|---|---|---|---|
| Number of Grooves: | 4 | Datum Diameter (C): | 20 |
| Model Name: | 4TC-L_Sheave_Master | Overall Length (in): | 4.578125 in |
| Outside Diameter (in): | 20.4 in | Material: | Cast Iron |
| Pulley Material: | Cast Iron | Bore (Min) (in): | 1 in |
| Belt Section: | C | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 1.000 - 2.625 |
| Keyway Size: | .500 | UPC: | 662289103911 |
| Weight: | 72.00 LB | Packaged Length: | 20.40 Inches |
| Packaged Width: | 20.40 Inches | Packaged Height: | 4.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
