- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2TC102

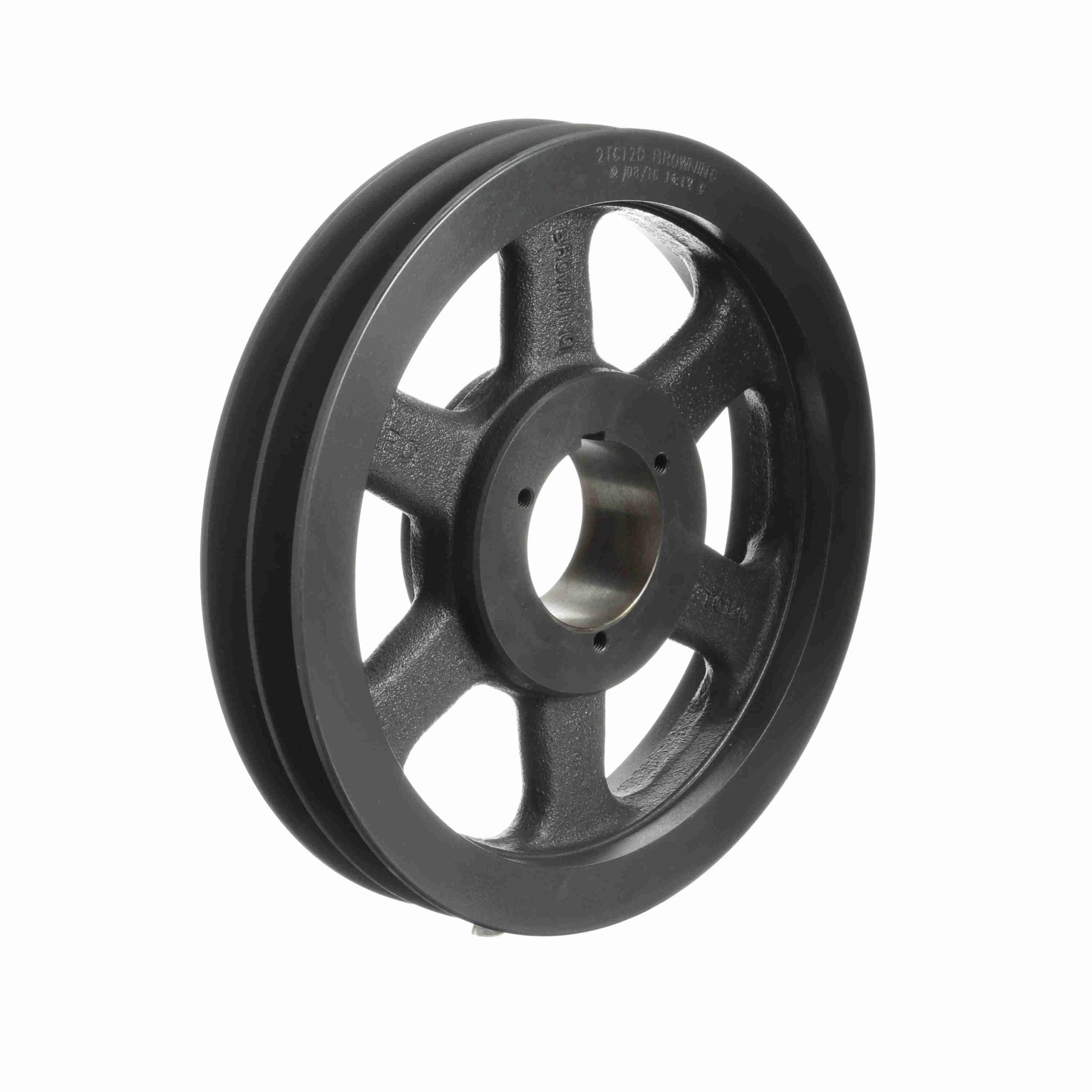

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2TC102
$685.03
Out of stock
Out of stock
| Model Name: | 2TC-L_Sheave_Master | Outside Diameter (in): | 10.6 in |
|---|---|---|---|
| Number of Grooves: | 2 | Pitch Diameter (C): | 10.6 |
| Pulley Material: | Cast Iron | Overall Length (in): | 3.078125 in |
| Material: | Cast Iron | Bushing Used: | Q1 |
| Datum Diameter (C): | 10.2 | Belt Section: | C |
| Bore (Min) (in): | 0.75 in | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 2.6875 - 2.6875 |
| Overall Width (in): | 3.03125 | Keyway Size: | .500 |
| Face Width (in): | 2.25 | Pulley Construction: | Spoked |
| UPC: | 662289310692 | Weight: | 20.87 LB |
| Packaged Length: | 11.80 Inches | Packaged Width: | 11.90 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
