- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4C200R

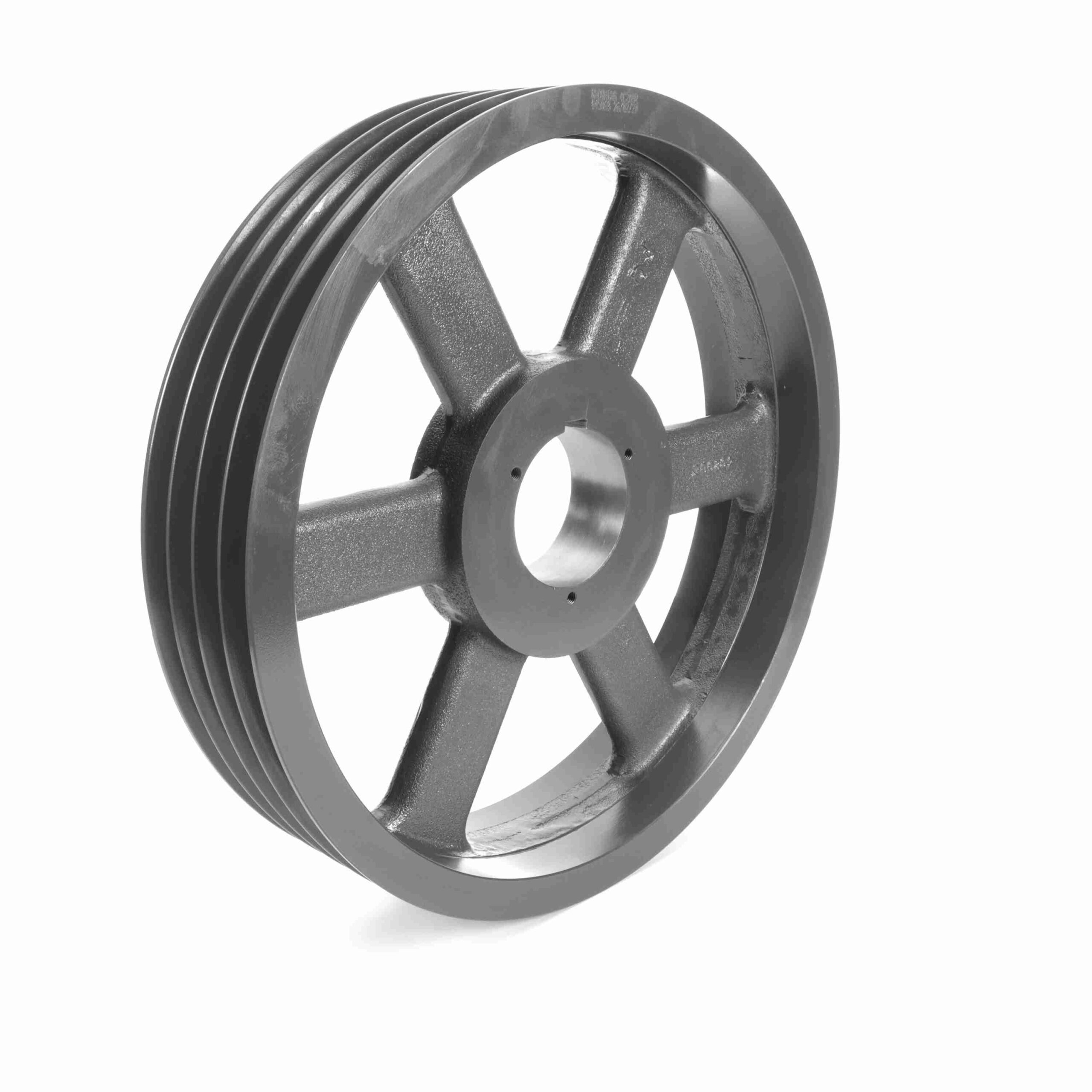

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4C200R
$1,598.44
Out of stock
Out of stock
| Number of Grooves: | 4 | Outside Diameter (in): | 20.4 in |
|---|---|---|---|
| Pulley Material: | Cast Iron | Overall Length (in): | 4.296875 in |
| Pitch Diameter (C): | 20.4 | Bushing Used: | R1 |
| Datum Diameter (C): | 20 | Material: | Cast Iron |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 1.125 in |
| Belt Section: | C | Bore Type: | Split Taper Bushed |
| Bushing Bore Range: | 1.125 - 3.750 | Overall Width (in): | 4.28125 |
| Face Width (in): | 4.25 | Pulley Construction: | Spoked |
| Keyway Size: | .750 | UPC: | 662289157037 |
| Weight: | 69.00 LB | Packaged Length: | 20.40 Inches |
| Packaged Width: | 20.40 Inches | Packaged Height: | 4.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
