- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2G3V28

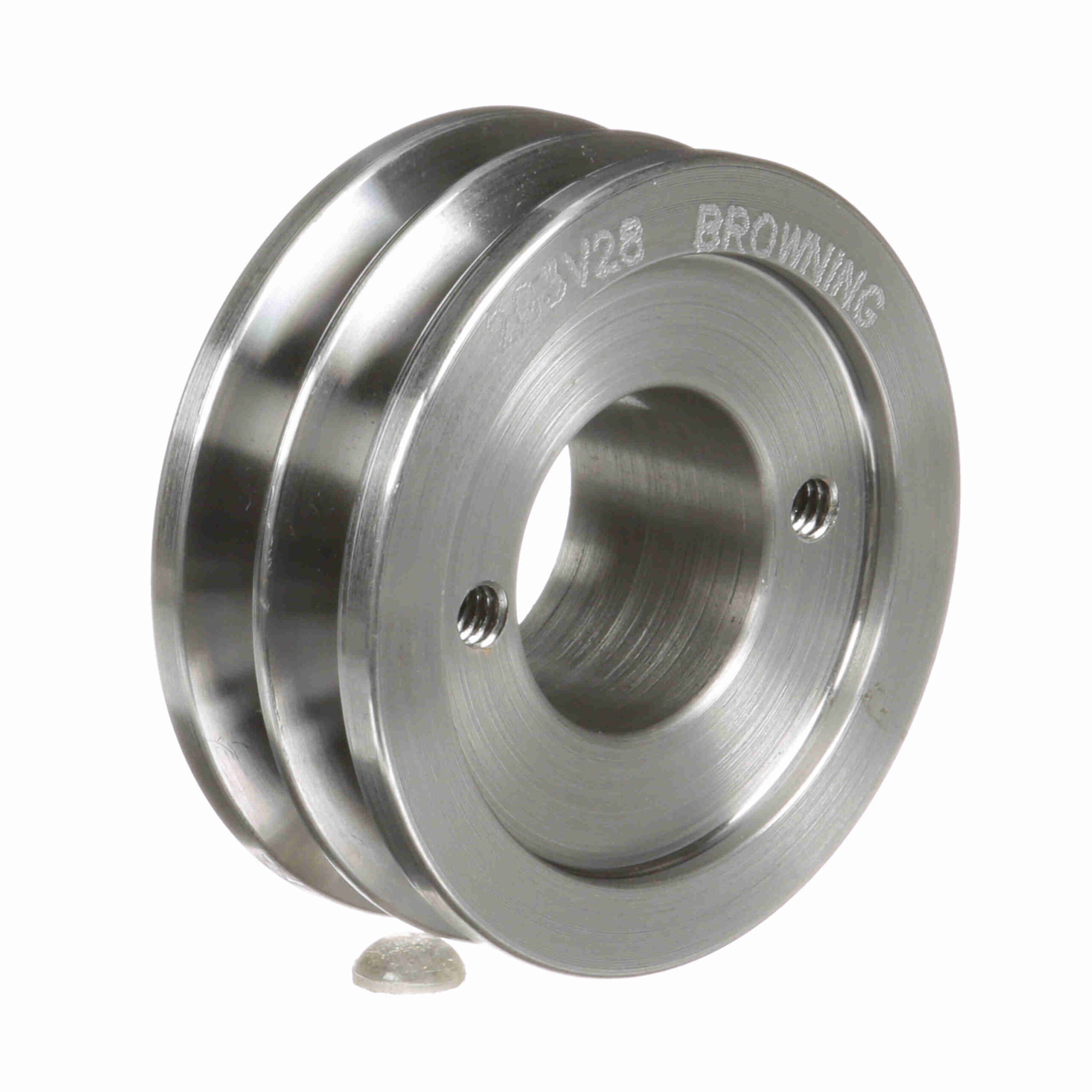

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2G3V28
$180.96
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Number of Grooves: | 2 |
|---|---|---|---|
| Outside Diameter (in): | 2.8 in | Pitch Diameter (3V): | 2.75 |
| Bushing Used: | G | Material: | Cast Iron |
| Overall Length (in): | 1.59375 in | Bore (Min) (in): | 0.375 in |
| Product Type: | Multiple Sheaves | Belt Section: | 3V |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 0.375 - 1.000 |
| Pulley Construction: | Webbed | Face Width (in): | 1.0938 |
| Overall Width (in): | 1.59375 | UPC: | 662289268764 |
| Weight: | 1.14 LB | Packaged Length: | 3.06 Inches |
| Packaged Width: | 3.06 Inches | Packaged Height: | 1.31 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
