- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3Q3V69

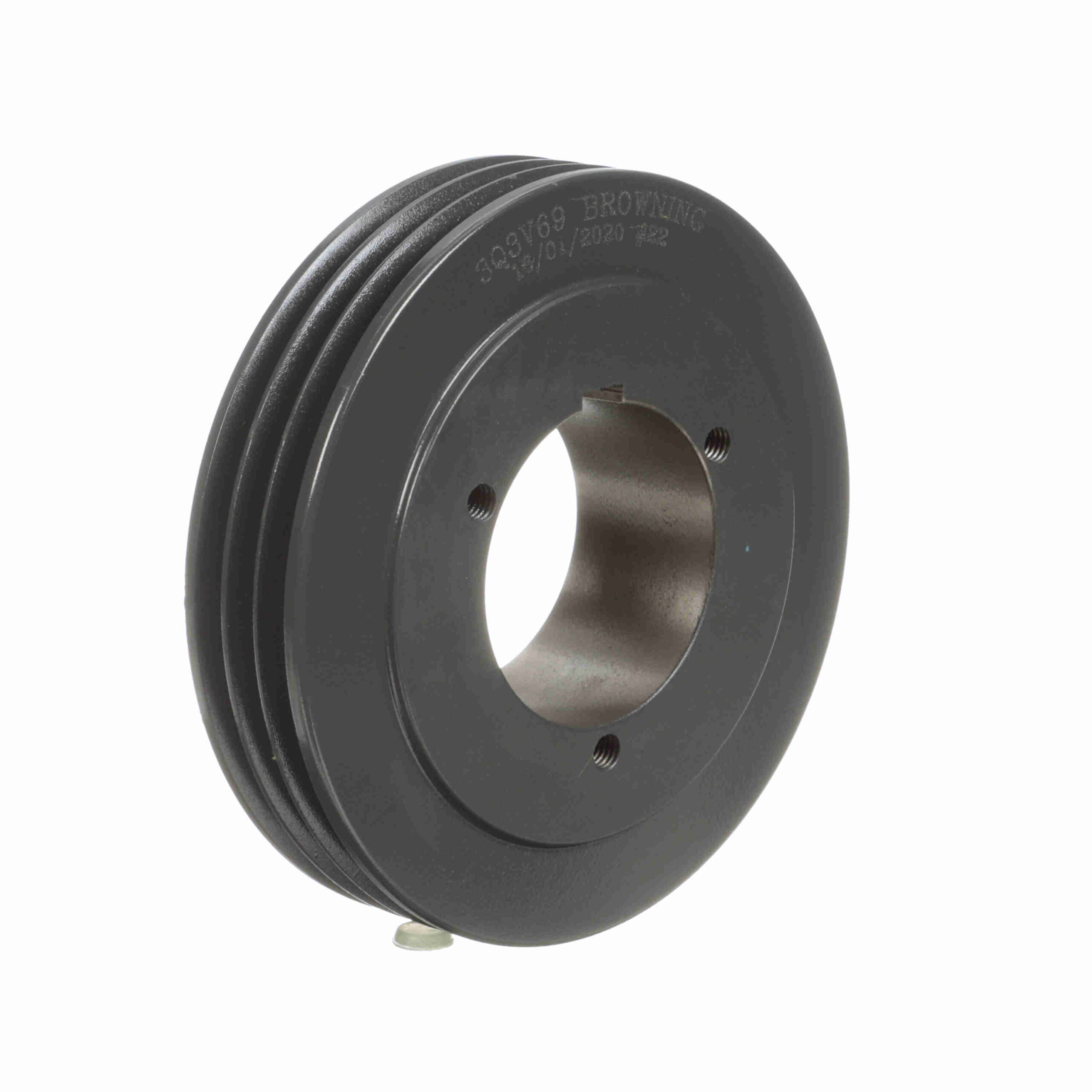

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3Q3V69
$352.96
Out of stock
Out of stock
| Bushing Used: | Q1 | Outside Diameter (in): | 6.9 in |
|---|---|---|---|
| Overall Length (in): | 2.828125 in | Number of Grooves: | 3 |
| Pulley Material: | Cast Iron | Material: | Cast Iron |
| Pitch Diameter (3V): | 6.85 | Belt Section: | 3V |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Overall Width (in): | 2.78125 |
| Pulley Construction: | Plain | Keyway Size: | .500 |
| Bushing Bore Range: | 2.6875 - 2.6875 | Face Width (in): | 1.5 |
| UPC: | 662289299980 | Weight: | 11.70 LB |
| Packaged Length: | 7.06 Inches | Packaged Width: | 7.06 Inches |
| Packaged Height: | 1.88 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
