- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R2 2 1/2

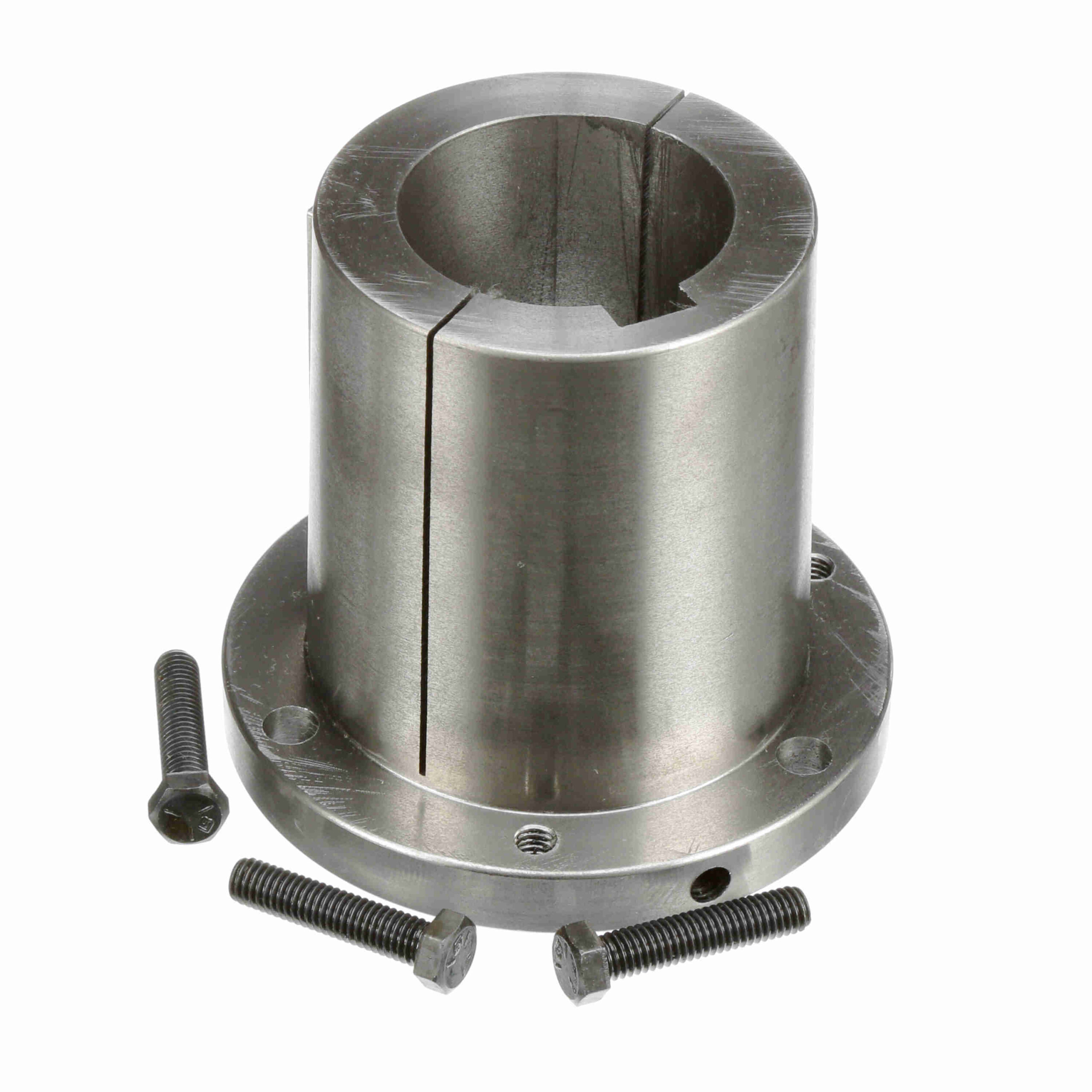

Browning Split Taper Bushing – Inch Bore Type – R2 2 1/2
$317.58
Out of stock
Out of stock
| Length Through Bore (in): | 4.875 in | Cap Screws (Size): | 3/8 x 1 3/4 |
|---|---|---|---|
| Compatible Bore Size [Max] (in): | 2.5 in | Outside Diameter (in): | 5.375 in |
| Keyseat: | 5/8 x 5/16 | Product Type: | Split Taper Bushing |
| Total Length (in): | 4.875 in | Material: | Sintered Steel or Ductile Iron |
| Wrench Torque (in-lb): | 348 | Bushing Type: | R2 |
| Bore Size (in): | 2.5 in | Model Name: | R1-R2_Type1_BushingMaster |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289201044 | Weight: | 10.40 LB |
| Packaged Length: | 6 Inches | Packaged Width: | 6 Inches |
| Packaged Height: | 5.1 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
