- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2AK104X3/4

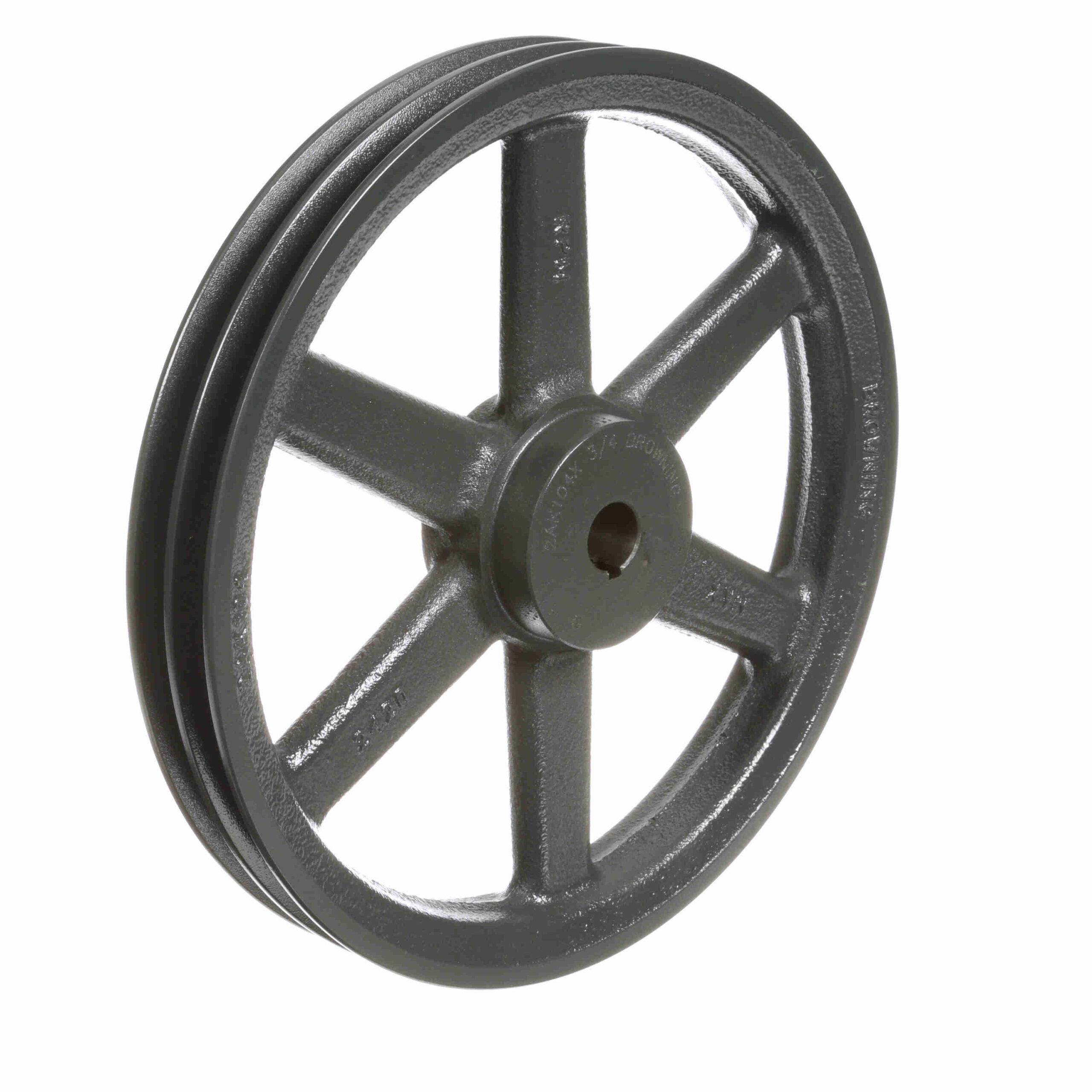

Browning 2 Groove Cast Iron FHP – Finished Bore Sheave – 2AK104X3/4
$618.97
Out of stock
Out of stock
| Outside Diameter (in): | 10.25 in | Datum (3L): | 9.66 |
|---|---|---|---|
| Pitch Diameter (A): | 10.2 | Material: | Cast Iron |
| Number of Grooves: | 2 | Bore (in): | 0.75 in |
| Product Type: | FHP - Finished Bore | Belt Section: | 4L or A, 3L |
| Bore Type: | Finished with Keyway and SS | Overall Width (in): | 1.71875 |
| Keyway Size: | .1875 | Face Width (in): | 1.375 |
| Pulley Construction: | Spoked | Set Screw Thread: | 5/16-18UNC-3AX3/8 |
| Set Screw Tightening Torque (in-lb): | 165 | UPC: | 662289100538 |
| Weight: | 4.60 LB | Packaged Length: | 6.70 Inches |
| Packaged Width: | 6.40 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
