- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
AK39X15/16

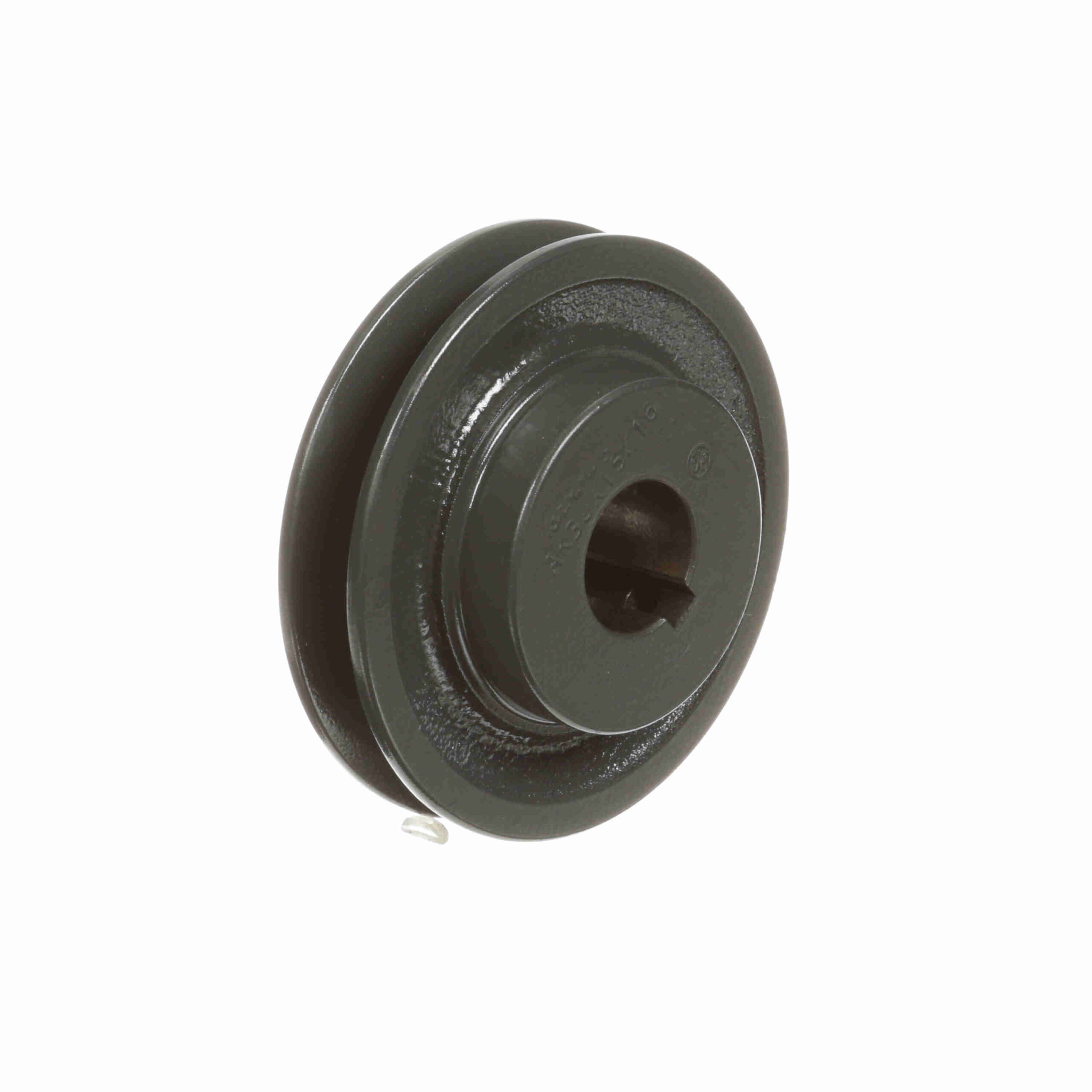

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – AK39X15/16
$104.23
Out of stock
Out of stock
| Model Name: | AK_Sheave_Master2 | Pitch Diameter (A): | 3.7 |
|---|---|---|---|
| Material: | Cast Iron | Outside Diameter (in): | 3.75 in |
| Datum (3L): | 3.16 | Number of Grooves: | 1 |
| Bore (in): | 0.9375 in | Belt Section: | 4L or A, 3L |
| Product Type: | FHP - Finished Bore | Bore Type: | Finished with Keyway and SS |
| Keyway Size: | .250 | Pulley Construction: | Webbed |
| Overall Width (in): | 1.21875 | Face Width (in): | 0.75 |
| Set Screw Tightening Torque (in-lb): | 165 | Set Screw Thread: | 5/16-18UNC-3AX3/8 |
| UPC: | 662289146352 | Weight: | 1.73 LB |
| Packaged Length: | 4.70 Inches | Packaged Width: | 4.80 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
