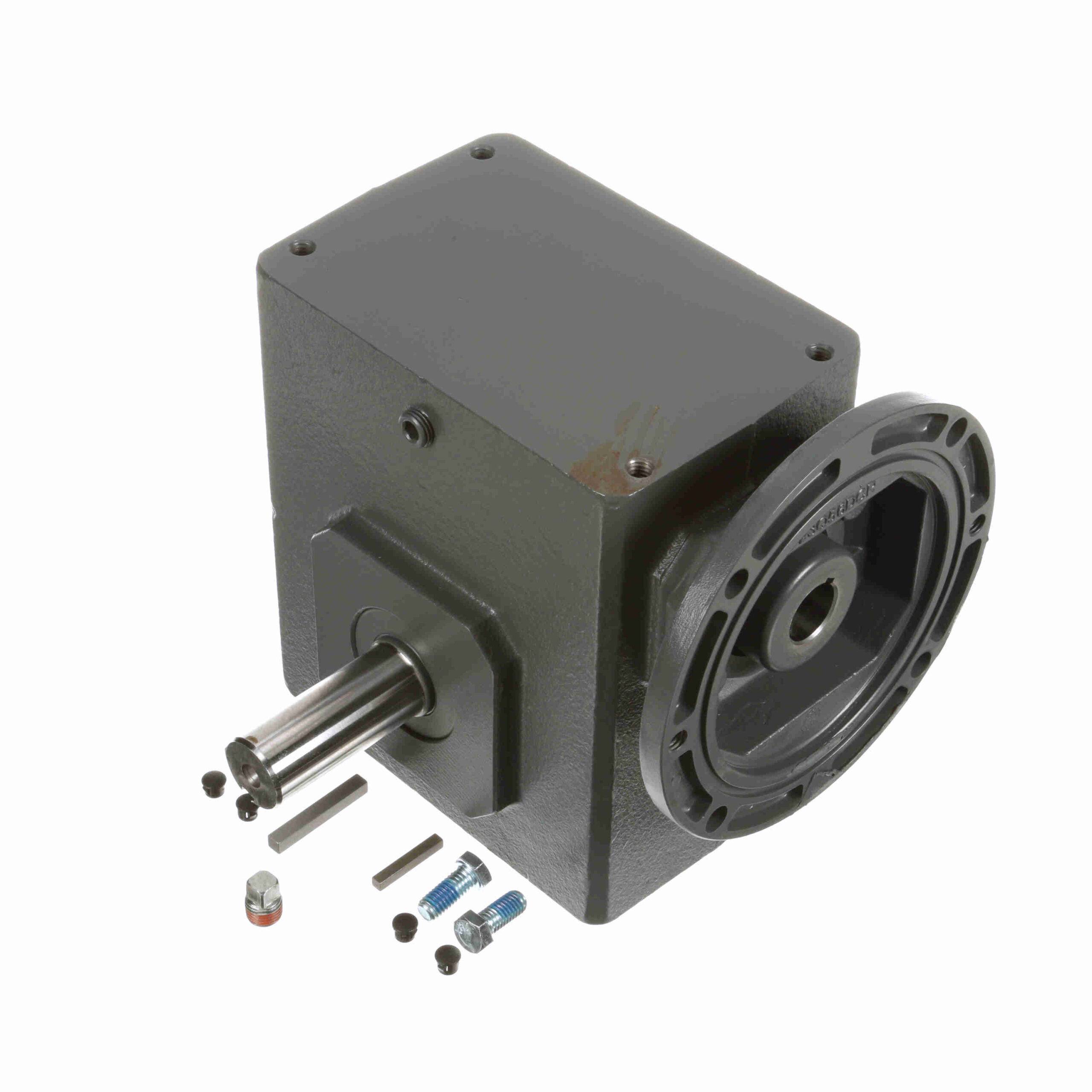

262Q140L40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Efficiency:	80	Input Keyway (C Face):	3/16 X 3/32
Reducer Style:	Standard	Ratio:	40:1
Input Speed:	1750	Input Bore (C Face):	0.875
Shaft Seal Material:	Nitrile	Motor Frame Size:	140TC
Thrust Rating - output shaft:	3096	Center Distance (in):	2.63
Frame Size:	140TC	Model Code:	262Q
Product Type:	Worm Speed Reducer	Service Factor:	1
Output Shaft Assembly Code:	L	Gear Type:	Worm
Input Style:	C-Face Quill	Output RPM:	43.7
Input RPM:	1, 750	Mounting Style:	No Base
Reducer:	Worm - Right Angle	Input HP @ 1750 RPM:	1.37
Output Key:	1/4 X 2.00	Ratio Range:	40:01:00
No. of Gear Reductions:	Single	Series Code:	Raider
Assembly:	Q-L	Input Diameter (in):	0.875 in
Output Diameter (in):	1.125 in	Output Shaft Direction:	Left
Overhung Load Rating (Output Shaft(lb)):	1, 295 lb	Output Torque Rating (in-lb):	1854 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
UPC:	6, 62288E+11	Weight:	45.48 LB
Packaged Length:	16.4 Inches	Packaged Width:	12.9 Inches
Packaged Height:	12.8 Inches
