- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
325Q140L30

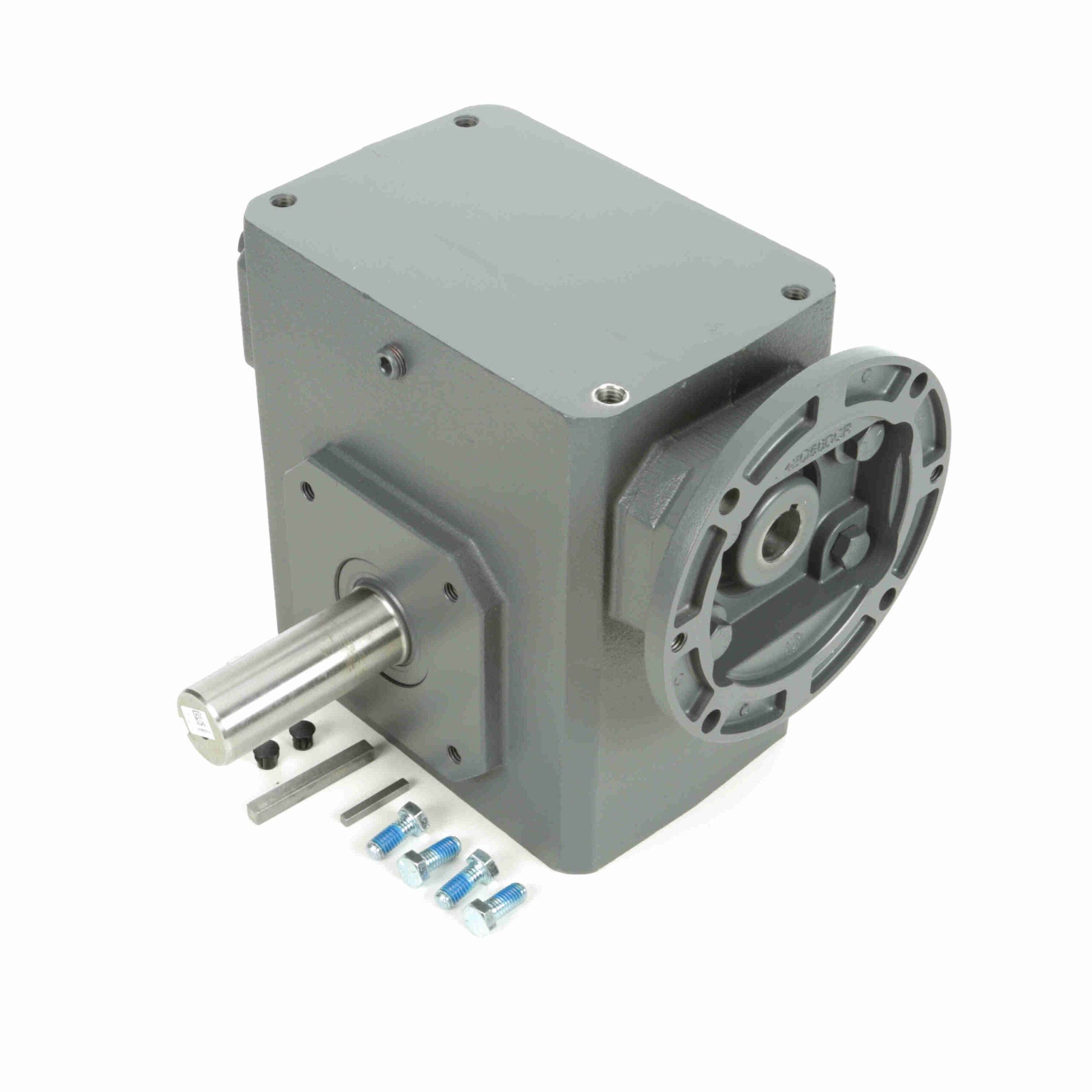

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 325Q140L30
$2,931.09
Out of stock
Out of stock
| Shaft Seal Material: | Nitrile | Thrust Rating - output shaft: | 3410 |
|---|---|---|---|
| Reducer Style: | Standard | Motor Frame Size: | 140TC |
| Efficiency: | 80 | Input Speed: | 1750 |
| Input Keyway (C Face): | 3/16 X 3/32 | Ratio: | 30:1 |
| Input Bore (C Face): | 0.875 | Center Distance (in): | 3.25 |
| Service Factor: | 1 | Input RPM: | 1, 750 |
| Output Shaft Assembly Code: | L | Output RPM: | 58.3 |
| Mounting Style: | No Base | Input Style: | C-Face Quill |
| Input HP @ 1750 RPM: | 3.14 | Product Type: | Worm Speed Reducer |
| No. of Gear Reductions: | Single | Series Code: | Raider |
| Gear Type: | Worm | Ratio Range: | 30:01:00 |
| Output Key: | 5/16 X 2.88 | Assembly: | Q-L |
| Frame Size: | 140TC | Output Diameter (in): | 1.375 in |
| Reducer: | Worm - Right Angle | Input Diameter (in): | 0.875 in |
| Model Code: | 325Q | Output Shaft Direction: | Left |
| Housing Material: | Cast Iron | Output Shaft: | Solid Shaft |
| Output Torque Rating (in-lb): | 3226 in-lbs @1750 input RPM in/lbs | Overhung Load Rating (Output Shaft(lb)): | 2, 401 lb |
| UPC: | 6, 62288E+11 | Weight: | 75.00 LB |
