- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237Q140L40

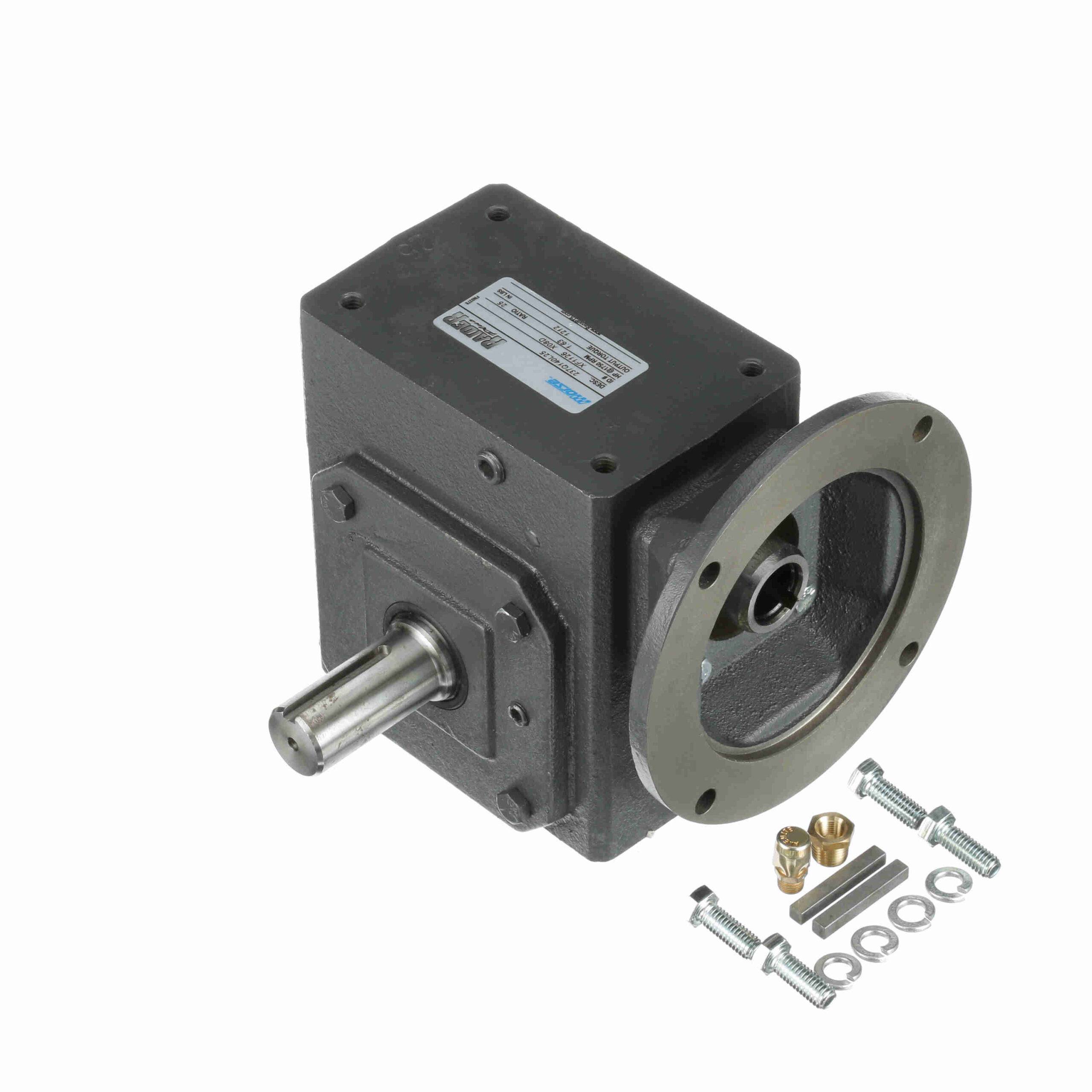

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q140L40
$1,469.59
Out of stock
Out of stock
| Input Bore (C Face): | 0.875 | Reducer Style: | Standard |
|---|---|---|---|
| Input Keyway (C Face): | 3/16x3/32 | Ratio: | 40:1 |
| Efficiency: | 80 | Thrust Rating - output shaft: | 2091 |
| Input Speed: | 1750 | Ratio Range: | 40:1 |
| Center Distance (in): | 2.38 | Service Factor: | 1 |
| Mounting Style: | No Base | Output Diameter (in): | 1.125 in |
| Gear Type: | Worm | Series Code: | Raider |
| Input Diameter (in): | 0.875 in | Input HP @ 1750 RPM: | 1.342 |
| Input Style: | C-Face Quill | Product Type: | Worm Speed Reducer |
| No. of Gear Reductions: | Single | Output Shaft Direction: | Left |
| Housing Material: | Cast Iron | Output Shaft: | Shaft |
| Overhung Load Rating (Output Shaft(lb)): | 1, 770 lb | UPC: | 6, 62461E+11 |
| Weight: | 45.00 LB |
