- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262Q140R50

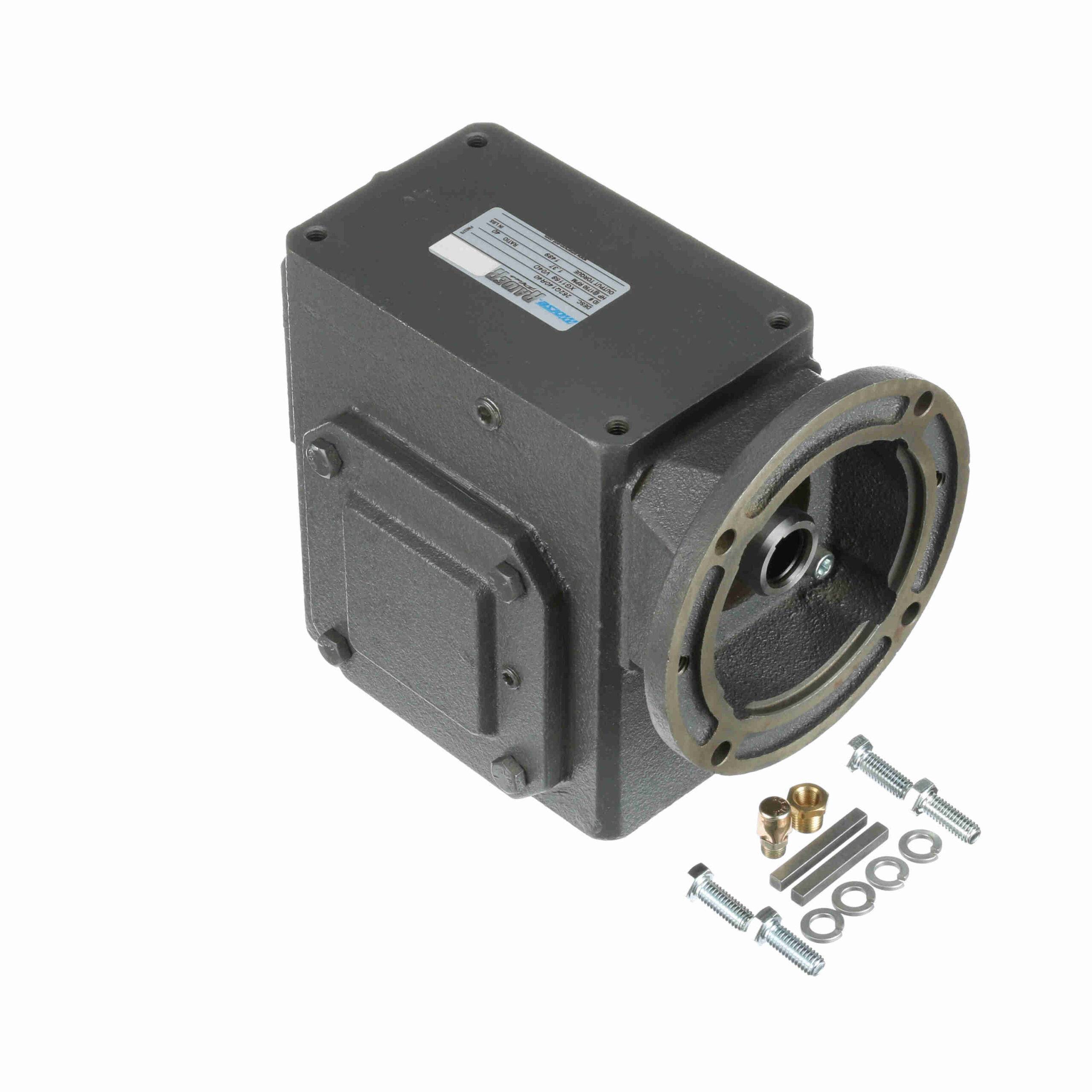

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262Q140R50
$1,922.05
Out of stock
Out of stock
| Input Bore (C Face): | 0.875 | Ratio: | 50:1 |
|---|---|---|---|
| Thrust Rating - output shaft: | 3336 | Input Speed: | 1750 |
| Shaft Seal Material: | Nitrile | Efficiency: | 80 |
| Motor Frame Size: | 140TC | Input Keyway (C Face): | 3/16 X 3/32 |
| Reducer Style: | Standard | Ratio Range: | 50:1 |
| Output RPM: | 35 | Output Diameter (in): | 1.125 in |
| No. of Gear Reductions: | Single | Input HP @ 1750 RPM: | 1.1 |
| Input Diameter (in): | 0.875 in | Gear Type: | Worm |
| Reducer: | Worm - Right Angle | Input Style: | C-Face Quill |
| Product Type: | Worm Speed Reducer | Model Code: | 262Q |
| Assembly: | Q-R | Input RPM: | 1, 75 |
| Output Key: | 1/4 X 2.00 | Center Distance (in): | 2.63 |
| Mounting Style: | No Base | Service Factor: | 1 |
| Series Code: | Raider | Output Shaft Assembly Code: | R |
| Frame Size: | 140TC | Output Shaft Direction: | Right |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 1843 in-lbs @1750 input RPM in/lbs |
| Overhung Load Rating (Output Shaft(lb)): | 1, 295 lb | Output Shaft: | Solid Shaft |
| UPC: | 6, 62288E+11 | Weight: | 56.00 LB |
