- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
25 C/L S/C S/F

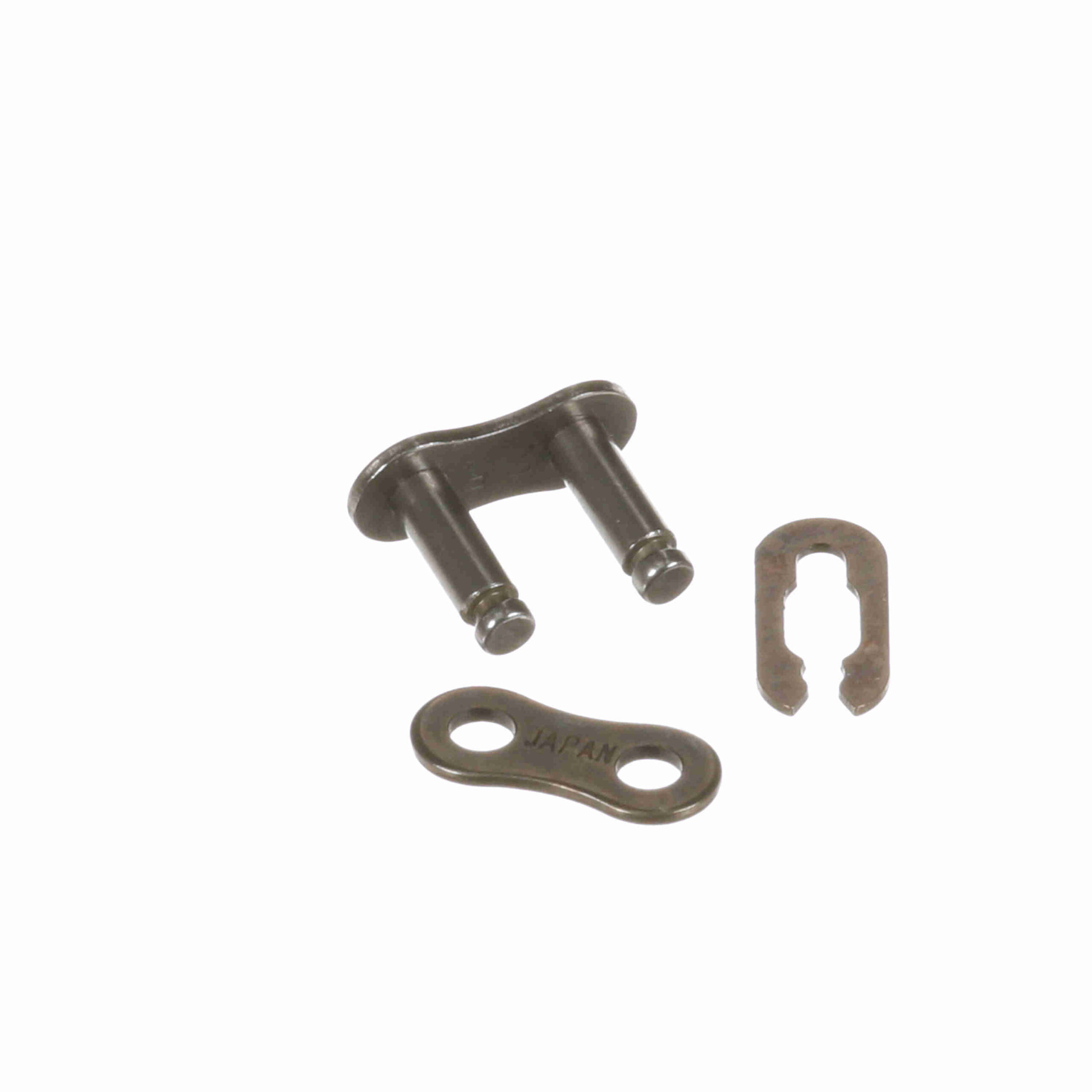

Morse Standard Roller Chain Spring Clip Connecting Link – 25 C/L S/C S/F
$1.66
Out of stock
Out of stock
| Number of Connecting Links Included: | 1 | Average Ultimate Tensile Strength (psi): | 875 |
|---|---|---|---|
| Pin Diameter (in): | 0.0905 in | Inside Plate Height: | 0.234 |
| Chain Size: | 25 | Plate Thickness: | 0.03 |
| Width Over Pins/Total Width: | 0.312 | Roller Width (in): | 0.125 in |
| Side Plate Cfg.: | Hourglass | Connecting Link - Slip Fit: | Spring Clip |
| Centerline to Outside of cotter Pin: | 0.188 | Number of Strands/Width: | 1 |
| Centerline to Opposite cotter Pin Side: | 0.156 | Material: | Steel |
| Roller Diameter (in): | 0.13 in | Chain Type: | Standard |
| Product Type: | Roller Chain | Chain Pitch (in): | 0.25 in |
| Coating: | Uncoated | Total Length: | N/A ft |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 0.312 | UPC: | 662460388748 |
| Weight: | 0.01 LB | Packaged Length: | 1.25 Inches |
| Packaged Width: | 2.95 Inches | Packaged Height: | 0.20 Inches |
| HTC: | 7315.19.0000 | Country of Origin: | Japan |
