- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
23230 CA W33

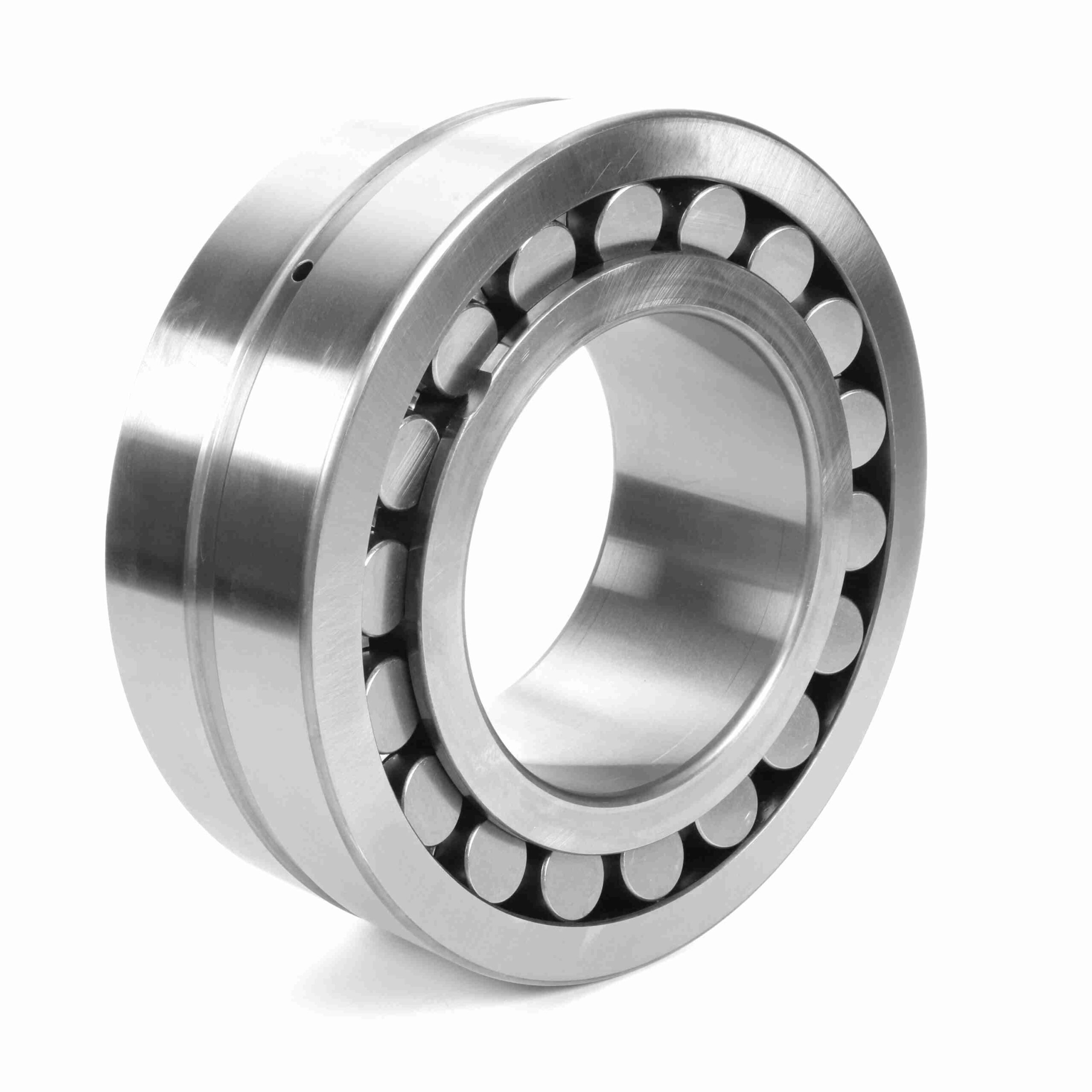

Rollway Radial Spherical Roller Bearing – Straight Bore – 23230 CA W33
$1,872.51
Out of stock
Out of stock
| Angular Misalignment: | 2.5° | Cage Material: | Brass |
|---|---|---|---|
| Bore Type: | Straight | Series: | 23200 |
| Radial Clearance: | C0 | Seal Type: | Unsealed |
| Misalignment: | Yes | Material: | 52100 Bearing Steel |
| Number of Rows: | 2 | Static Load Rating (kN): | 925 kN |
| Rolling Element: | Spherical Roller | Platform: | Spherical Radial |
| Duplexing: | No | Sealed: | None |
| Speed (Max) Oil (RPM): | 1, 300 rpm | Speed (Max) Grease (RPM): | 980 rpm |
| Full Complement/Caged: | Caged | Dynamic Load Rating (kN): | 925 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410069473 |
| Weight: | 52.91 LB | Packaged Length: | 10.63 Inches |
| Packaged Width: | 3.78 Inches | Packaged Height: | 10.63 Inches |
| Country of Origin: | China |
