- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Nylaplate® seal on both sides
- Greater than standard internal clearance
SB 22211 C3 W33 SS
McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22211 C3 W33 SS
$274.99
Availability: 6 in stock
Availability: 6 in stock
| Series: | 22200 | Seal Type: | Single Seal |
|---|---|---|---|
| Cage Material: | Steel | Rolling Element: | Spherical Roller |
| Number of Rows: | 1 | Bore Type: | Straight |
| Angular Misalignment: | 2° | Misalignment: | Yes |
| Radial Clearance: | C3 | Material: | 52100 Bearing Steel |
| Sealed: | Sealed - Both Sides | Duplexing: | No |
| Full Complement/Caged: | Caged | Speed (Max) Grease (RPM): | 1, 325 rpm |
| Platform: | SPHERE-ROL® | Speed (Max) Oil (RPM): | 4, 650 rpm |
| Outer Ring Type: | Not split | Precision Rating: | P0, ISO 15-2015 |
| Finish/Coating: | Uncoated | Lubrication Hole Type: | Lubrication Groove & Hole |
| Dynamic Load Rating (kN): | 103 kN | Mounting Method: | Shaft Mount |
| Maximum Operating Temperature (F): | 300 °F | Operating Temperature Range (F): | -30 to 300 °F °F |
| UPC: | 726166004101 | Weight: | 1.76 LB |
| Packaged Length: | 5.06 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 5.06 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
Related products

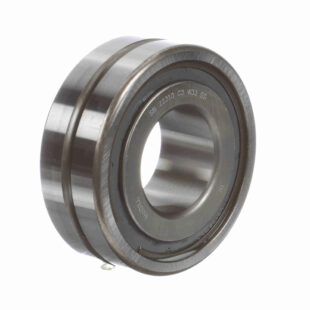

SB 22310 C3 W33 SS
