- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Nylaplate® seal on both sides
- Standard internal clearance
SB 22207 W33 SS

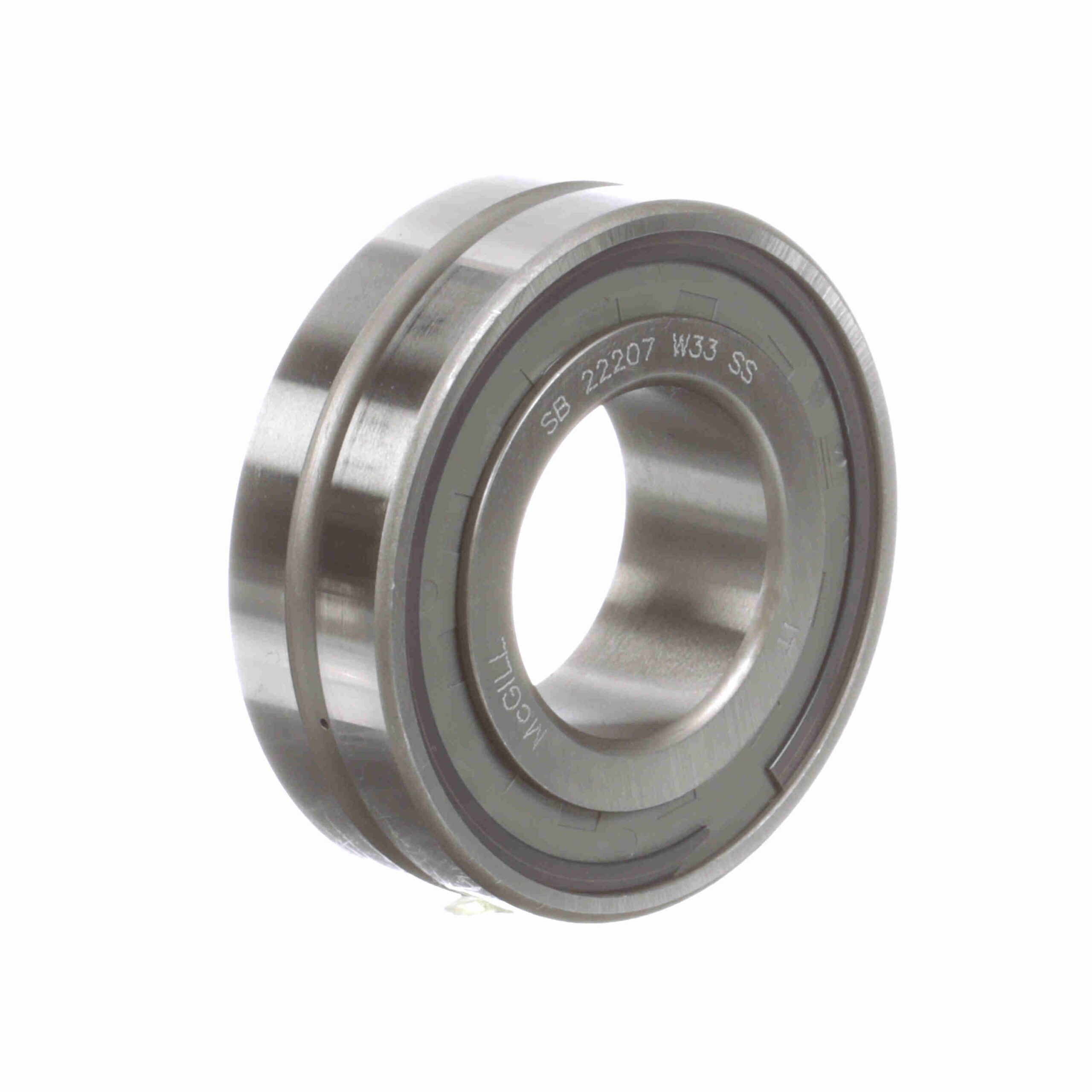

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22207 W33 SS
$189.23
Out of stock
Out of stock
| Series: | 22200 | Seal Type: | Single Seal |
|---|---|---|---|
| Cage Material: | Steel | Bore Type: | Straight |
| Material: | 52100 Bearing Steel | Misalignment: | Yes |
| Number of Rows: | 1 | Angular Misalignment: | 2° |
| Rolling Element: | Spherical Roller | Radial Clearance: | C0 |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Platform: | SPHERE-ROL® | Speed (Max) Grease (RPM): | 3, 400 rpm |
| Sealed: | Sealed - Both Sides | Speed (Max) Oil (RPM): | 6, 800 rpm |
| Precision Rating: | P0, ISO 15-2008 | Finish/Coating: | Uncoated |
| Lubrication Hole Type: | Lubrication Groove & Hole | Outer Ring Type: | Not Split |
| Dynamic Load Rating (kN): | 67.6 kN | Mounting Method: | Shaft Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166002121 | Weight: | 0.93 LB |
| Packaged Length: | 3.63 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 3.66 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
