- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Nylaplate® seal on both sides
- Standard internal clearance
SB 22209 W33 SS

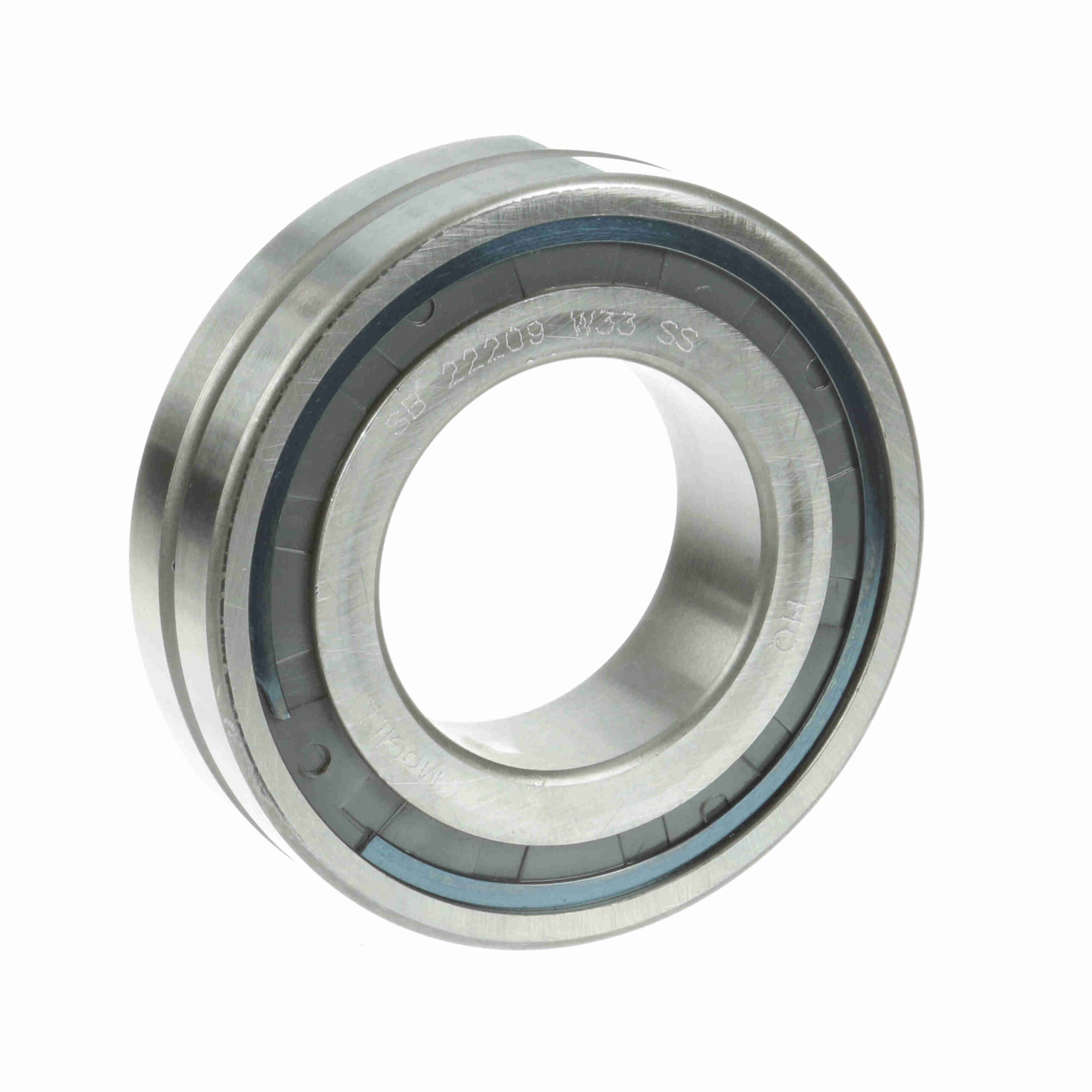

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22209 W33 SS
$233.39
Availability: 7 in stock
Availability: 7 in stock
| Series: | 22200 | Seal Type: | Single Seal |
|---|---|---|---|
| Cage Material: | Steel | Radial Clearance: | C0 |
| Bore Type: | Straight | Angular Misalignment: | 2° |
| Material: | 52100 Bearing Steel | Misalignment: | Yes |
| Number of Rows: | 1 | Rolling Element: | Spherical Roller |
| Speed (Max) Oil (RPM): | 5, 600 rpm | Speed (Max) Grease (RPM): | 2, 800 rpm |
| Sealed: | Sealed - Both Sides | Duplexing: | No |
| Full Complement/Caged: | Caged | Platform: | SPHERE-ROL® |
| Precision Rating: | P0, ISO 15-2008 | Outer Ring Type: | Not Split |
| Lubrication Hole Type: | Lubrication Groove & Hole | Finish/Coating: | Uncoated |
| Dynamic Load Rating (kN): | 79.7 kN | Mounting Method: | Shaft Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166003159 | Weight: | 1.22 LB |
| Packaged Length: | 3.63 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 3.66 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
