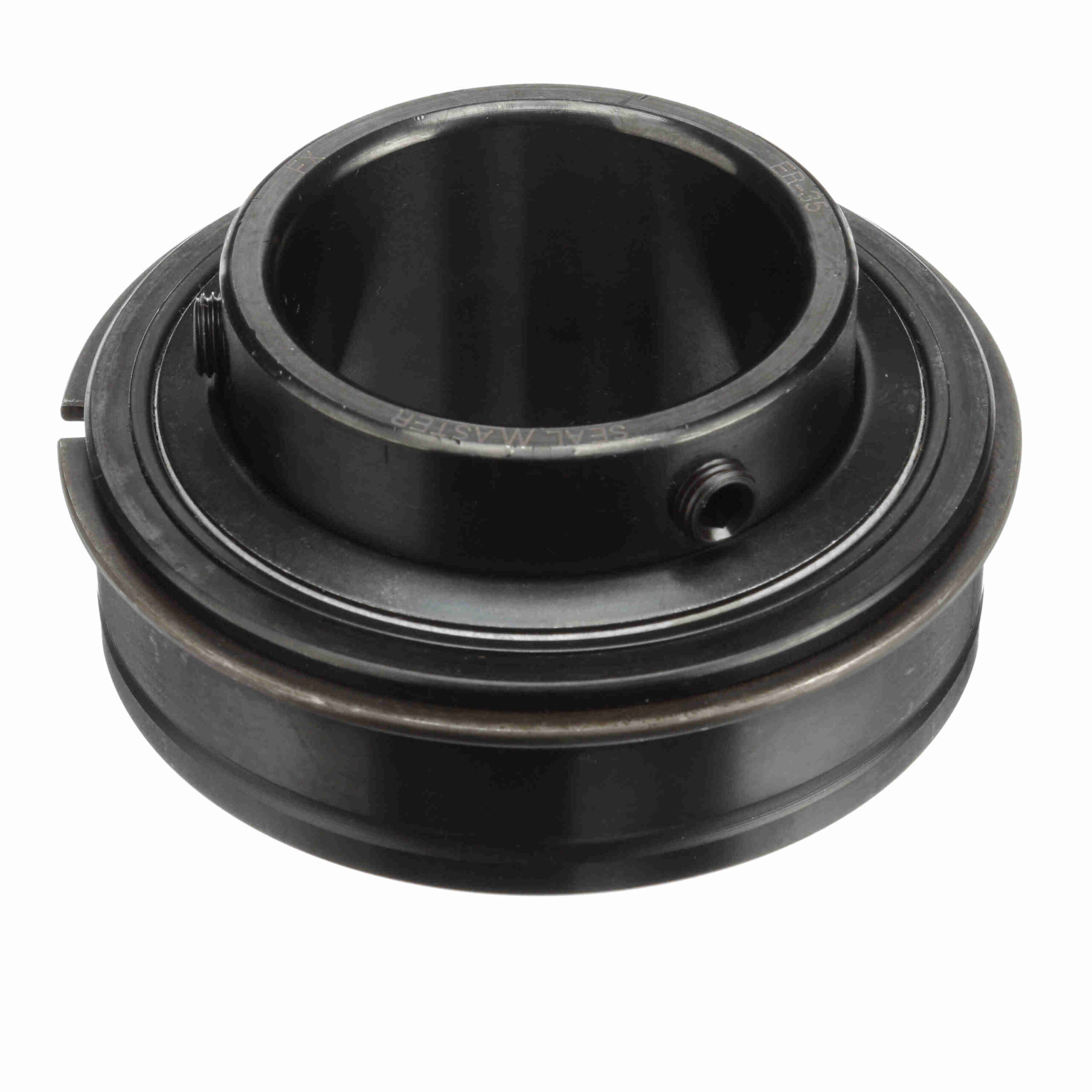

ER-35

ER style cylindrical OD bearing with snap and with black oxided bearing rings
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Inner-Race Heat-Treat Method:	Zone-Hardened	Retainer Type:	Land Riding Retainer
Radius:	0.08	Rolling Element:	Ball Bearing
Seal Type:	Felt Labyrinth Seal	Insert Material:	52100 Bearing Steel; Black Oxided
Bore Shape:	Straight	Measure Units:	Inch
Maximum Operating Temperature:	220 °F	Housing Type:	Insert (ER Style)
Duty Series:	Standard	Set Screw Thread:	3/8-24 UNF X .31
Locking Type:	Setscrew	Misalignment:	None
Relubricatable:	Yes	Expansion:	No
Internal Clearance:	Standard	Lubrication:	Lithium Complex NLGI 2 Grease
Radial Dynamic Load Capacity (lb):	9, 752	Speed (Max):	3250
End Cap:	No	Platform:	Gold Line Ball Bearing
Outer Ring Land Profile:	Tapered Lands	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	Radial Static Load Capacity (lb):	6, 601
Series:	ER	Cage Material:	PPS
Precision Rating:	ABEC 1	Outer Race Profile:	Cylindrical
Inner Race Profile:	Wide Inner Ring	UPC:	662461008799
Weight:	2.77 LB	Packaged Length:	4.25 Inches
Packaged Width:	2.25 Inches	Packaged Height:	4.25 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
