- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22216 GMEX W33

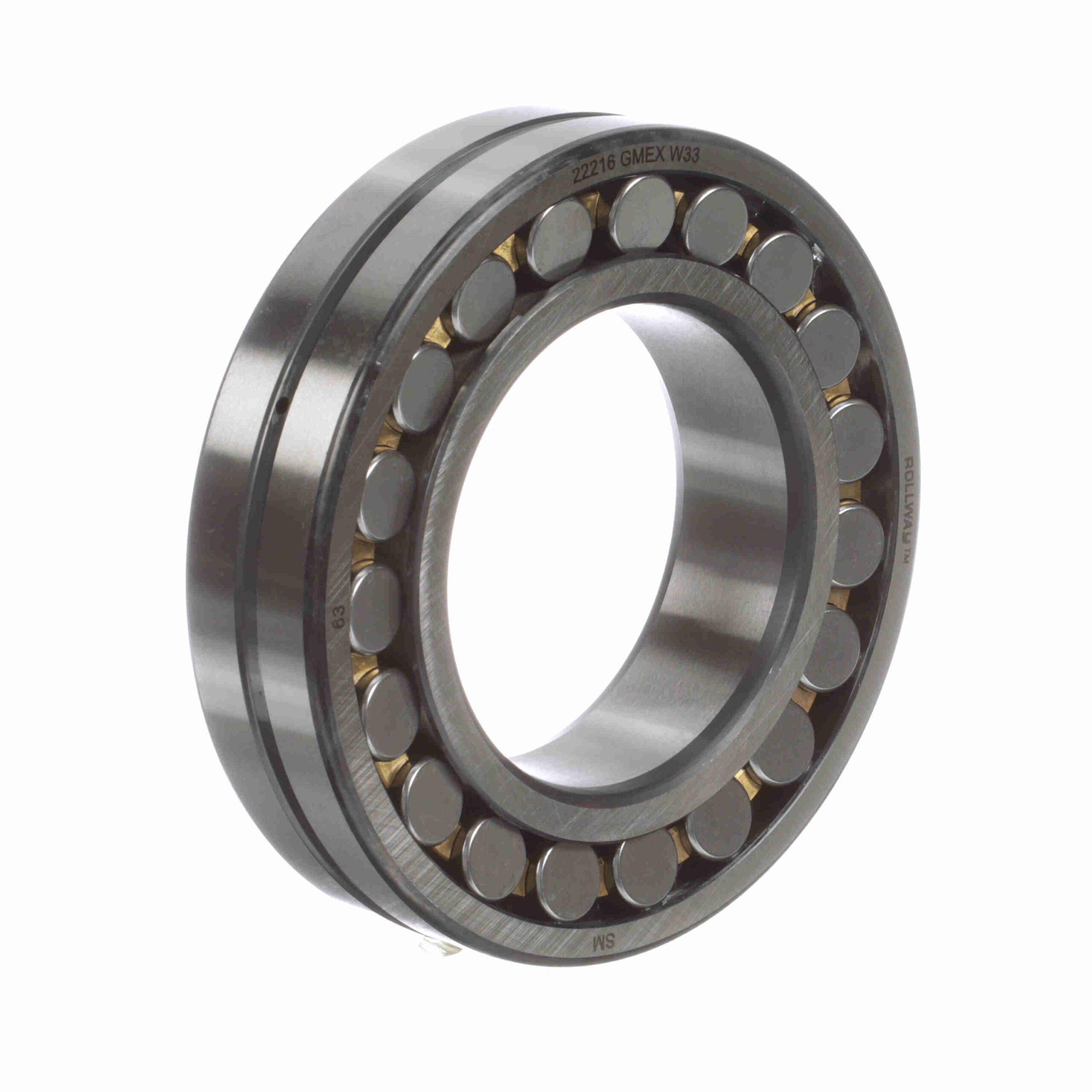

Rollway Radial Spherical Roller Bearing – Straight Bore – 22216 GMEX W33
$281.43
Availability: 15 in stock
Availability: 15 in stock
| Radial Clearance: | C0 | Bore Type: | Straight |
|---|---|---|---|
| Cage Material: | Brass | Angular Misalignment: | 1.5° |
| Series: | 22200 | Seal Type: | Unsealed |
| Static Load Rating (kN): | 229.2 kN | Rolling Element: | Spherical Roller |
| Material: | 52100 Bearing Steel | Misalignment: | Yes |
| Number of Rows: | 2 | Platform: | Spherical Radial |
| Sealed: | None | Full Complement/Caged: | Caged |
| Speed (Max) Oil (RPM): | 5, 100 rpm | Duplexing: | No |
| Speed (Max) Grease (RPM): | 3, 655 rpm | Dynamic Load Rating (kN): | 229.2 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092273 |
| Weight: | 4.68 LB | Packaged Length: | 6 Inches |
| Packaged Width: | 6.1 Inches | Packaged Height: | 1.5 Inches |
| Country of Origin: | China |
