- 22300 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Lambda® seal on both sides
- Standard internal clearance
SB 22308 W33 YSS

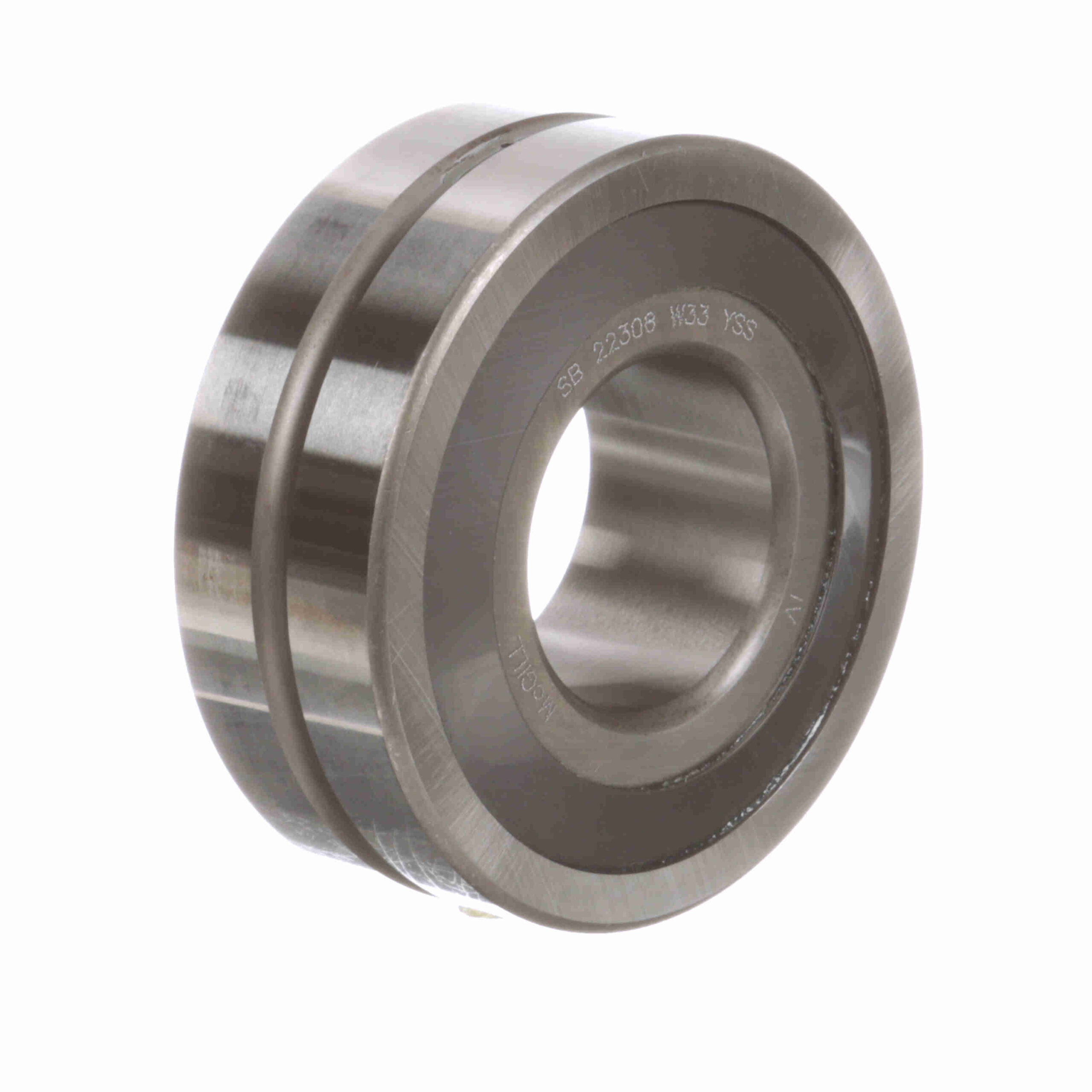

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22308 W33 YSS
$370.59
Out of stock
Out of stock
| Seal Type: | Double Seal | Series: | 22300 |
|---|---|---|---|
| Cage Material: | Steel | Material: | 52100 Bearing Steel |
| Radial Clearance: | C0 | Bore Type: | Straight |
| Misalignment: | Yes | Angular Misalignment: | 1° |
| Number of Rows: | 1 | Rolling Element: | Spherical Roller |
| Speed (Max) Oil (RPM): | 5, 250 rpm | Full Complement/Caged: | Caged |
| Platform: | SPHERE-ROL® | Sealed: | Sealed - Both Sides |
| Duplexing: | No | Speed (Max) Grease (RPM): | 2, 625 rpm |
| Precision Rating: | P0, ISO 15-2008 | Finish/Coating: | Uncoated |
| Outer Ring Type: | Not Split | Lubrication Hole Type: | Lubrication Groove & Hole |
| Dynamic Load Rating (kN): | 114.7 kN | Mounting Method: | Shaft Mount |
| Maximum Operating Temperature (F): | 300 °F | Operating Temperature Range (F): | -30 to 300 °F °F |
| UPC: | 726166009502 | Weight: | 2.30 LB |
| Packaged Length: | 4.06 Inches | Packaged Width: | 2.5 Inches |
| Packaged Height: | 4.16 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
