- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.
215SMTP25

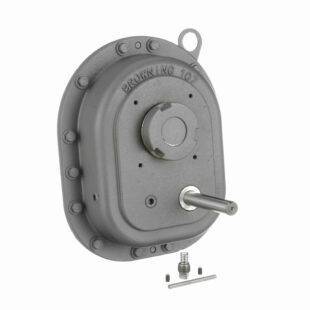

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 215SMTP25
$15,246.86
Out of stock
Out of stock
| Output Speed: | 70 | Bolt Size (in): | 0.4375 in |
|---|---|---|---|
| Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP | Product Type: | TorqTaper Plus (SMTP) |
| Ratio: | 25:1 | Efficiency: | 80 |
| Input Speed: | 1750 | Housing Height (in): | 20.88 in |
| Housing Width (in): | 16.25 in | Housing Length (in): | 10.85 in |
| Standards met: | AGMA | Maximum Output Size (in): | 2.9375 in |
| Maximum Output Bore: | 2.9375 | Gear Type: | Helical |
| Mounting Style: | Shaft mount | Reducer Size: | 215 |
| Ratio Range: | 25:1 | Input Style: | Shaft |
| Reduction: | Double | Output Bore: | Tapered Bushing |
| Drive Type: | Torque Arm | Maximum Output RPM: | 80 |
| Input Shaft Diameter: | 1.875 | Input Shaft Keyseat (in): | .500 x .500 x 3.75 in |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Output Shaft: | Tapered Bore | UPC: | 662288911715 |
| Weight: | 226.00 LB | Packaged Length: | 27.5 Inches |
| Packaged Width: | 20 Inches | Packaged Height: | 23.5 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
