- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.

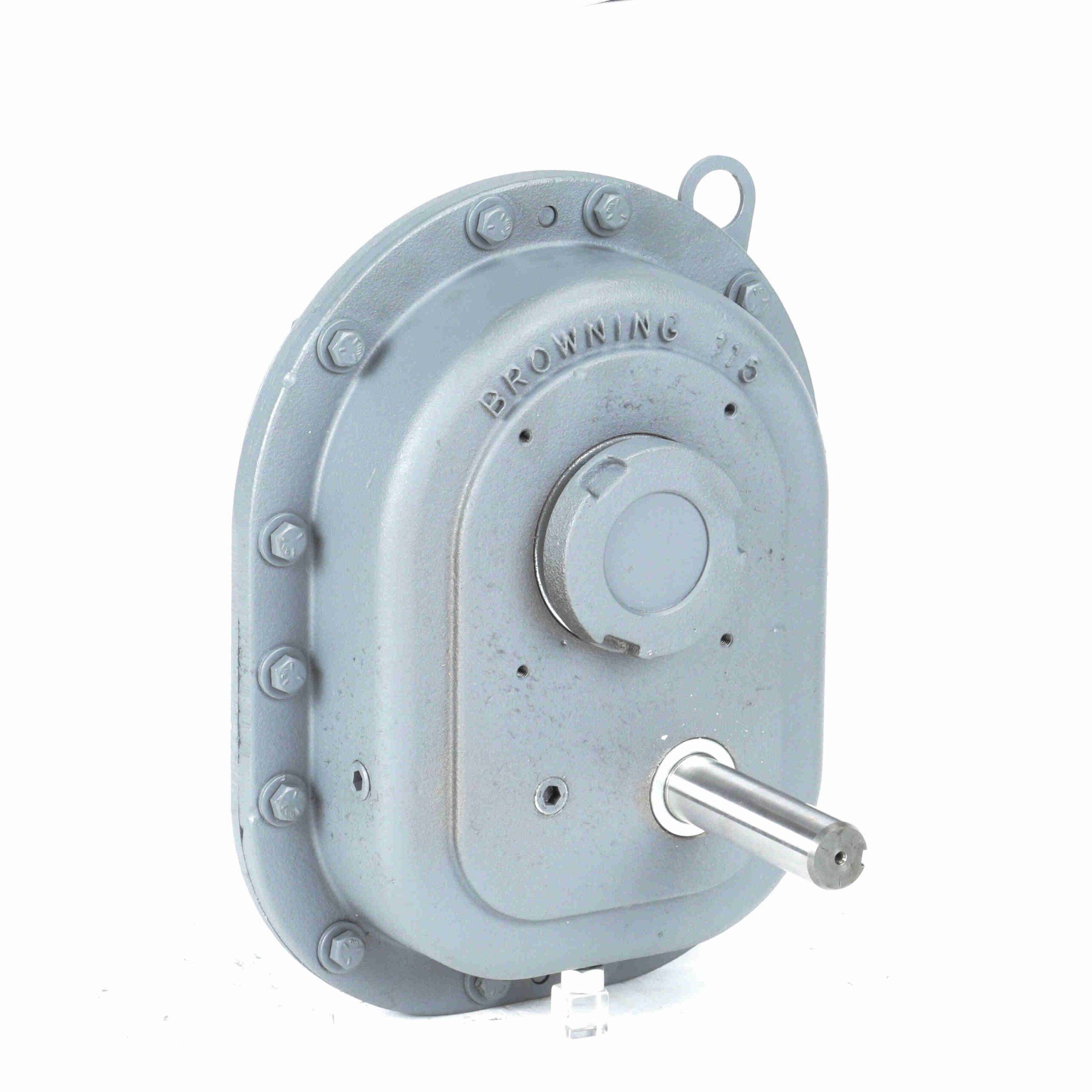

115SMTP25
Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 115SMTP25
$5,659.10
Out of stock
Out of stock
| Efficiency: | 80 | Ratio: | 25:1 |
|---|---|---|---|
| Output Speed: | 70 | Bolt Size (in): | 0.375 in |
| Product Type: | TorqTaper Plus (SMTP) | Input Speed: | 1750 |
| Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP | Housing Length (in): | 8.36 in |
| Standards met: | AGMA | Housing Height (in): | 14.08 in |
| Housing Width (in): | 11 in | Maximum Output Size (in): | 1.9375 in |
| Reducer Size: | 115 | Mounting Style: | Shaft mount |
| Ratio Range: | 25:1 | Gear Type: | Helical |
| Input Style: | Shaft | Maximum Output Bore: | 1.9375 |
| Reduction: | Double | Maximum Output RPM: | 80 |
| Drive Type: | Torque Arm | Output Bore: | Tapered Bushing |
| Input Shaft Diameter: | 1.125 | Output Shaft: | Tapered Bore |
| Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs | Housing Material: | Cast Iron |
| Input Shaft Keyseat (in): | .250 x .250 x 2.75 in | UPC: | 662288910206 |
| Weight: | 75.00 LB | Packaged Length: | 18.5 Inches |
| Packaged Width: | 13 Inches | Packaged Height: | 13.5 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
