- Browning Provides Superior RBC Drive Solutions — Built Rugged and Dependable for Minimal Maintenance and Downtime
- Split Power Path Design — Provides twice the tooth engagement when compared conventional drives.
- Leak Free Operation — Plunge ground shafts with dual lip oil seals.
- High Quality Bearings — 100,000 Hour B-10 Life at 5HP Class II Service.
415SMF148

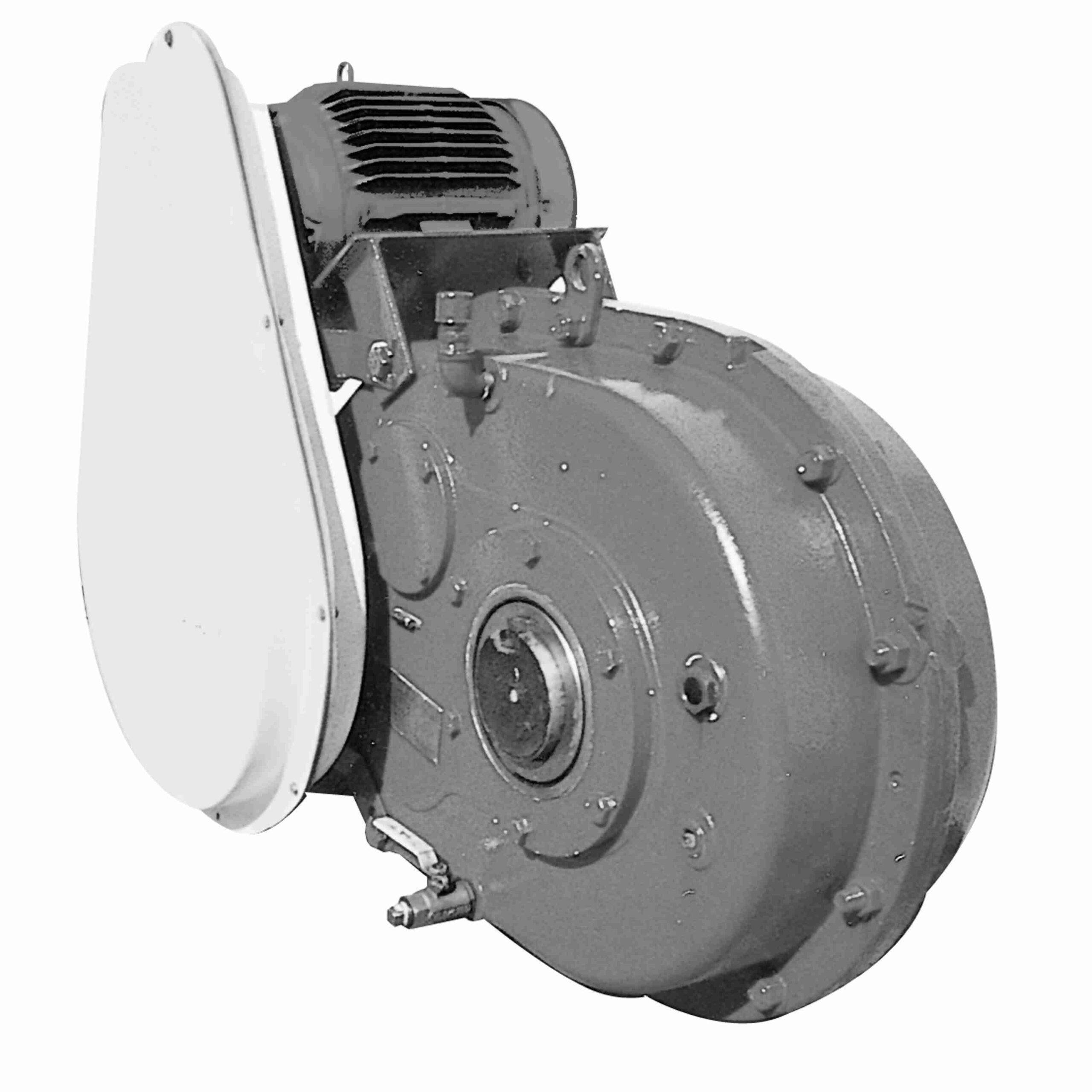

Browning Rotating Biological Contactor Drives Cast Iron Rotating Biological Contactor Drive – 415SMF148
$61,225.93
Out of stock
Out of stock
| Input Speed: | 1750 | Efficiency: | 80 |
|---|---|---|---|
| Output Speed: | 11.8243243243243 | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Ratio: | 148:1 | Reducer Size: | 415 |
| Ratio Range: | 100:1 to 250:1 | Mounting Style: | Shaft mount |
| Input Style: | Finished | Gear Type: | Helical / spur |
| Standards met: | AGMA | Housing Height (in): | 26.75 in |
| Housing Length (in): | 40.375 in | Housing Width (in): | 15.55 in |
| Output Bore: | Straight | Reduction: | Triple |
| Maximum Output RPM: | 8 | Drive Type: | Rotating Biological Contactor Drive |
| Maximum Output Size (in): | 4.9375 in | Output Torque Rating (in-lb): | 4264.02 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Shaft |
| UPC: | 662289981908 | Weight: | 1, 055.00 LB |
| Packaged Length: | 26 Inches | Packaged Width: | 32 Inches |
| Packaged Height: | 20 Inches | HTC: | 8483.40.1000 |
| Country of Origin: | United States of America |
