- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement..
- Options and Accessories: Complete range of motor mounts, belt guards, backstops.
207SMFP25

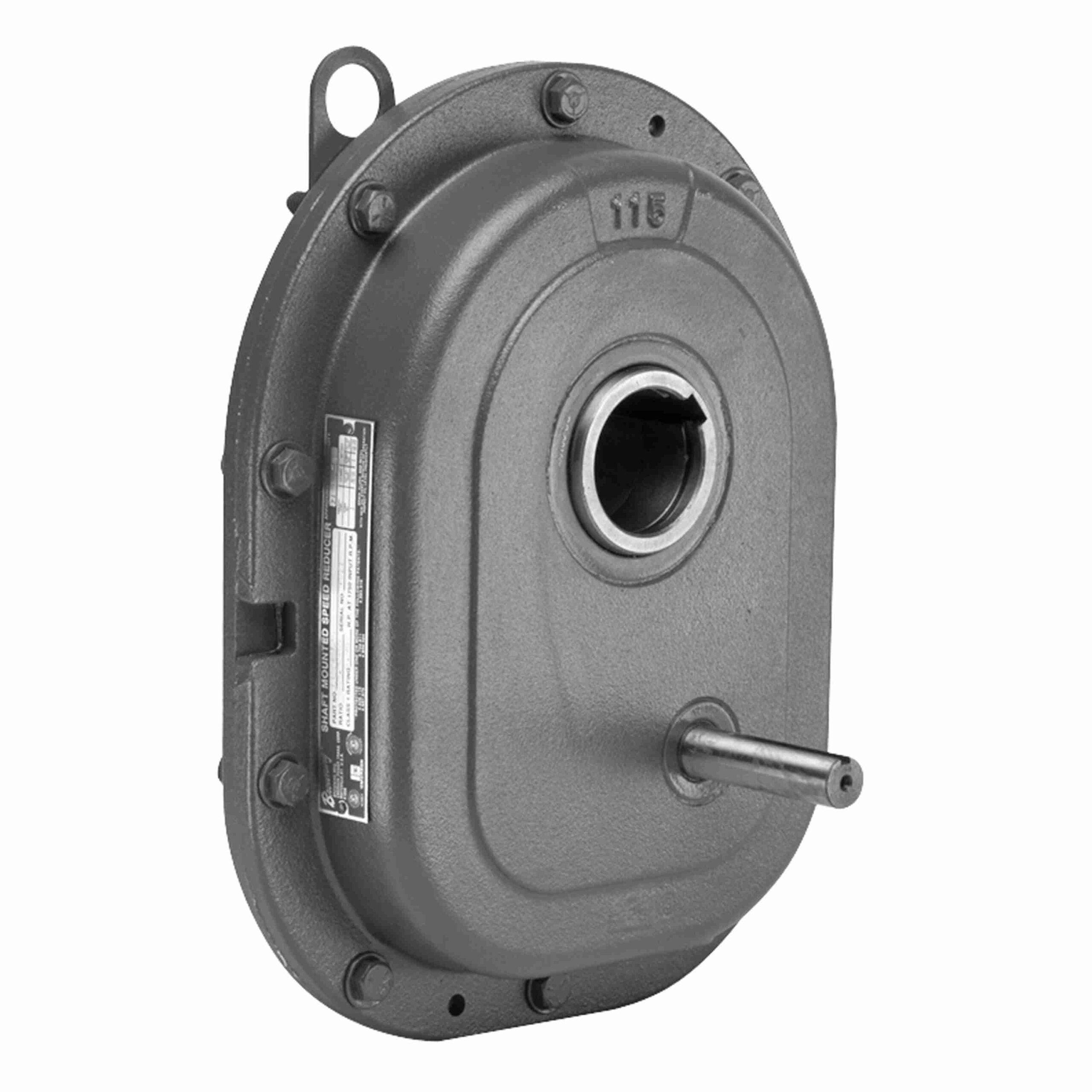

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Finished Bore Reducer – 207SMFP25
$9,631.35
Out of stock
Out of stock
| Input Speed: | 1750 | Product Type: | Finished Bore Plus (SMFP) |
|---|---|---|---|
| Ratio: | 25:1 | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Output Speed: | 70 | Efficiency: | 80 |
| Housing Height (in): | 18.47 in | Housing Width (in): | 14.5 in |
| Housing Length (in): | 8.77 in | Standards met: | AGMA |
| Input Style: | Shaft | Mounting Style: | Shaft mount |
| Bolt Size (in): | 0.4375 in | Reducer Size: | 207 |
| Gear Type: | Helical | Ratio Range: | 25:1 |
| Output Diameter (in): | 2.438 in | Maximum Output Size (in): | 2.4375 in |
| Drive Type: | Torque Arm | Output Bore: | Tapered Bushing |
| Maximum Output RPM: | 80 | Reduction: | Double |
| Output Bore Keyway (in): | .625 x .187 in | Output Torque Rating (in-lb): | 720.27 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Input Shaft Keyseat (in): | .375 x .375 x 3.75 in | Housing Material: | Cast Iron |
| Output Shaft: | Hollow Bore | UPC: | 662460491783 |
| Weight: | 153.00 LB | Packaged Length: | 22.5 Inches |
| Packaged Width: | 18.5 Inches | Packaged Height: | 16.5 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
