- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
21308 GMEX C3 W33

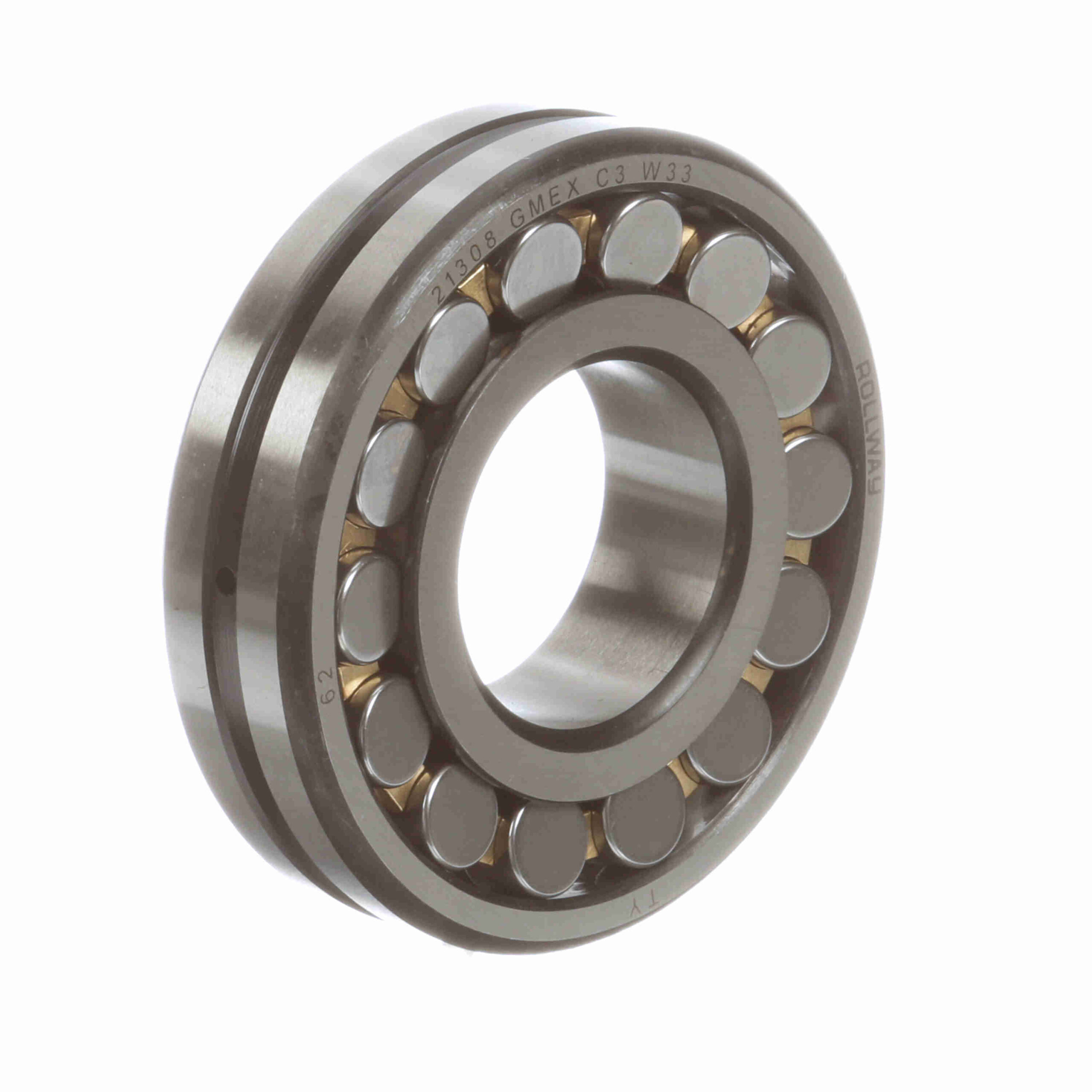

Rollway Radial Spherical Roller Bearing – Straight Bore – 21308 GMEX C3 W33
$162.79
Out of stock
Out of stock
| Cage Material: | Brass | Angular Misalignment: | 1° |
|---|---|---|---|
| Series: | 21300 | Bore Type: | Straight |
| Radial Clearance: | C3 | Seal Type: | Unsealed |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Number of Rows: | 2 | Static Load Rating (kN): | 103 kN |
| Material: | 52100 Bearing Steel | Speed (Max) Oil (RPM): | 8, 075 rpm |
| Sealed: | None | Platform: | Spherical Radial |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Speed (Max) Grease (RPM): | 5, 950 rpm | Dynamic Load Rating (kN): | 103 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410091795 |
| Weight: | 1.62 LB | Packaged Length: | 4.2 Inches |
| Packaged Width: | 3.8 Inches | Packaged Height: | 1.4 Inches |
| Country of Origin: | China |
